Description

Price

1

COVER, DOUBLE SEAT

(867-24731-00-00)

Unavailable

1

DOUBLE SEAT ASSEMBLY

(898-24730-00-00)

Unavailable

2

BAND, SEAT

867-24734-00-00

Unavailable

3

SCREW, BIND

98903-08012-00

Unavailable

4

COLLAR 3

700-48183-10-00

Unavailable

5

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

6

WASHER(6TC)

92907-08200-00

$8.49

7

BOLT, HEXAGON

97017-06012-00

$3.76

8

WASHER, SPRING

92907-06100-00

$4.25

9

WASHER, PLATE 8221447500

90201-06057-00

$5.60

10

EMBLEM 2

821-77352-00-00

Unavailable

11

TOOL KIT

(821-28100-10-00)

Unavailable

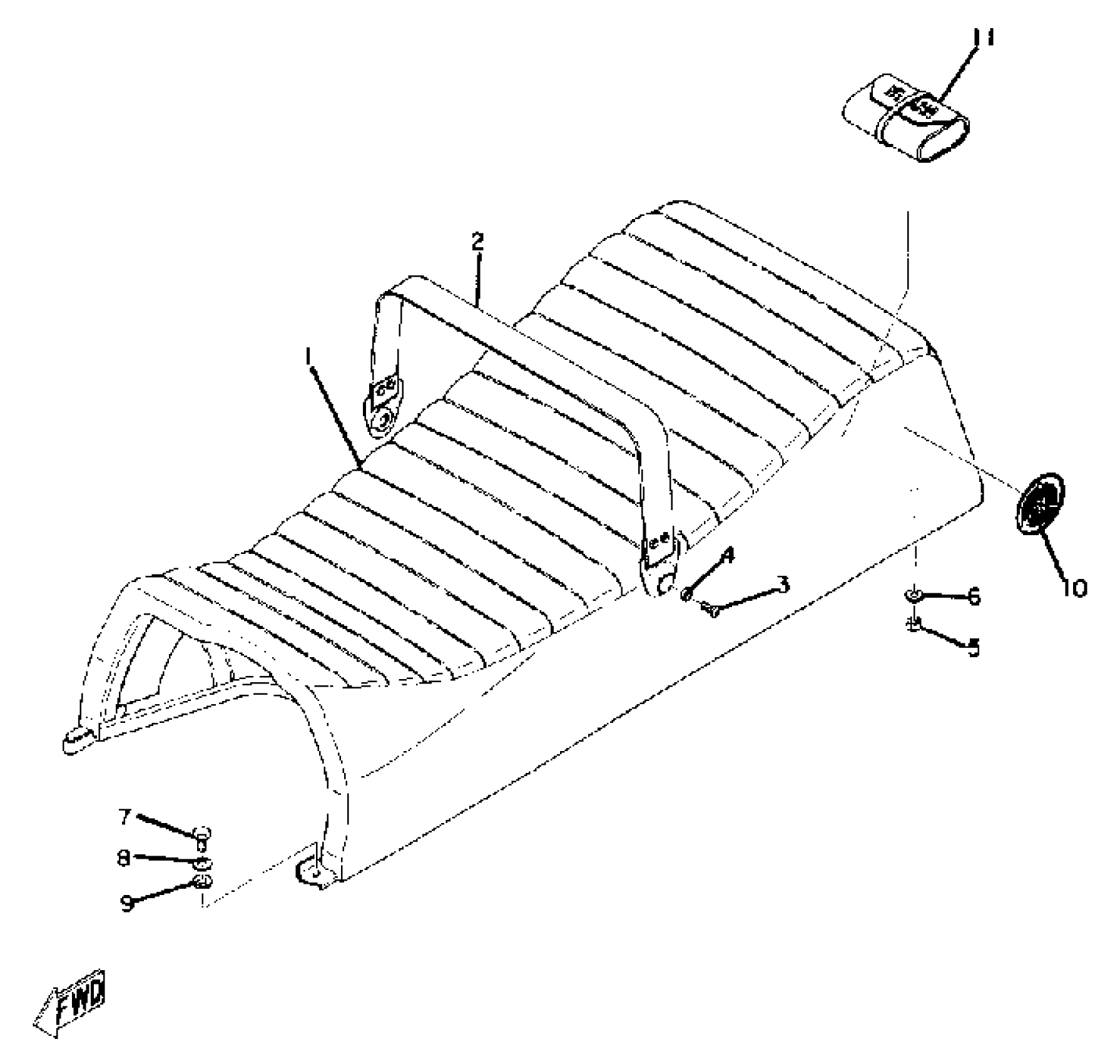

Yamaha GP292F 1974 SEAT Diagram

COVER, DOUBLE SEAT

DOUBLE SEAT ASSEMBLY

BAND, SEAT

SCREW, BIND

COLLAR 3

NUT, SELF-LOCKING (3Y2)

WASHER(6TC)

BOLT, HEXAGON

WASHER, SPRING

WASHER, PLATE 8221447500

EMBLEM 2

TOOL KIT
