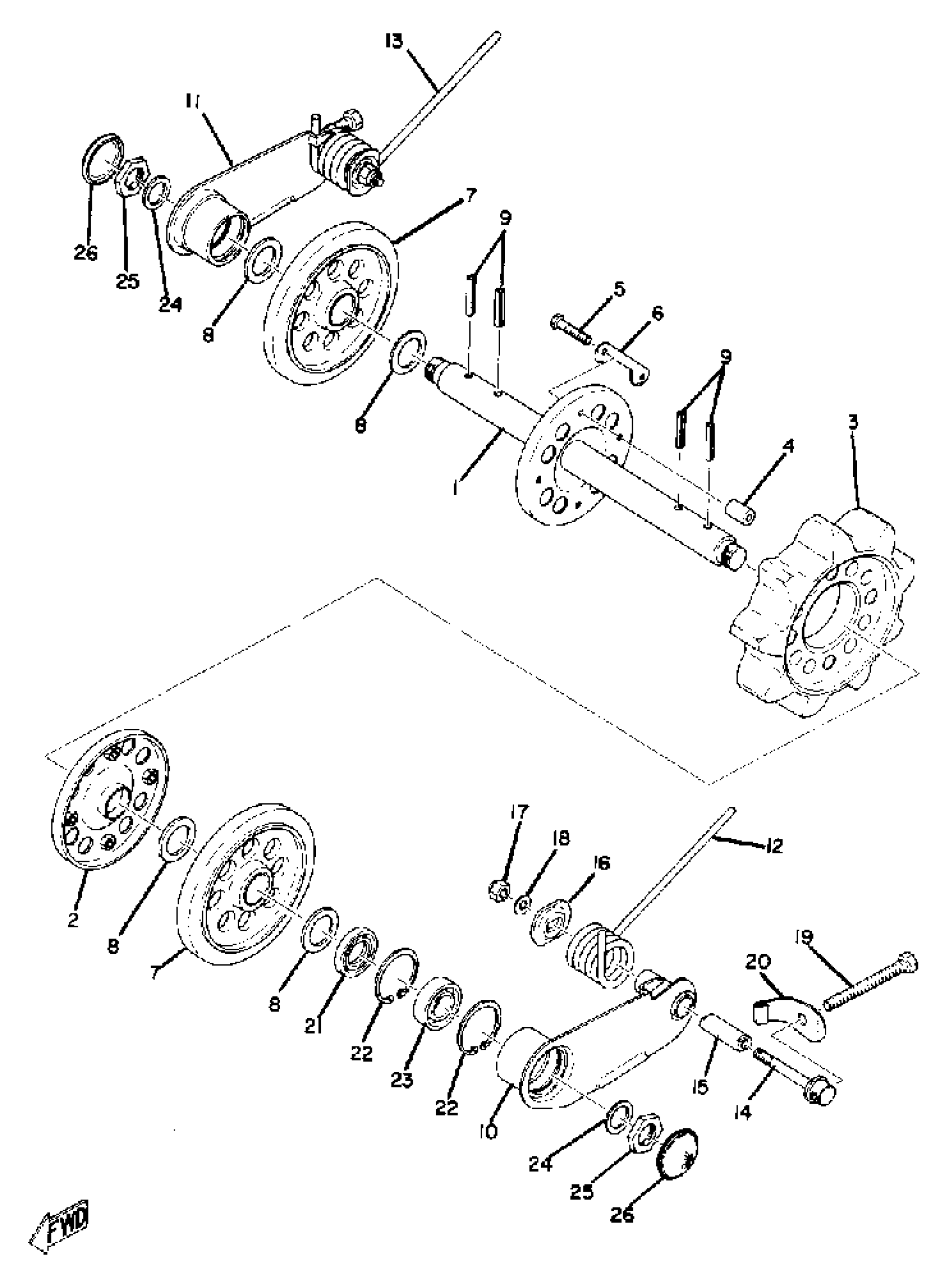

Find the part on the Rear Axle diagram for your 1974 Yamaha GP292F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha GP292F Rear Axle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR AXLE

853-47520-01-00

1
Out of stock

2

RIM, SPROCKET WHL 2

853-47522-00-00

1
Out of stock

3

WHEEL, SPROCKET 2

810-47532-00-00

1
Out of stock

4

C0LLAR

90387-062M9-00

1
Out of stock

5

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

6

WASHER, LOCK

90215-06100-00

1
Out of stock

7

GUIDE WHEEL

810-47530-00-00

1
Out of stock

8

WASHER, PLATE

90201-25499-00

1
Out of stock

9

PIN, SPRING

91609-60036-00

1
Out of stock

10

ARM PIVOT, REAR (L.H)

853-47361-00-00

—

$86.80

In stock

11

ARM, REAR PIVOT 2

(853-47362-00-00)

1
Out of stock

12

SPRING, TORSION

90508-72114-00

1
Out of stock

13

SPRING, TORSION (812-47364-00)

90508-72084-00

1
Out of stock

14

SCREW, SPEC''L SHAPE (853-47367-01)

90149-08021-00

1
Out of stock

15

COLLAR

853-47369-00-00

1
Out of stock

16

WASHER, SPEC''L SHAP

90209-22027-00

1
Out of stock

17

NUT, SELF-LOCKING (3Y2)

90185-08089-00

—

$7.31

In stock

18

WASHER (853)

90201-08326-00

—

$6.17

In stock

19

BOLT, DOME HEAD (841-47373-00)

90106-08050-00

1
Out of stock

20

WASHER, LOCK

90215-08069-00

1
Out of stock

21

OIL SEAL, SD-TYPE

93102-25110-00

1
Out of stock

22

CIRCLIP, INNER

93450-42020-00

1
Out of stock

23

BEARING (5Y1)

93306-00426-00

—

$35.60

In stock

24

WASHER (853)

90208-20008-00

—
Out of stock

25

NUT, HEXAGON

90170-20102-00

1
Out of stock

26

CAP, WHEEL

818-47317-01-00

1
Out of stock
