1974 Yamaha GP292F Pump Drive Gear Diagram

← All diagrams

Find the part on the Pump Drive Gear diagram for your 1974 Yamaha GP292F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

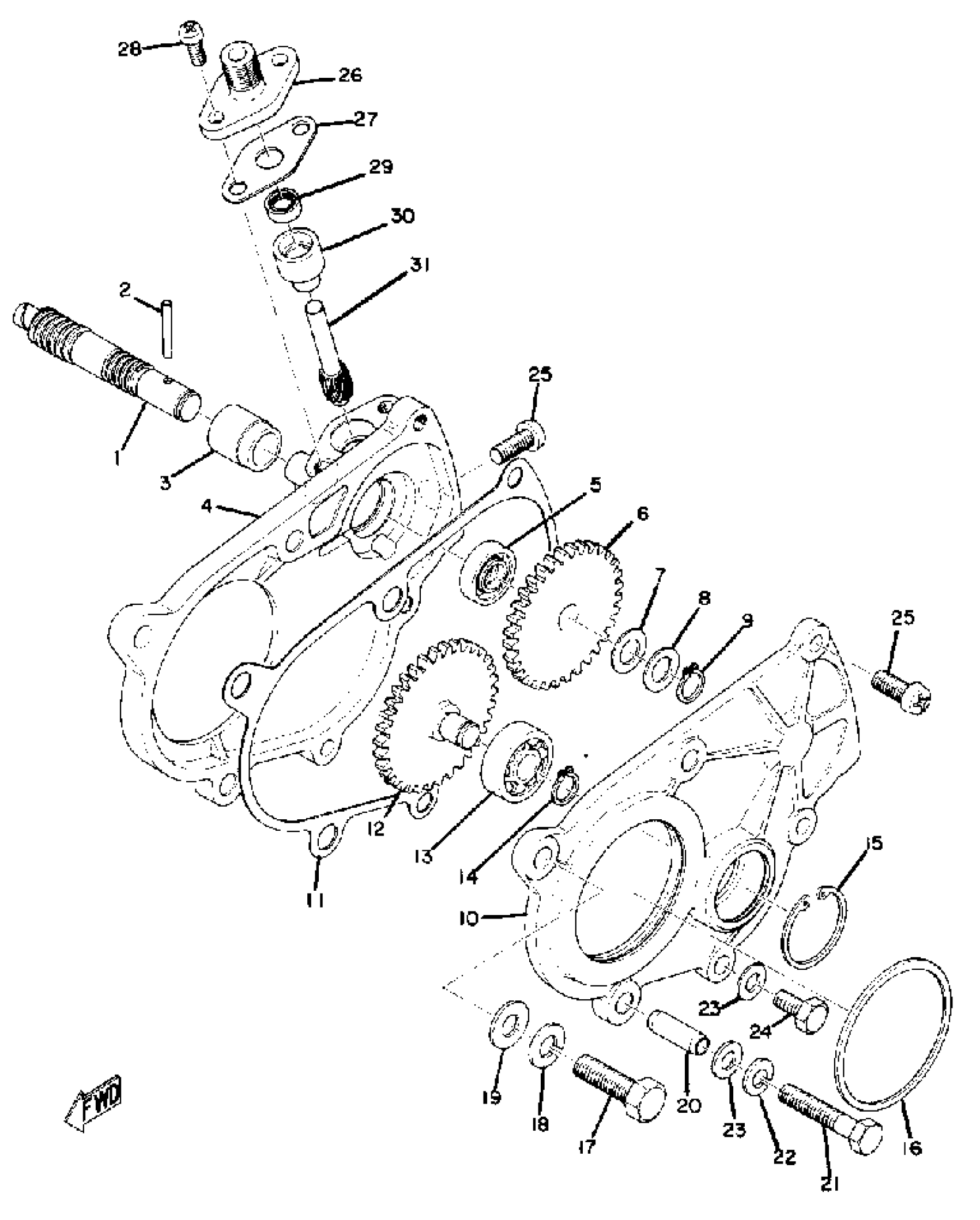

1974 Yamaha GP292F Pump Drive Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, WORM

860-13175-00-00

1
Out of stock

2

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

3

METAL, WORM SHAFT OUTER

821-13176-00-00

1

$6.33

In stock

4

COVER, OIL PUMP

(839-15416-00-00)

1
Out of stock

5

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

6

GEAR, DRIVE 2

821-13188-00-00

—

$26.03

In stock

7

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

8

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

9

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

10

COVER, OIL PUMP R

839-15426-00-00

1
Out of stock

11

GASKET 2

860-15466-01-00

1
Out of stock

12

GEAR, IDLE

(821-13179-00-00)

1
Out of stock

13

—

$29.35

In stock

14

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

15

CIRCLIP, R-TYPE (R-26)

93420-26024-00

1
Out of stock

16

SEAL, GREASE

(838-13119-00-00)

1
Out of stock

17

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

18

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

19

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

20

PIN, DOWEL

91810-18022-00

1
Out of stock

21

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

24

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

25

SCREW, PAN

98507-06014-00

—

$6.18

In stock

26

CAP, HOUSING

821-17819-00-00

1
Out of stock

27

GASKET

821-17818-02-00

—

$5.66

In stock

28

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

29

UNAVAILABLE IN PRICE BOOK

813-27841-00-00

1
Out of stock

30

BUSH, DRIVEN GEAR OUTER

821-17843-00-00

1
Out of stock

31

OIL SEAL (6X12X4-821)

93104-06033-00

—

$6.49

In stock
