1974 Yamaha GP292F Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1974 Yamaha GP292F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

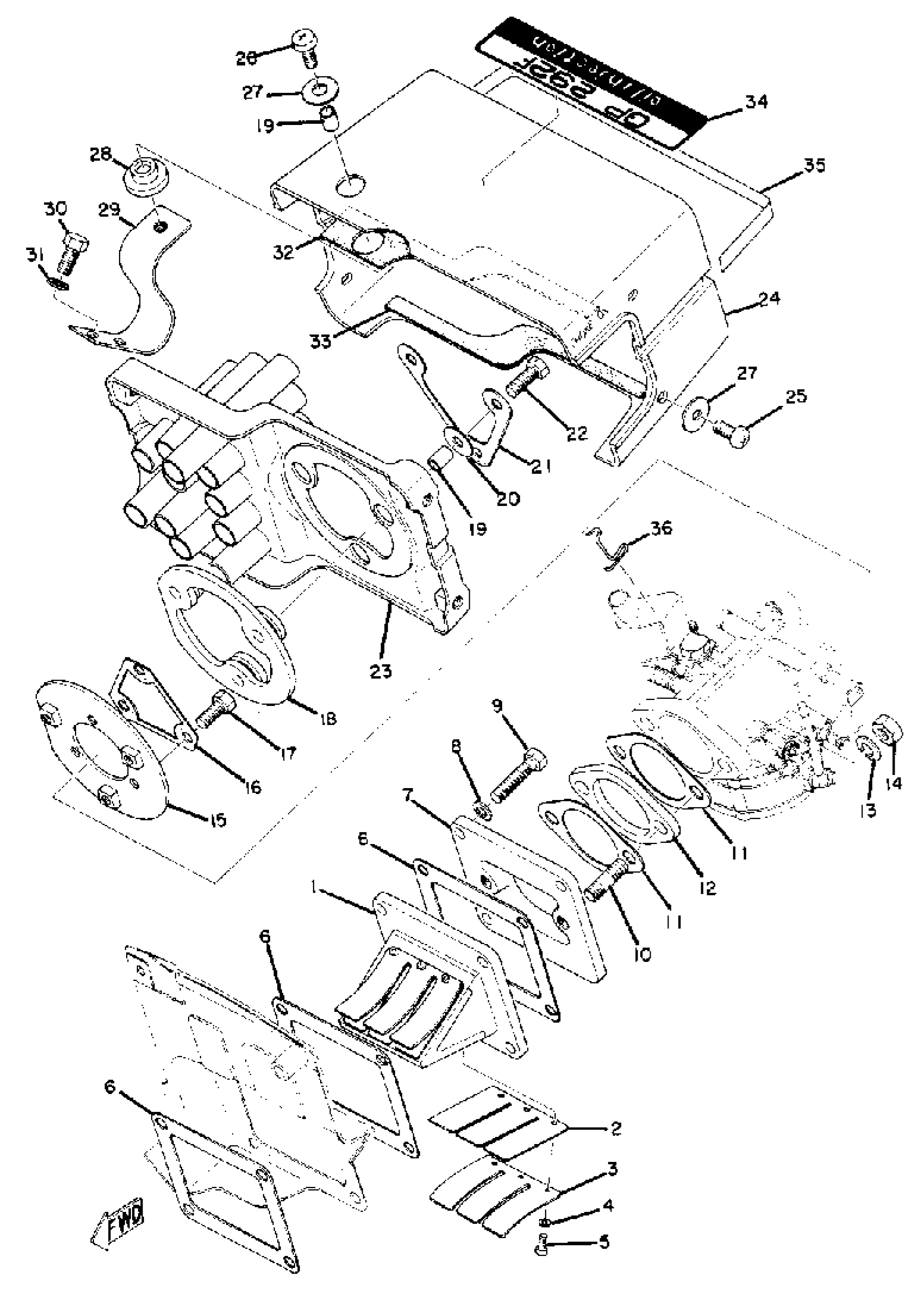

1974 Yamaha GP292F Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSEMBLY

(363-13610-00-00)

1
Out of stock

2

. REED, VALVE

363-13613-00-00

1
Out of stock

3

. STOPPER, REED VALVE

363-13616-00-00

1
Out of stock

4

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

5

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

6

GASKET,VALVE SEAT

363-13621-01-00

1
Out of stock

7

JOINT, CARBURETOR

(864-13565-01-00)

1
Out of stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

10

BOLT, STUD

(90116-08162-00)

1
Out of stock

11

GASKET,MANIFOLD

881-13556-09-00

1
Out of stock

12

MANIFOLD, INTAKE

(864-13555-00-00)

1
Out of stock

13

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

14

. NUT

95380-08700-00

1

$3.07

In stock

15

PLATE

864-14477-01-00

1
Out of stock

16

WASHER

8F3-14598-00-00

1
Out of stock

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

18

GROMMET

(864-14435-00-00)

1
Out of stock

19

COLLAR

(90387-06244-00)

1
Out of stock

20

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

21

WASHER, LOCK

(864-14599-00-00)

1
Out of stock

22

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

23

SILENCER, INTAKE 1

(864-14431-00-00)

1
Out of stock

24

SILENCER, INTAKE 2

(867-14441-00-00)

1
Out of stock

25

SCREW, BINDING

98907-06016-00

—

$7.14

In stock

26

SCREW, BIND

(91906-06018-00)

1
Out of stock

27

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

28

GROMMET

90480-15060-00

1
Out of stock

29

STAY 1

(864-14493-00-00)

1
Out of stock

30

BOLT, HEXAGON

97017-06016-00

—

$6.18

In stock

31

WASHER, SPRING

92907-06100-00

—
Out of stock

32

SEAL

(864-14457-00-00)

1
Out of stock

33

SEAL

(864-14467-00-00)

1
Out of stock

34

EMBLEM 1

(864-77451-00-00)

1
Out of stock

35

EMBLEM 2

853-77452-00-00

1
Out of stock

36

CLAMP, THROTTLE

822-41222-00-00

1
Out of stock
