1974 Yamaha GP292F Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1974 Yamaha GP292F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

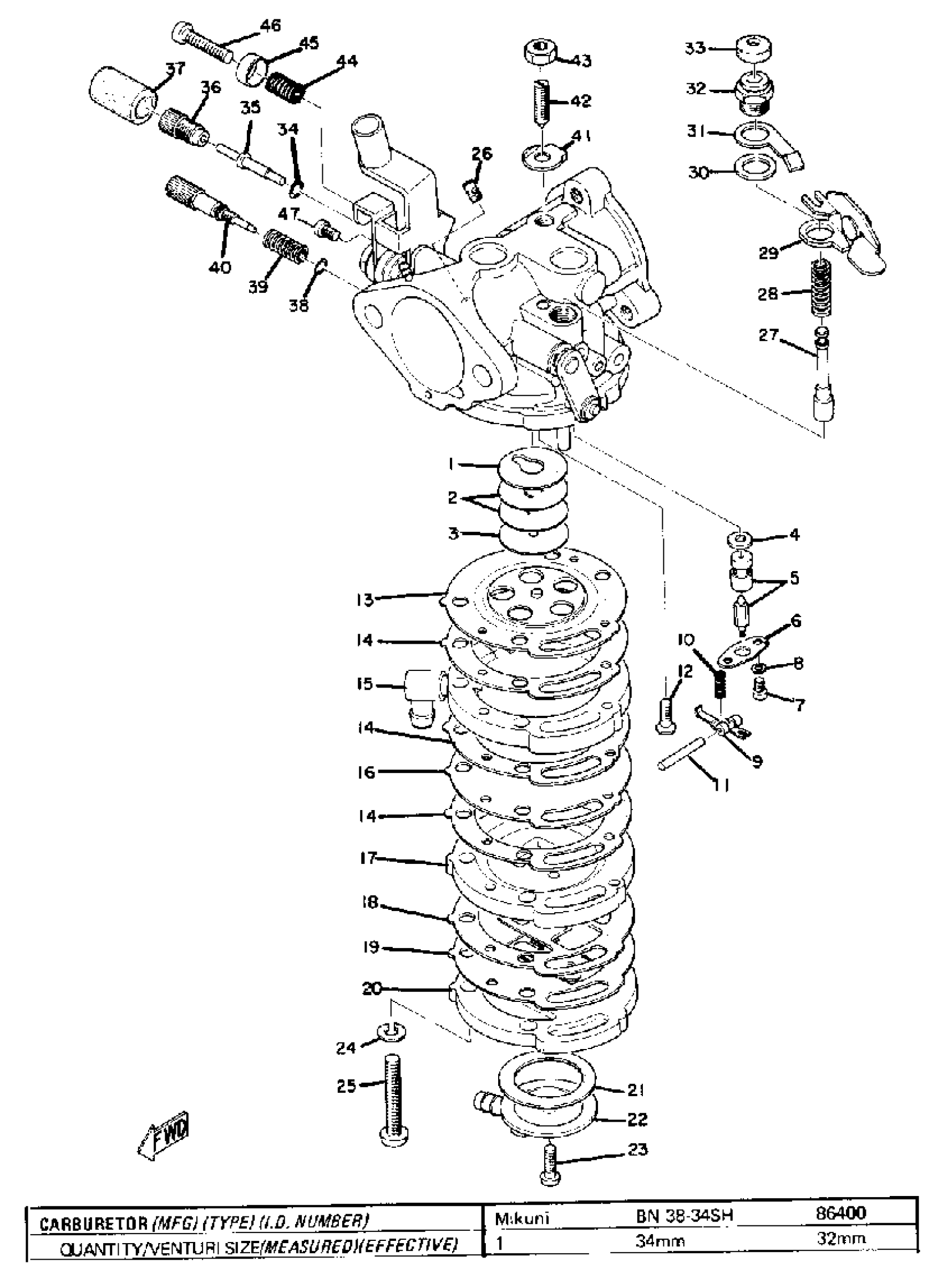

1974 Yamaha GP292F Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(864-14101-00-00)

1
Out of stock

1

GASKET

(864-24468-00-00)

1
Out of stock

2

VALVE, CHECK SEAT

864-14272-00-00

1
Out of stock

3

PLATE, NEEDLE FTNG

(864-14946-00-00)

1
Out of stock

4

WASHER, NEEDLE VLV

(849-14195-00-00)

1
Out of stock

5

. NEEDLE VALVE ASSEMBLY

864-14190-15-00

1
Out of stock

6

JET, MAIN #120

849-14143-24-00

1
Out of stock

7

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

8

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

9

ARM, DIAPHRAGM

(864-14387-00-00)

1
Out of stock

10

SPRING, DIAPHRAGM

(812-24423-00-00)

1
Out of stock

11

. PIN, FLOAT

439-14186-00-00

1

$12.49

In stock

12

SCREW, FLAT

98707-03008-00

1

$5.62

In stock

13

. DIAPHRGM

849-24471-00-00

1
Out of stock

14

. GASKET, BODY

849-24434-00-00

1
Out of stock

15

BODY 1

(849-24412-00-00)

1
Out of stock

16

. DIAPHRAGM

849-24411-00-00

1
Out of stock

17

BODY 2

(849-24413-00-00)

1
Out of stock

18

. GASKET, BODY 2

849-24435-00-00

1
Out of stock

19

. VALVE, CHECK

849-24421-00-00

1
Out of stock

20

BODY 3

(849-24414-00-00)

1
Out of stock

21

. GASKET

812-24468-00-00

1
Out of stock

22

. COVER

812-24452-00-00

1
Out of stock

23

. SCREW

812-24453-00-00

1
Out of stock

24

SCREW, PAN

98507-05035-00

—

$6.69

In stock

25

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

26

JET, PILOT (#72.5)

620-14142-72-00

1
Out of stock

27

PLUNGER, STARTER

849-14171-00-00

1
Out of stock

28

SPRING, PLUNGER

156-14135-00-00

—

$7.72

In stock

29

LEVER, STARTER 1

(849-14175-00-00)

1
Out of stock

30

WASHER, STARTER LVR

(132-14179-00-00)

1
Out of stock

31

PLATE, STARTER LVR

(849-14178-00-00)

1
Out of stock

32

. CAP, PLUNGER

802-14174-00-00

1
Out of stock

33

COVER, PLUNGER CAP

(849-14173-00-00)

1
Out of stock

34

O-RING (248)

93210-03119-00

—
Out of stock

35

JET, MAIN #125

(849-14143-25-00)

1
Out of stock

35

JET, MAIN #130

(849-14143-26-00)

1
Out of stock

35

JET, MAIN #135

(849-14143-27-00)

1
Out of stock

35

JET, MAIN #140

(849-14143-28-00)

1
Out of stock

35

JET, MAIN #145

(849-14143-29-00)

1
Out of stock

35

JET, MAIN #150

(849-14143-30-00)

1
Out of stock

36

SCREW, GUIDE

(849-14245-00-00)

1
Out of stock

37

CAP

(849-14169-00-00)

1
Out of stock

38

O-RING

(849-14147-00-00)

1
Out of stock

39

SPRING, PILOT ADJUSTING

(849-14212-00-00)

1
Out of stock

40

SCREW, AIR ADJUSTING

(849-14123-00-00)

1
Out of stock

41

WASHER

(849-14596-00-00)

1
Out of stock

42

SCREW

(849-24453-00-00)

1
Out of stock

43

NUT

(849-14595-00-00)

1
Out of stock

44

SPRING, AIR ADJUSTING

(849-14134-00-00)

1
Out of stock

45

CAP

(864-14118-00-00)

1
Out of stock

46

SCREW, THROTTLE

(864-14922-00-00)

1
Out of stock

47

SCREW

(864-24453-00-00)

1
Out of stock
