EXHAUST

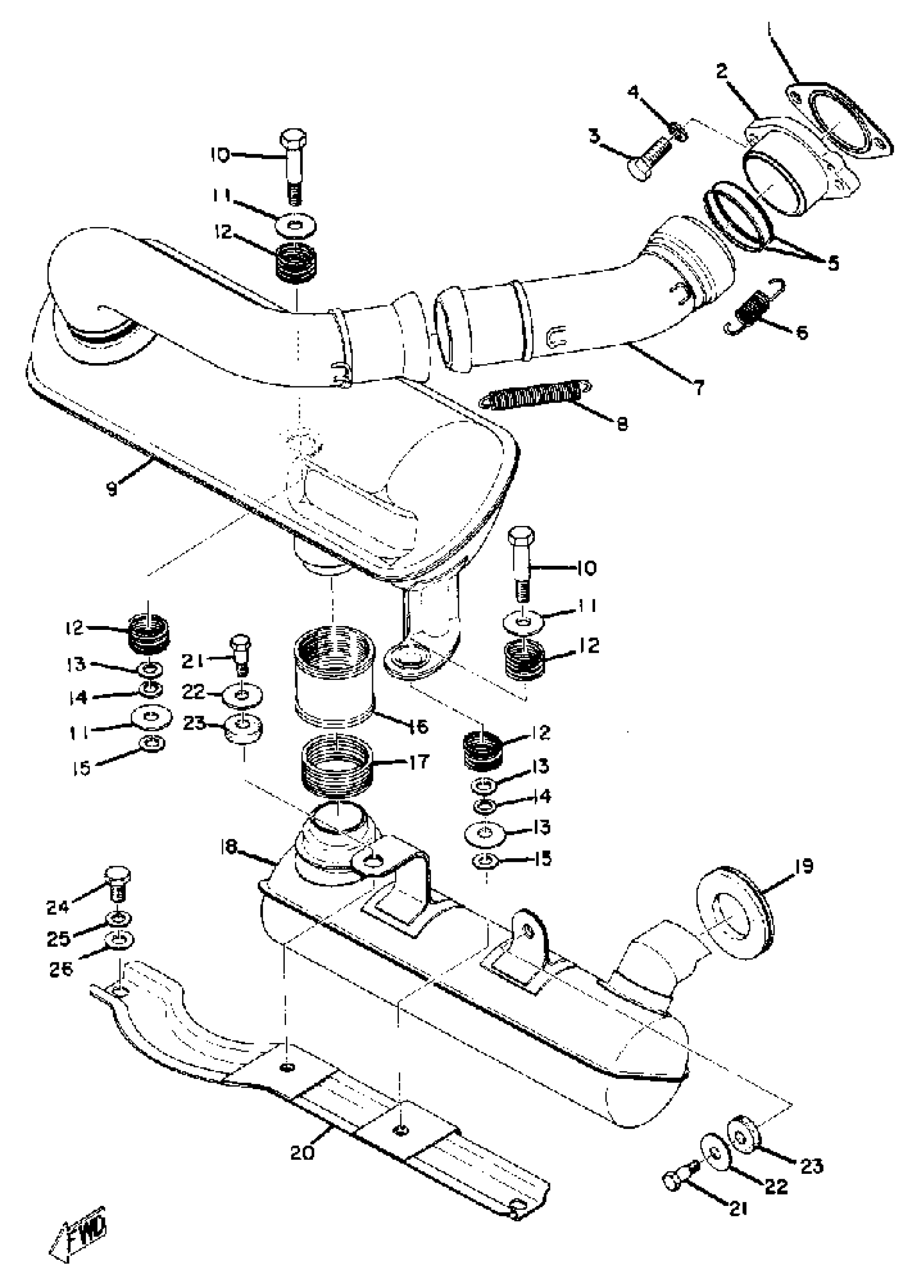

Yamaha GP292F 1974 EXHAUST Diagram
#
Description
Price
1
GASKET, EXHAUST PIPE
214-14613-09-00
$18.49
1
GASKET, EXHAUST
834-14613-09-00
Unavailable
2
NUT, RING
(853-14612-00-00)
Unavailable
3
BOLT (682)
97013-08025-00
$8.49
4
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
5
GASKET, EXST PIPE
(812-14623-00-00)
Unavailable
6
SPRING, HOOK (864)
90506-20074-00
$9.49
7
EXHAUST PIPE ASSEMBLY L
860-14610-02-00
Unavailable
8
SPRING, MUFFLER
821-14773-00-00
$18.49
9
MUFFLER ASSEMBLY L
864-14710-00-00
Unavailable
10
BOLT
90109-08293-00
Unavailable
11
WASHER, PLATE(3BM)
90201-105R9-00
$9.49
12
SPRING, MUFFLER
853-14773-02-00
Unavailable
13
COLLAR
90387-08079-00
$8.49
14
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
15
WASHER, PLATE
(90201-07080-00)
Unavailable
16
GASKET, MUFFLER
841-14714-00-00
Unavailable
17
SPRING, COMPRESSION
(90504-30004-00)
Unavailable
18
MUFFLER ASSEMBLY R
(860-14720-01-00)
Unavailable
19
PROTECTOR, MUFF 1
841-14718-00-00
Unavailable
20
STAY, MUFFLER 1
(860-14771-01-00)
Unavailable
21
BOLT 306258330000
90109-06018-00
Unavailable
22
WASHER, PLATE (5J0)
90201-085E6-00
Unavailable
23
WASHER, PLATE
90202-08085-00
Unavailable
24
BOLT(62E)
97013-08012-00
Unavailable
25
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
26
WASHER, PLAIN
92990-08200-00
Unavailable
