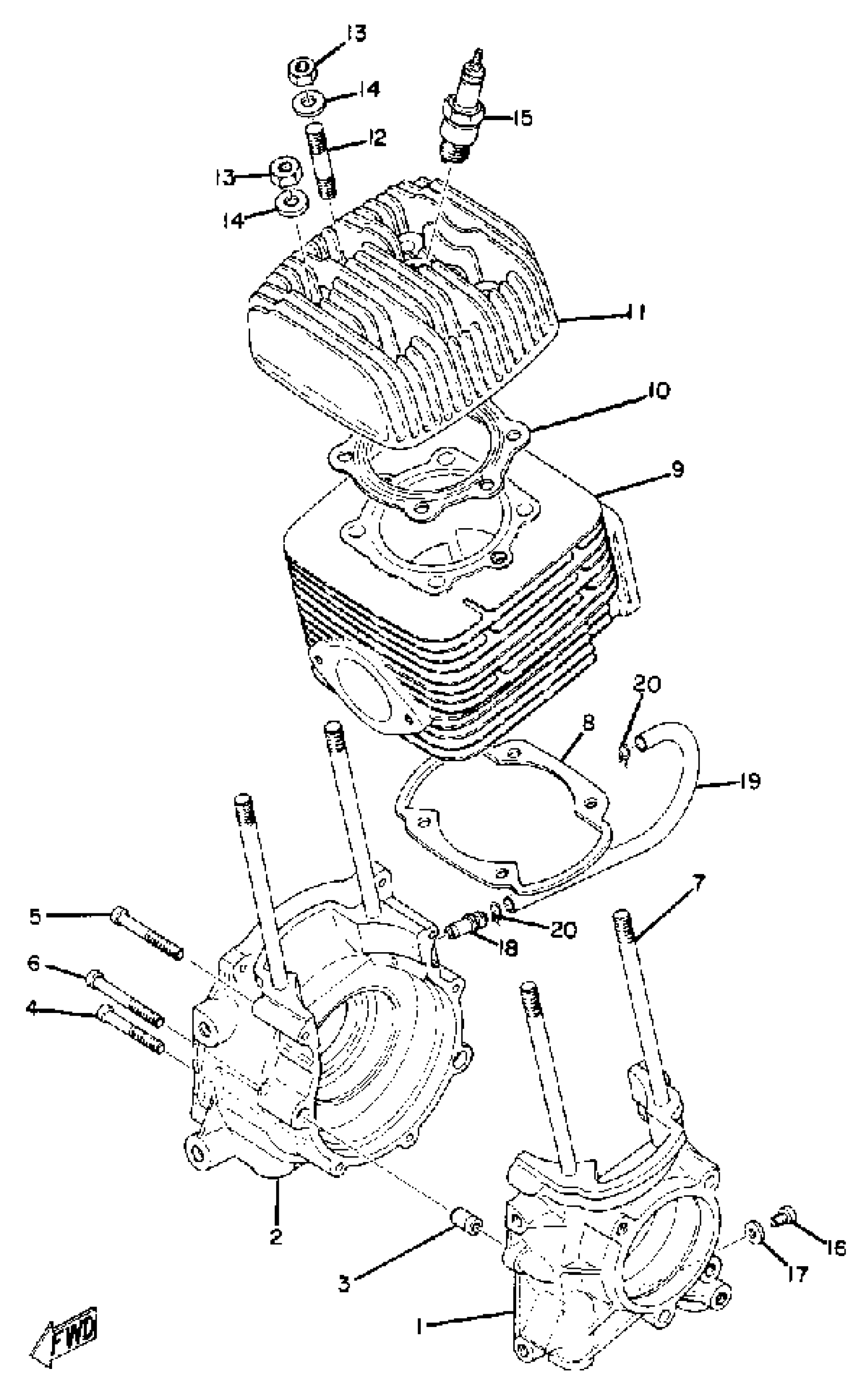

Yamaha GP292F 1974 CRANKCASE - CYLINDER Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

839-15100-00-00

Unavailable

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

SCREW PAN HEAD

98580-06545-00

$5.60

5

SCREW PAN HEAD

98580-06550-00

$8.49

6

SCREW, PANHED (GC2)

98580-06555-00

Unavailable

7

BOLT, STUD

(90116-08083-00)

Unavailable

8

GASKET, CYLINDER

812-11351-09-00

$3.43

9

CYLINDER 1

(864-11311-00-00)

Unavailable

10

GASKET, CYLINDER HEAD 1

812-11181-00-00

Unavailable

11

HEAD, CYLINDER 1

(845-11111-00-00)

Unavailable

12

BOLT, STUD

90116-08057-00

Unavailable

13

NUT, HOLDING (812-11171-00)

812-11171-00-00

Unavailable

14

WASHER, PLATE (397)

90201-08100-00

$8.49

15

CHAMPION N2G 10PK

(CMP-N2G00-00-00)

Unavailable

16

SCREW PAN HEAD

98580-06010-00

$8.49

17

GASKET 838153840000

90430-06016-00

Unavailable

18

JOINT, BREATHER

J38-11116-00-00

Unavailable

19

HOSE (6-120) (813-24316-00)

90445-10132-00

Unavailable

20

CLIP

90467-090A2-00

Unavailable
