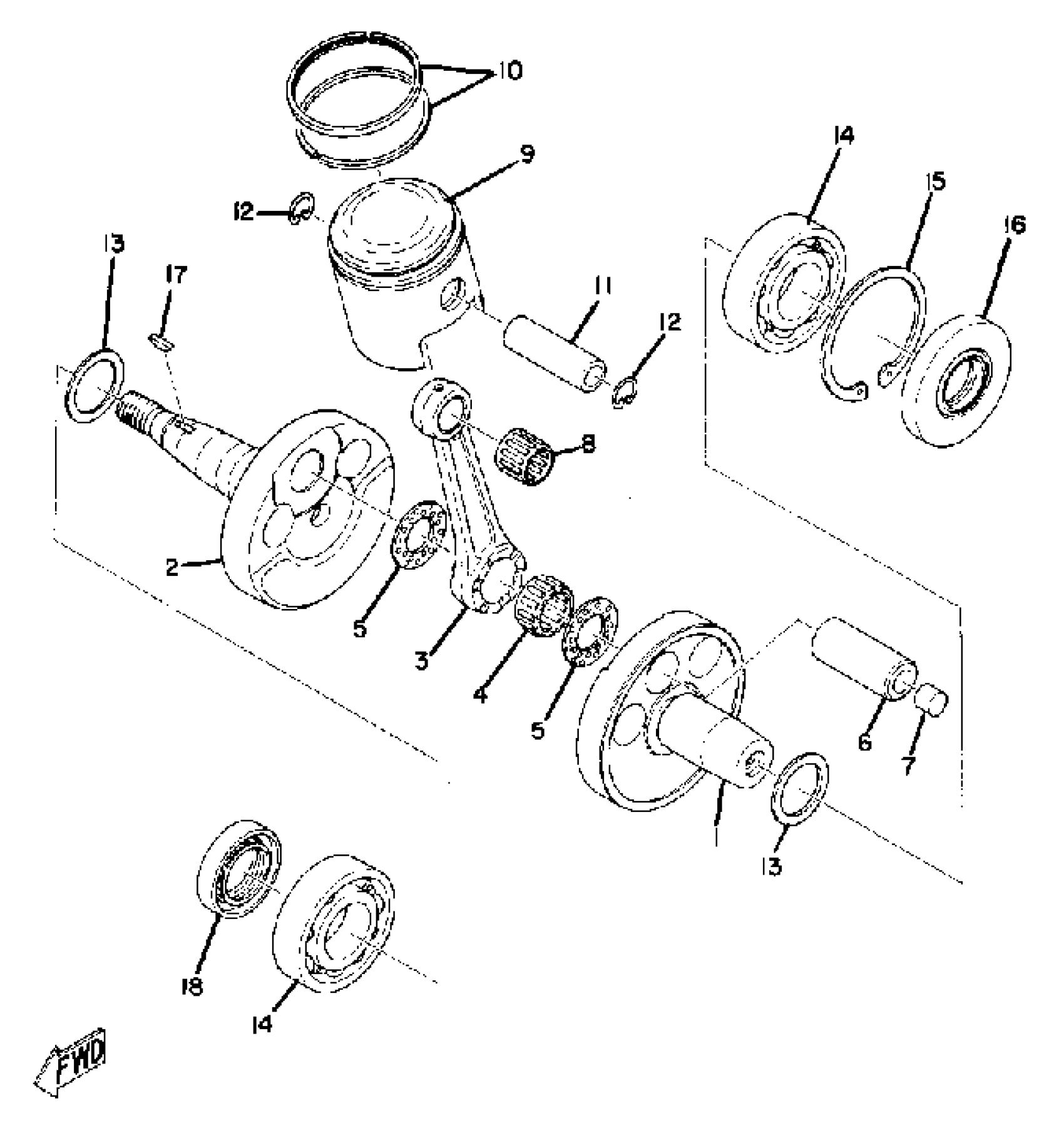

Yamaha GP292F 1974 CRANK - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

(860-11400-00-00)

Unavailable

1

CRANK 1

(860-11412-02-00)

Unavailable

2

CRANK 2

(860-11422-00-00)

Unavailable

3

. ROD, CONNECTING

839-11651-00-00

Unavailable

4

BEARING

93310-424E8-00

Unavailable

5

WASHER (152-11685-00)

90209-24073-00

$14.99

6

PIN, CRANK 1

(822-11681-00-00)

Unavailable

7

BUSH, CRANK PIN

(822-11682-00-00)

Unavailable

8

BRG,CYL-CAL ROLLER 15.6G KY

93310-218A6-00

$38.99

9

PISTON STD

864-11631-00-96

Unavailable

9

PISTON 1 O/S 0.25

(864-11635-00-00)

Unavailable

9

PISTON 2 O/S 0.50

(864-11636-00-00)

Unavailable

10

PISTON RINGSET STD

864-11610-00-00

Unavailable

10

PISTON RINGSET 1ST

(864-11610-10-00)

Unavailable

10

PISTON RINGSET 2ND

864-11610-20-00

Unavailable

11

PIN, PISTON

818-11633-00-00

Unavailable

12

CLIP 6041163400

93450-20026-00

Unavailable

13

SHIM, CRANK 1

(812-11561-00-02)

Unavailable

13

SHIM, CRANK 1

(812-11561-00-03)

Unavailable

14

BEARING(4GB)

93306-30629-00

Unavailable

15

CIRCLIP, R-TYPE

(93420-72023-00)

Unavailable

16

OIL SEAL, SW-TYPE

93103-32060-00

Unavailable

17

KEY, WOODRUFF

90280-05001-00

Unavailable

18

OIL SEAL, SW-TYPE

93103-32061-00

Unavailable
