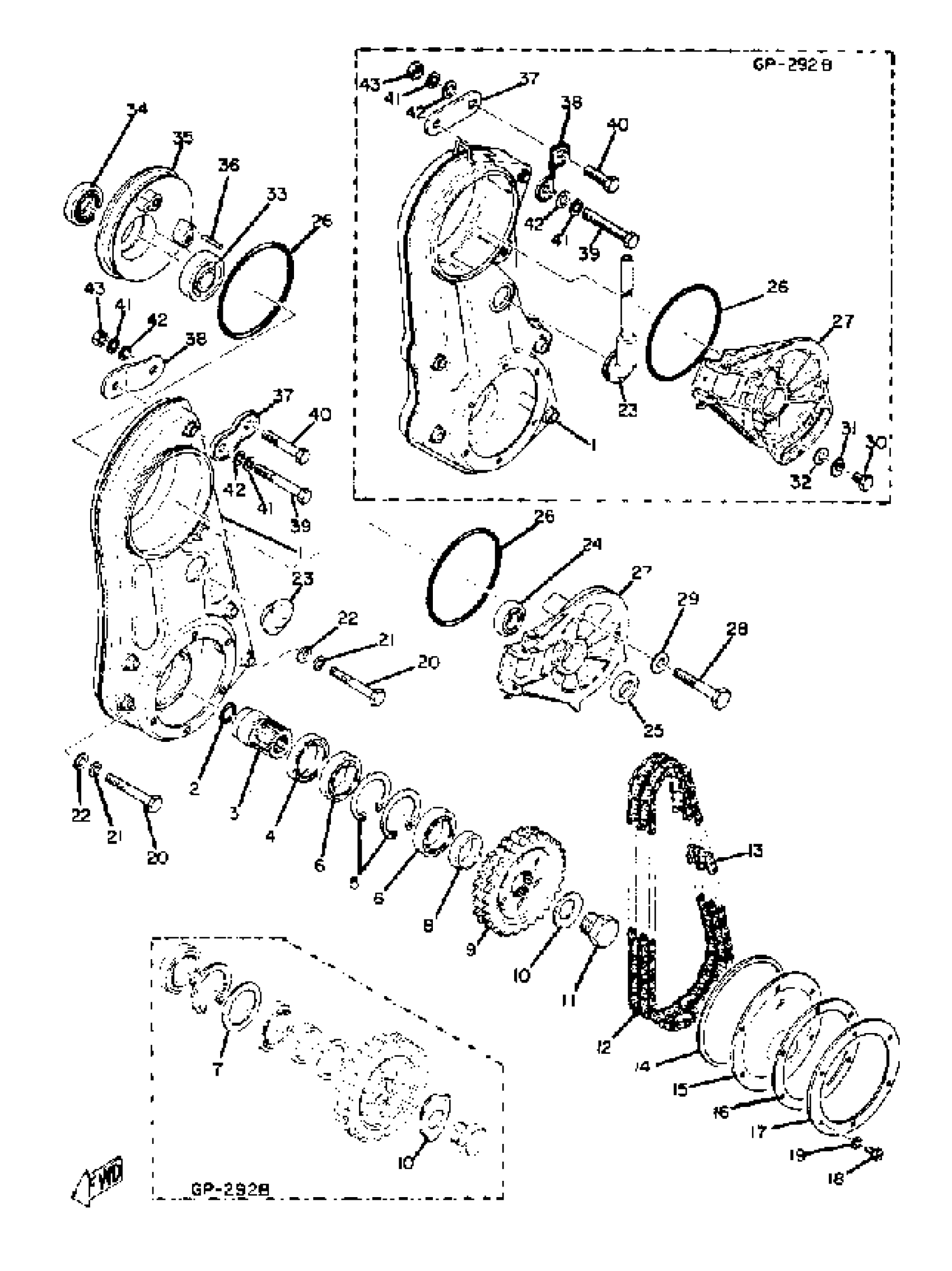

Yamaha GP292 1972 TRACK DRIVE Diagram

#

Description

Price

1

HOUSING, CHAIN

(820-47541-00-00)

Unavailable

1

HOUSING, CHAIN

(844-47541-00-00)

Unavailable

2

O-RING (437)

93210-24235-00

$7.49

3

JOURNAL 1

(810-47571-00-00)

Unavailable

3

JOURNAL 1

(841-47571-00-00)

Unavailable

4

OIL SEAL, SD-TYPE

93102-40080-00

Unavailable

5

CIRCLIP, R-TYPE

93420-55028-00

Unavailable

5

CIRCLIP, R-TYPE

93420-55028-00

Unavailable

6

BEARING

93306-90702-00

Unavailable

7

SPACER

90560-35050-00

Unavailable

8

COLLAR

90387-35205-00

Unavailable

8

COLLAR

90387-35206-00

Unavailable

9

SPROCKET, CHN DRVN

(802-47548-40-00)

Unavailable

9

SPROCKET, CHN DRVN

802-47548-50-00

Unavailable

9

SPROCKET, CHN DRVN

(802-47548-60-00)

Unavailable

10

SPRING, BELLEVILLE

821-47582-00-00

Unavailable

10

WASHER, LOCK

90215-24029-00

Unavailable

11

BOLT

90109-24203-00

Unavailable

12

CHAIN (DK425-2 62L)

94804-25062-00

Unavailable

12

CHAIN

94804-25068-00

Unavailable

13

. JOINT CHAIN

94904-25001-00

Unavailable

14

RING, HOUSING

(806-47558-00-00)

Unavailable

15

CAP, HOUSING

(821-47543-00-00)

Unavailable

16

GASKET

821-47544-00-00

Unavailable

17

PLATE

(821-47591-00-00)

Unavailable

18

SCREW

90143-05004-00

Unavailable

19

WASHER, SEAL

90210-05005-00

Unavailable

20

BOLT(6TC)

97027-08070-00

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

22

WASHER, PLAIN

92990-08200-00

Unavailable

23

CAP 2

(810-47559-00-00)

Unavailable

23

CAP 2

(861-47559-00-00)

Unavailable

24

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

Unavailable

25

OIL SEAL (22X32X5-818)

93102-22087-00

Unavailable

26

O-RING

93211-13109-00

Unavailable

27

HOUSING, SEC SHAFT

(818-47561-00-00)

Unavailable

27

HOUSING, SEC SHAFT

845-47561-01-00

Unavailable

28

BOLT (663)

97013-08060-00

Unavailable

29

WASHER (821)

90210-08002-00

Unavailable

30

BOLT(JA9)

90101-08691-00

Unavailable

31

WASHER, LOCK

(90215-08027-00)

Unavailable

32

WASHER, PLAIN

92990-08200-00

Unavailable

33

BRG,R-B 6304 52MM 144G NT

93306-30407-00

Unavailable

34

OIL SEAL (30X47X7-810)

93102-30083-00

Unavailable

35

HOUSING, SEC SHAFT

810-47562-00-00

Unavailable

36

PIN, DOWEL(4SS)

93604-18251-00

Unavailable

37

STAY 1

(820-47565-00-00)

Unavailable

37

STAY 1

(844-47565-00-00)

Unavailable

38

STAY 2

(820-47566-00-00)

Unavailable

38

STAY 2

(844-47566-00-00)

Unavailable

39

BOLT(6TC)

97027-08070-00

Unavailable

40

BOLT

97013-08035-00

Unavailable

40

BOLT, HEXAGON

97013-08055-00

Unavailable

41

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

42

WASHER, PLAIN

92990-08200-00

Unavailable

43

NUT(6L2)

95333-08600-00

Unavailable
