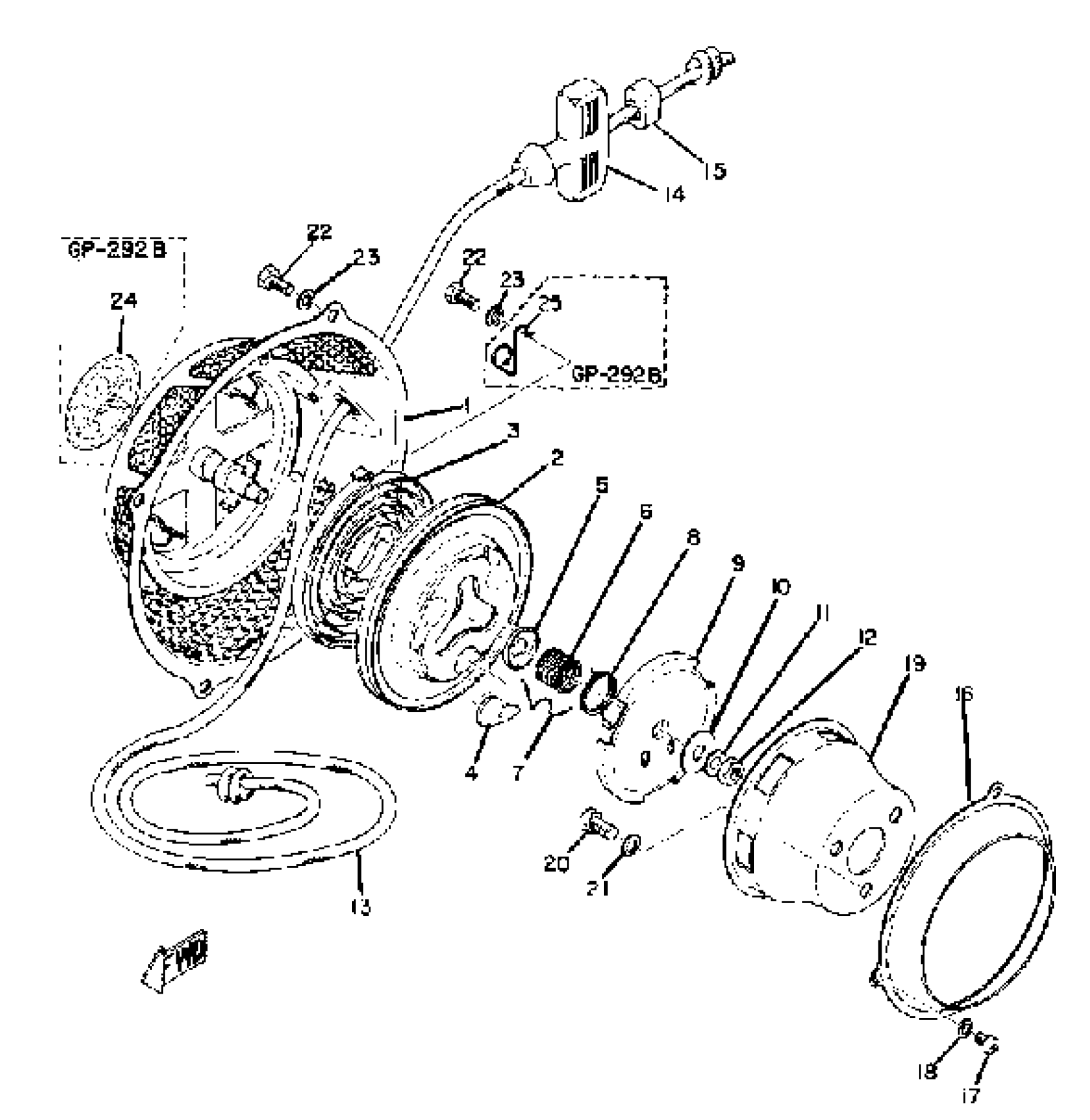

Yamaha GP292 1972 STARTER Diagram

#

Description

Price

1

STARTER ASSEMBLY

(860-15710-00-00)

Unavailable

1

CASE, STARTER

(860-15711-00-00)

Unavailable

2

. DRUM, SHEAVE

812-15714-00-00

Unavailable

3

. SPRING, STARTER

802-15713-00-00

Unavailable

4

. PAWL, DRIVE

812-15741-00-00

Unavailable

5

. WASHER, THRUST (802-15719-00)

626-15719-00-00

Unavailable

6

SPRING,DRIVE PLATE

626-15715-01-00

Unavailable

7

SPRING,RETURN

812-15784-00-00

Unavailable

8

. SPRING, RETURN

811-15734-00-00

Unavailable

9

. PLATE, DRIVE

812-15716-00-00

Unavailable

10

WASHER,FLAT

807-15726-01-00

Unavailable

11

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

12

. NUT

95380-08700-00

Unavailable

13

ROPE, STARTER

(807-15751-00-00)

Unavailable

14

. HANDLE, STARTER

807-15755-00-00

Unavailable

15

. CONNECTOR 1

619-15756-00-00

Unavailable

16

SPRING,RETURN

812-15784-00-00

Unavailable

17

SCREW,PANHEAD (EG9)

98580-05006-00

Unavailable

18

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

19

PULLEY, STARTER

(812-15723-00-00)

Unavailable

20

BOLT, HEXAGON

97013-08016-00

Unavailable

21

WASHER(JN5)

92907-08100-00

Unavailable

22

BOLT, HEXAGON

97017-06016-00

Unavailable

23

WASHER, SPRING

92907-06100-00

Unavailable

24

EMBLEM

(838-15791-00-00)

Unavailable

25

CLAMP, FUEL PIPE 2

(839-24367-00-00)

Unavailable
