1972 Yamaha GP292 Secondary Sheave Diagram

← All diagrams

Find the part on the Secondary Sheave diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

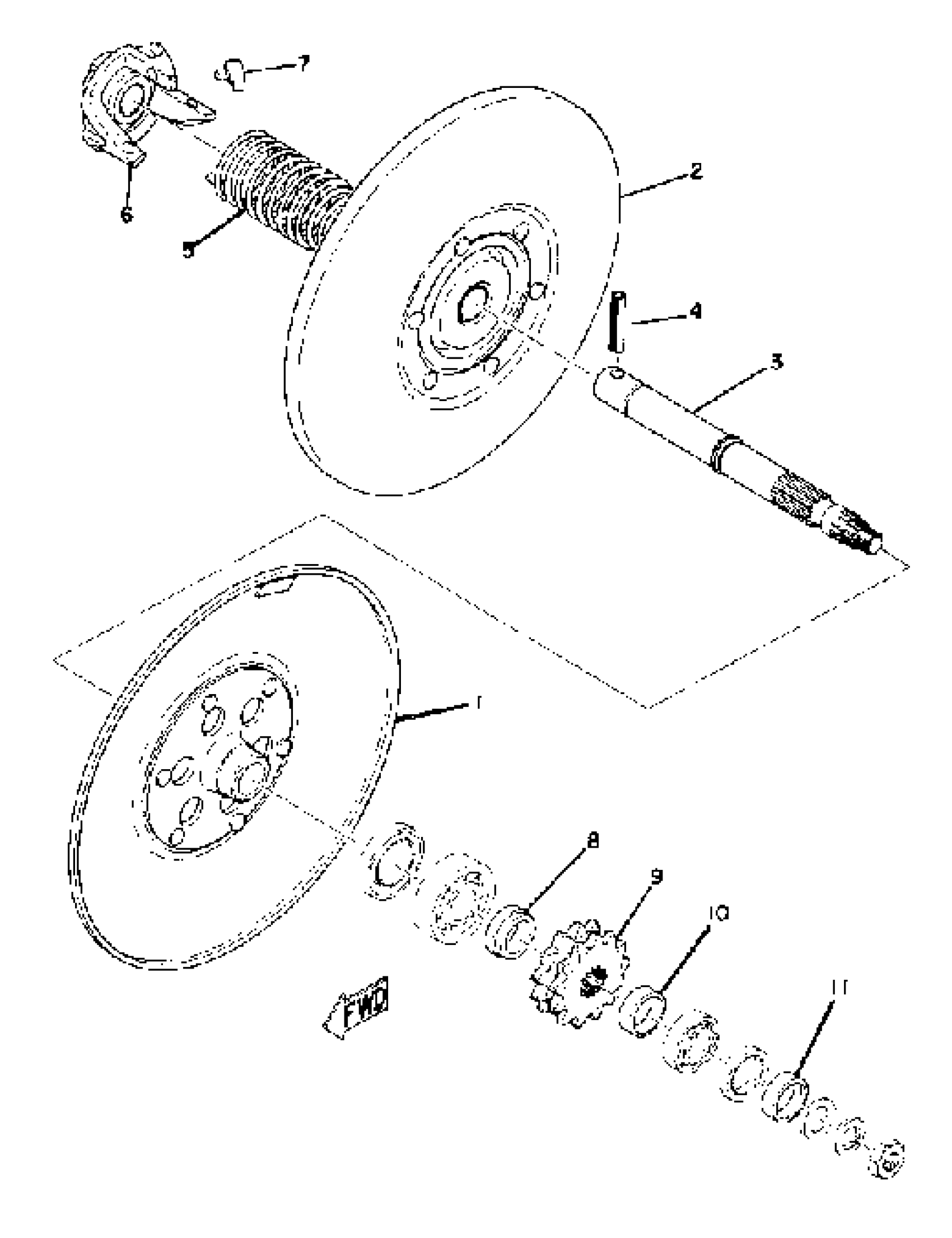

1972 Yamaha GP292 Secondary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEC FXD SHV

(810-17660-00-00)

1
Out of stock

2

SEC SLIDING SHEAVE

(810-17670-00-00)

1
Out of stock

3

SHAFT, SECONDARY

(810-17681-00-00)

1
Out of stock

4

PIN, SPRING

91609-80040-00

1
Out of stock

5

SPRING, SECONDARY (805-17683-00)

805-17683-00-00

1
Out of stock

6

SEAT, SEC SPRINGSPRING

810-17684-01-00

1
Out of stock

7

SHOE, RAMP

801-17688-10-00

1

$4.15

In stock

8

COLLAR (812-17685-00)

90387-19149-00

1
Out of stock

9

SPRKT,CHAIN DR

806-17682-30-00

1
Out of stock

9

SPROCKET, CHAIN DRIVE (12T)

806-17682-20-00

1
Out of stock

9

SPROCKET, CHAIN DRIVE (14T)

806-17682-40-00

1
Out of stock

9

SPRKT, CHAIN DR 15T

(810-17682-50-00)

1
Out of stock

10

COLLAR

90387-17133-00

1
Out of stock

11

COLLAR (818-17686-00)

90387-17130-00

1
Out of stock
