1972 Yamaha GP292 Primary Sheave Diagram

← All diagrams

Find the part on the Primary Sheave diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

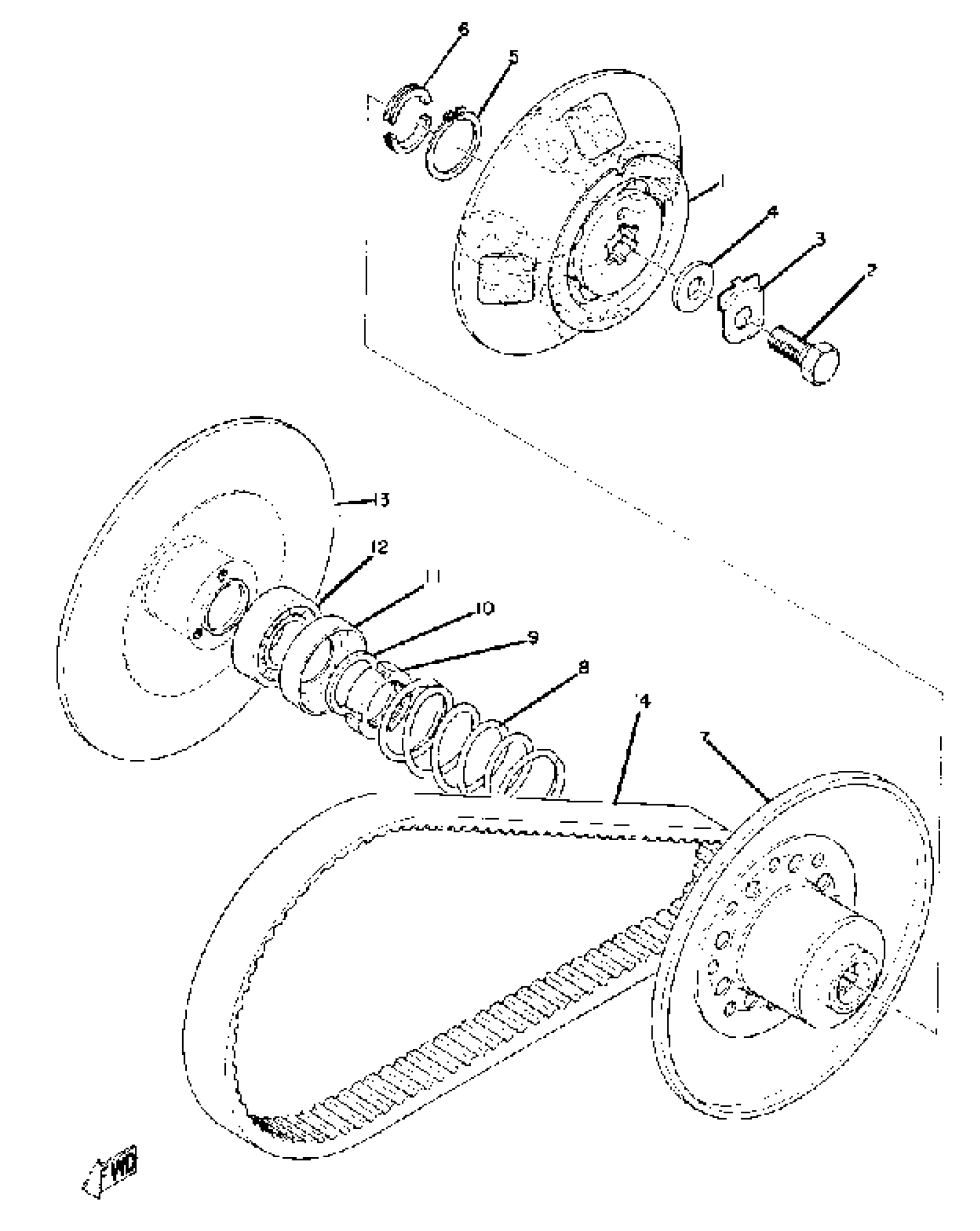

1972 Yamaha GP292 Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI. SHEAVE CAP

(823-W1762-00-00)

1
Out of stock

2

BOLT

(838-17647-01-00)

1
Out of stock

2

BOLT

(90109-10080-00)

1
Out of stock

3

WASHER, LOCK (810-17646-00)

90215-11080-00

1
Out of stock

3

WASHER, LOCK

90215-12084-00

1
Out of stock

4

WASHER, PLATE

90201-10144-00

1
Out of stock

4

WASHER (838)

90201-12191-00

1

$6.11

In stock

5

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

6

COLLAR

806-17645-00-00

1
Out of stock

7

PRI SLIDG SHEAVE

(810-17620-01-00)

1
Out of stock

8

SPRING, COMPRESSION (818-17643-00)

90501-45161-00

1
Out of stock

9

NUT, BEARING

(810-17642-00-00)

1
Out of stock

10

WASHER, CONICAL SPR

90208-28003-00

1
Out of stock

11

SEAT, SPRING

806-17644-00-00

1
Out of stock

12

BEARING

93306-07806-00

1

$56.18

In stock

13

PRI. FIXED SHEAVE

(821-W1761-00-00)

1
Out of stock

14

V-BELT

820-17641-01-00

1

$33.66

In stock
