FAN CASE - AIR SHROUD

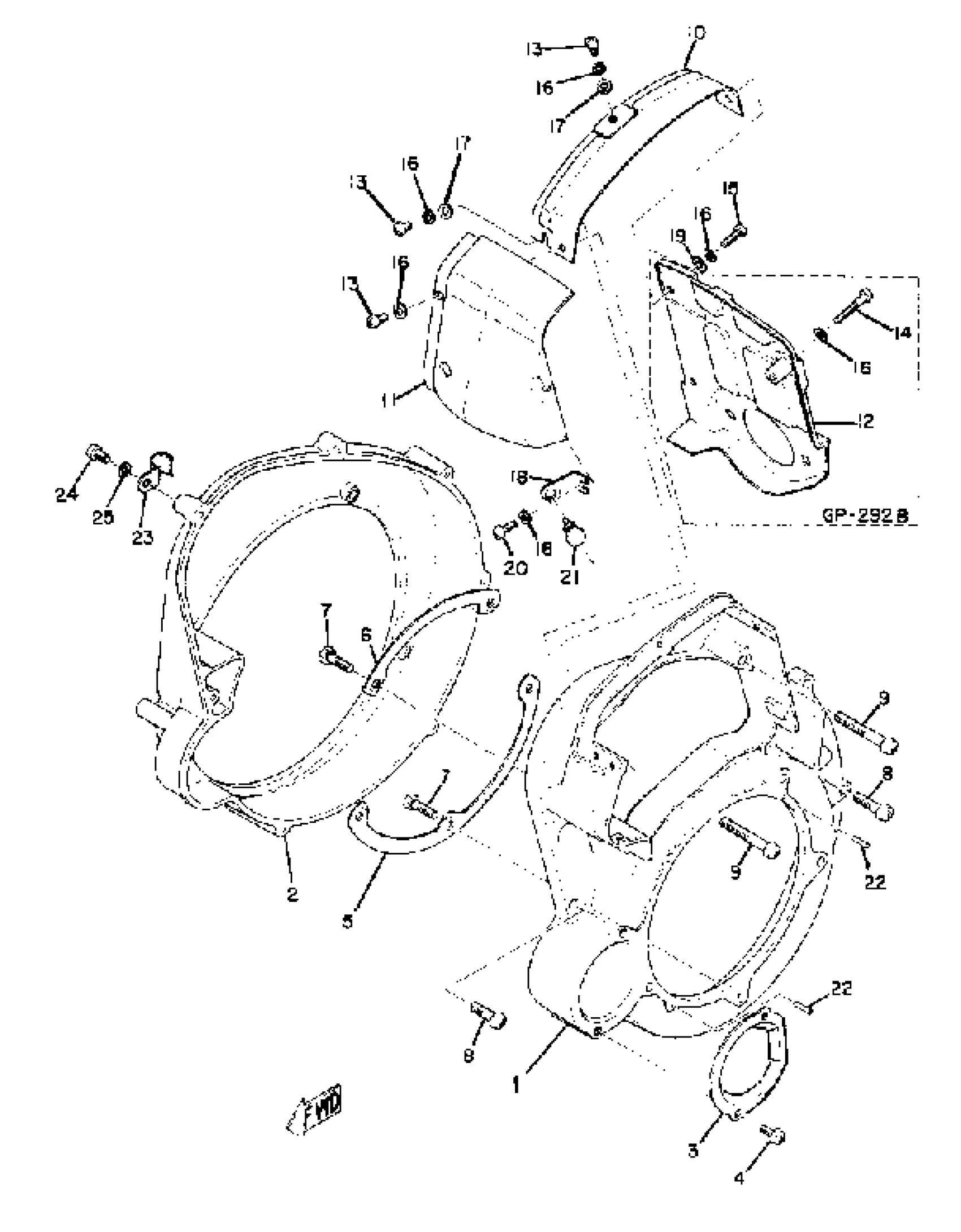

Yamaha GP292 1972 FAN CASE - AIR SHROUD Diagram
#
1
CASE, FAN
839-12621-00-00
Unavailable
2
CASE, FAN 2
867-12622-00-00
Unavailable
3
PLATE
(812-12633-00-00)
Unavailable
4
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
5
BOLT, WASHER BASED
(90105-06001-00)
Unavailable
6
WASHER, LOCK 2
(812-12625-00-00)
Unavailable
7
BOLT, WASHER BASED
(90105-06001-00)
Unavailable
8
SCREW, PAN HEAD (76T)
98517-06025-00
$3.77
9
SCREW, PAN
98507-06050-00
$3.28
10
AIR SHROUD, CYLINDER 1
(839-12651-00-00)
Unavailable
11
AIR SHROUD, CYLINDER 2
(822-12652-00-00)
Unavailable
12
AIR SHROUD, CYLINDER 3
(845-12653-00-00)
Unavailable
13
SCREW, BINDING
98907-05012-00
$8.49
13
SCREW, BINDING
98907-05012-00
$8.49
14
SCREW, BIND
(98906-05030-00)
Unavailable
15
SCREW, BINDING
98907-05012-00
$8.49
15
SCREW, BINDING
98907-05012-00
$8.49
16
WASHER(3SX)
92907-05100-00
Unavailable
16
WASHER(3SX)
92907-05100-00
Unavailable
17
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
17
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
18
STAY, CLAMP 1
(822-12655-00-00)
Unavailable
19
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
20
SCREW, BINDING
98907-05010-00
Unavailable
21
AIR SHROUD, CYLINDER 1
(839-12651-00-00)
Unavailable
22
PIN,DOWEL (137)
93604-14012-00
Unavailable
23
CLAMP, CORD
(822-82361-00-00)
Unavailable
24
SCREW, PAN
98507-06010-00
Unavailable
25
WASHER, SPRING
92907-06100-00
Unavailable
