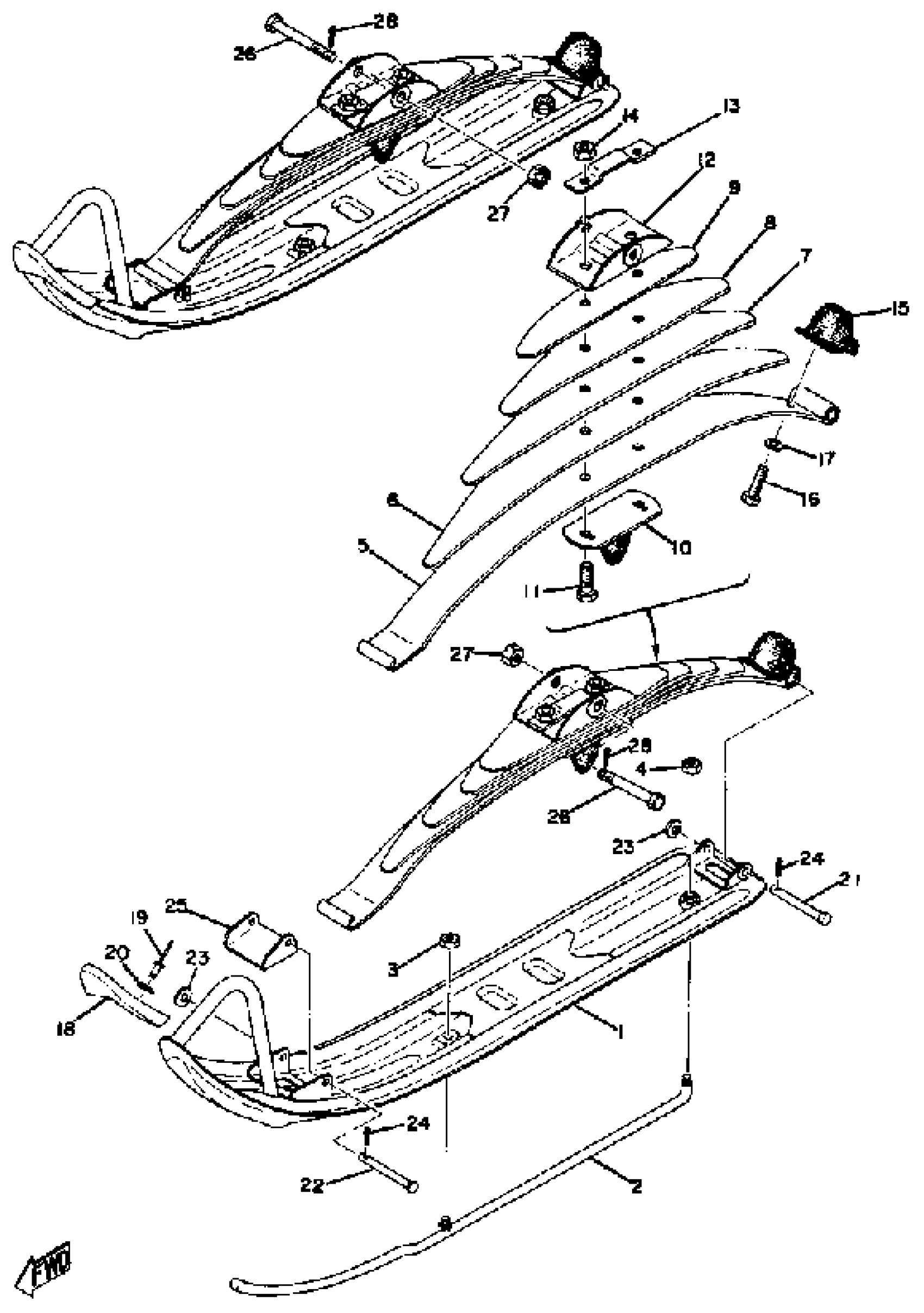

Find the part on the SKI diagram for your 1974 Yamaha GP246F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha GP246F SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

(853-23710-01-00)

1
Out of stock

1

SPRING ASSEMBLY 1

881-23760-01-00

1
Out of stock

2

SKI RUNNER, (SV80)

853-23731-00-XX

1
Out of stock

2

SPRING ASSEMBLY 2

(881-23770-01-00)

1
Out of stock

3

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

4

NUT

90185-08055-00

1

$8.31

In stock

5

LEAF 1

(865-23761-00-00)

1
Out of stock

6

LEAF 2

865-23762-10-00

1
Out of stock

7

. LEAF 3

865-23763-00-00

1
Out of stock

8

LEAF 4

(865-23764-00-00)

1
Out of stock

9

. LEAF 5

865-23771-00-00

1
Out of stock

10

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

11

. BOLT

90101-10060-00

1
Out of stock

12

. SADDLE 1

806-23766-00-00

1
Out of stock

13

WASHER, SPEC''L SHAP

(90209-10037-00)

1
Out of stock

14

NUT(6TD)

95337-10600-00

—

$6.98

In stock

15

STOPPER 1

(841-23743-01-00)

1
Out of stock

16

BOLT (11T)

90101-06576-00

—

$6.46

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

PROTECTOR, SKI

867-23747-00-00

1
Out of stock

19

RIVET, BLIND

90267-40029-00

—

$6.68

In stock

20

—

$2.62

In stock

21

PIN, CLEVIS

90240-08018-00

1
Out of stock

22

PIN, CLEVIS

90240-08019-00

1
Out of stock

23

WASHER(6TC)

92907-08200-00

—
Out of stock

24

PIN COTTER

91490-30025-00

—
Out of stock

25

PLATE, WEAR 1

853-23735-00-00

1
Out of stock

26

BOLT, WITH HOLE

90102-10023-00

1
Out of stock

27

NUT, SLOTTED

95306-10900-00

1
Out of stock

28

PIN, COTTER

91490-20025-00

—

$1.31

In stock
