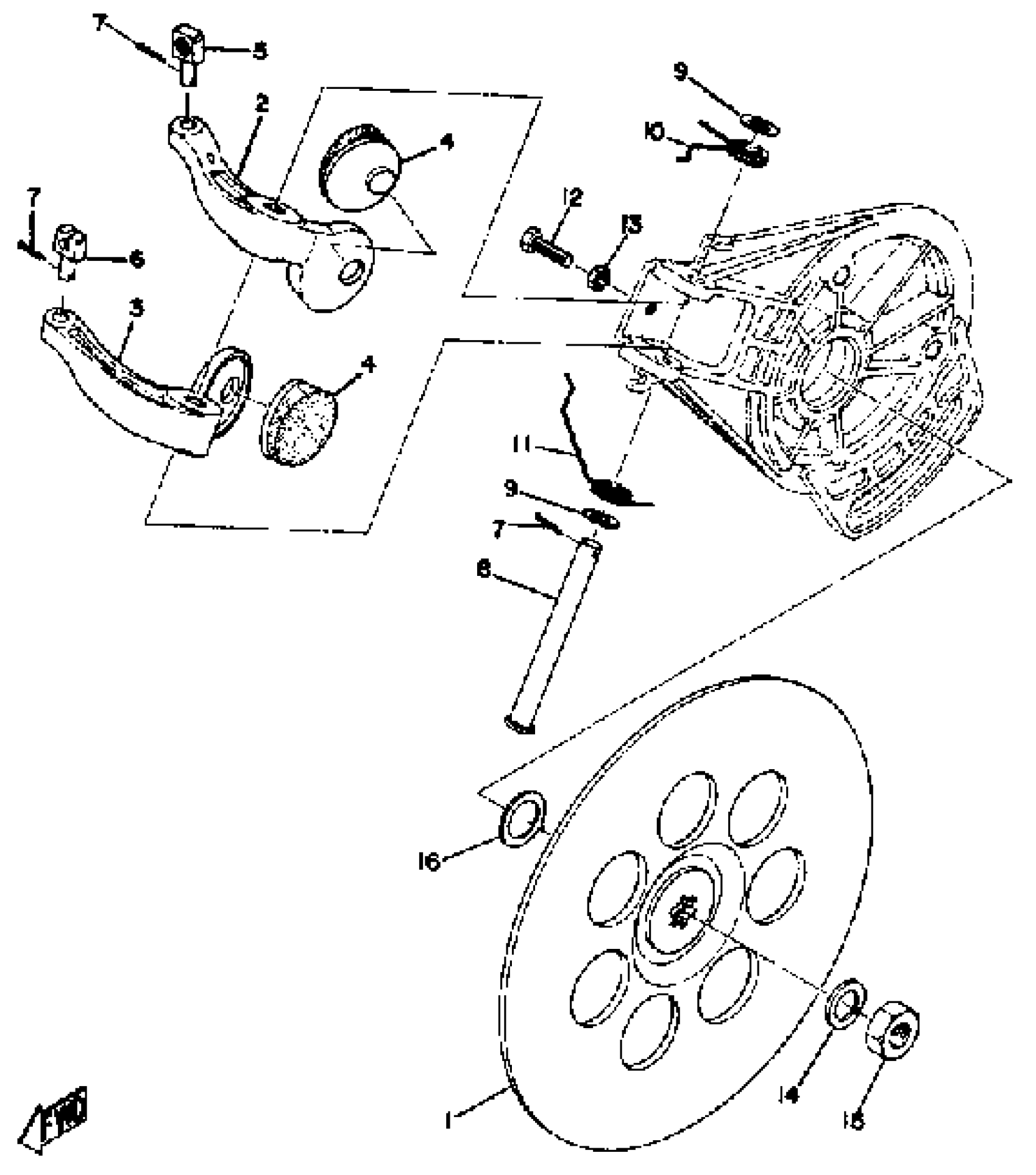

Find the part on the Brake diagram for your 1974 Yamaha GP246F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha GP246F Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC, BRAKE

845-25711-00-00

1
Out of stock

2

PAD, CALIPER (R.H.)

838-25740-00-00

1
Out of stock

3

BODY, CALIPER 1

838-25731-00-00

1
Out of stock

4

PAD, CALIPER

(826-25732-09-00)

1
Out of stock

5

PIN (810)

90249-06012-00

—

$9.91

In stock

6

PIN

90249-06009-00

1
Out of stock

7

PIN, COTTER

91490-20025-00

1

$1.31

In stock

8

PIN, W/ HOLE (8J2)

90240-08068-00

—

$5.29

In stock

9

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

10

SPRING, TORSION

(90508-29045-00)

1
Out of stock

11

SPRING, TORSION

(90508-29046-00)

1
Out of stock

12

BOLT HEXAGON

97001-05018-00

1
Out of stock

13

NUT, HEXAGON SMALL

95317-05700-00

1

$6.18

In stock

14

YBS67-12 WASHER,SPRING

92990-12100-00

1

$6.68

In stock

15

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

16

SHIM 1

150-17417-00-02

1
Out of stock

16

SHIM 1

(150-17417-00-03)

1
Out of stock
