1974 Yamaha GP246F Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1974 Yamaha GP246F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

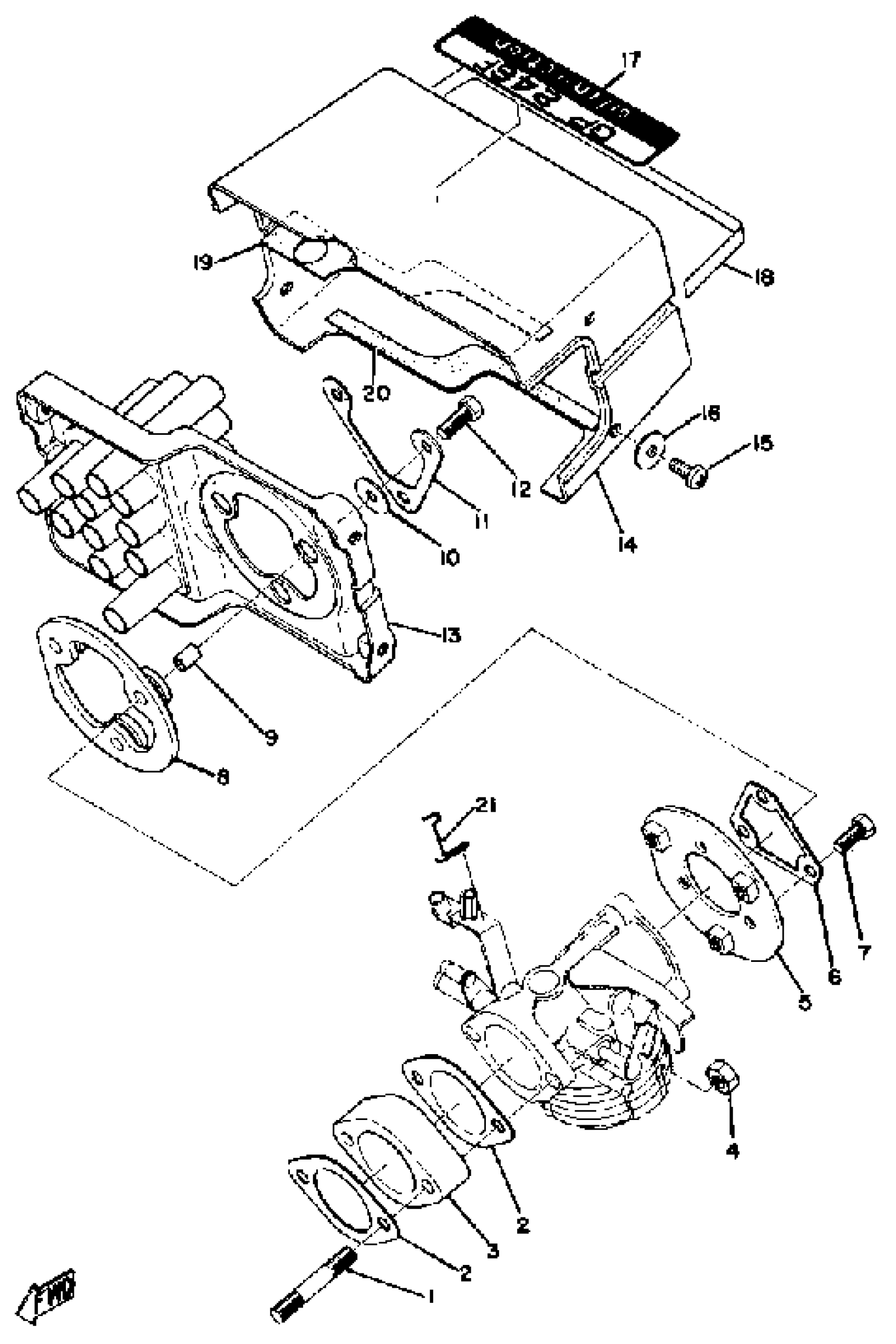

1974 Yamaha GP246F Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT, STUD

(90116-08056-00)

1
Out of stock

2

GASKET,MANIFOLD

881-13556-09-00

1
Out of stock

3

MANIFOLD, INTAKE

(881-13555-00-00)

1
Out of stock

4

. NUT

95380-08700-00

1

$3.07

In stock

5

PLATE

864-14477-01-00

1
Out of stock

6

WASHER

8F3-14598-00-00

1
Out of stock

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

8

GROMMET

(864-14435-00-00)

1
Out of stock

9

COLLAR

(90387-06244-00)

1
Out of stock

10

WASHER 2

(802-77179-00-00)

1
Out of stock

11

WASHER, LOCK

(864-14599-00-00)

1
Out of stock

12

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

13

SILENCER ASSEMBLY

(881-14403-00-00)

1
Out of stock

14

SILENCER, INTAKE 2

(867-14441-00-00)

1
Out of stock

15

SCREW, BINDING

98907-06016-00

1

$7.14

In stock

16

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

17

EMBLEM 1

(881-77451-00-00)

1
Out of stock

18

EMBLEM 2

853-77452-00-00

1
Out of stock

19

SEAL

(864-14457-00-00)

1
Out of stock

20

SEAL

(864-14467-00-00)

1
Out of stock

21

CLAMP, THROTTLE

822-41222-00-00

1
Out of stock
