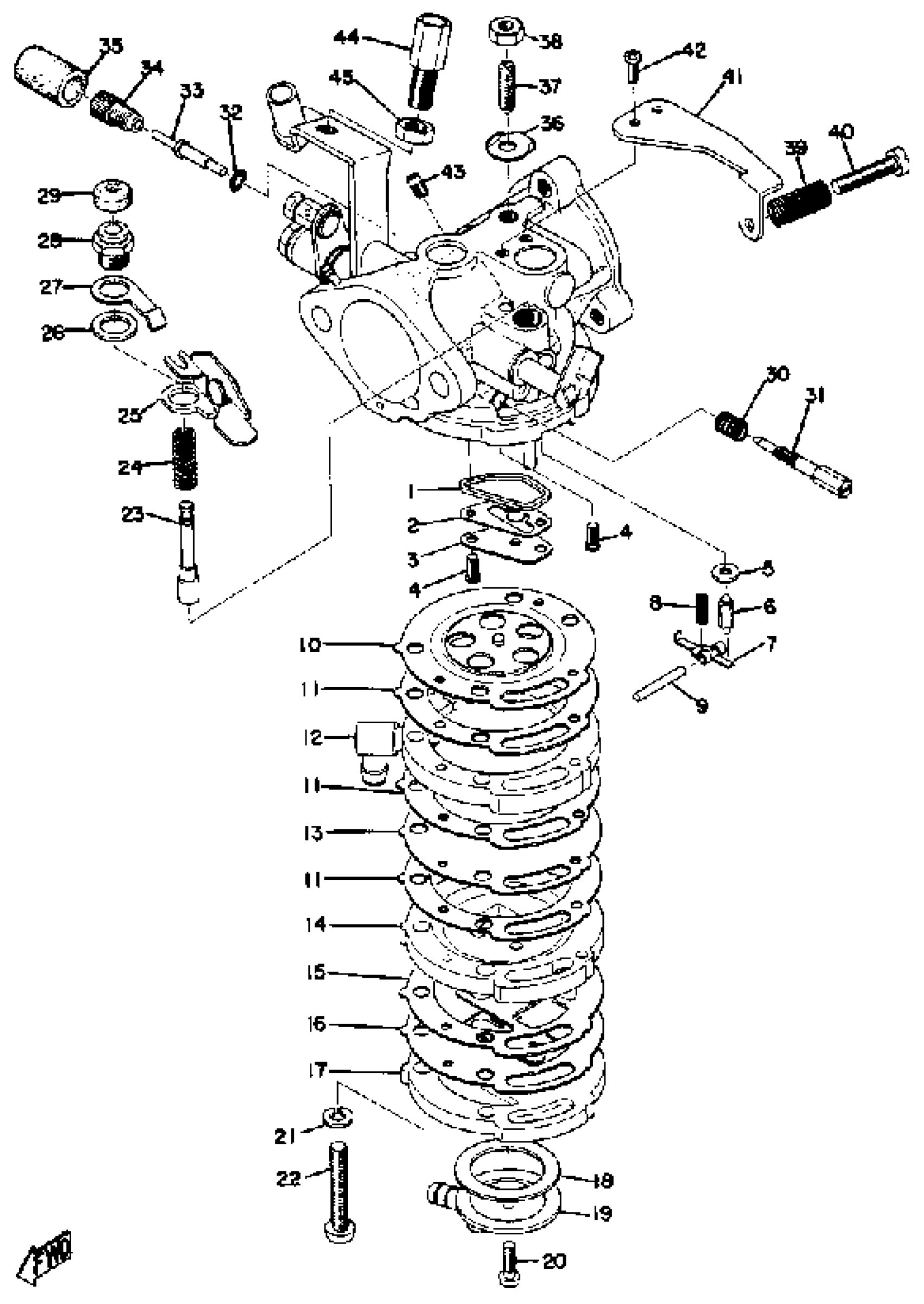

Find the part on the Carburetor diagram for your 1974 Yamaha GP246F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha GP246F Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET

(878-24468-00-00)

1
Out of stock

1

CARBURETOR ASSEMBLY 1

(881-14101-00-00)

1
Out of stock

2

VALVE, CHECK SEAT

(878-14272-00-00)

1
Out of stock

3

PLATE, NEEDLE FTNG

(878-14946-00-00)

1
Out of stock

4

SCREW, FLAT

98707-03008-00

1

$5.62

In stock

5

WASHER, NEEDLE VLV

(849-14195-00-00)

1
Out of stock

6

. NEEDLE VALVE ASSEMBLY

864-14190-15-00

1
Out of stock

7

ARM, DIAPHRAGM

(864-14387-00-00)

1
Out of stock

8

SPRING, DIAPHRAGM

(881-24423-00-00)

1
Out of stock

9

. PIN, FLOAT

439-14186-00-00

1

$12.49

In stock

10

. DIAPHRGM

849-24471-00-00

1
Out of stock

11

. GASKET, BODY

849-24434-00-00

1
Out of stock

12

BODY 1

(849-24412-00-00)

1
Out of stock

13

. DIAPHRAGM

849-24411-00-00

1
Out of stock

14

BODY 2

(849-24413-00-00)

1
Out of stock

15

. GASKET, BODY 2

849-24435-00-00

1
Out of stock

16

. VALVE, CHECK

849-24421-00-00

1
Out of stock

17

BODY 3

(849-24414-00-00)

1
Out of stock

18

GASKET

(878-24468-00-00)

1
Out of stock

19

. COVER

812-24452-00-00

1
Out of stock

20

. SCREW

812-24453-00-00

1
Out of stock

21

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

22

SCREW, PAN

98507-05035-00

—

$6.69

In stock

23

PLUNGER, STARTER

849-14171-00-00

1
Out of stock

24

SPRING, PLUNGER

156-14135-00-00

—

$7.72

In stock

25

LEVER, STARTER 1

(849-14175-00-00)

1
Out of stock

26

WASHER, STARTER LVR

(132-14179-00-00)

1
Out of stock

27

PLATE, STARTER LVR

(849-14178-00-00)

1
Out of stock

28

. CAP, PLUNGER

802-14174-00-00

1
Out of stock

29

COVER, PLUNGER CAP

(849-14173-00-00)

1
Out of stock

30

SPRING, PILOT ADJUSTING

(849-14212-00-00)

1
Out of stock

31

SCREW, AIR ADJUSTING

(849-14123-00-00)

1
Out of stock

32

O-RING

(881-14147-00-00)

1
Out of stock

33

JET, MAIN #125

(849-14143-25-00)

1
Out of stock

33

JET, MAIN #130

(849-14143-26-00)

1
Out of stock

33

JET, MAIN #135

(849-14143-27-00)

1
Out of stock

33

JET, MAIN #140

(849-14143-28-00)

1
Out of stock

33

JET, MAIN #145

(849-14143-29-00)

1
Out of stock

34

SCREW, GUIDE

(849-14245-00-00)

1
Out of stock

35

CAP

(849-14169-00-00)

1
Out of stock

36

WASHER

(849-14596-00-00)

1
Out of stock

37

SCREW

(849-24453-00-00)

1
Out of stock

38

NUT

(849-14595-00-00)

1
Out of stock

39

SPRING, AIR ADJUSTING

(849-14134-00-00)

1
Out of stock

40

SCREW, THROTTLE

(864-14922-00-00)

1
Out of stock

41

PLATE

(881-14243-00-00)

1
Out of stock

42

SCREW

(878-14216-00-00)

1
Out of stock

43

JET, PILOT #75

(620-14142-15-00)

1
Out of stock

44

SCREW, CABLE ADJUSTING

(881-14124-00-00)

1
Out of stock

45

NUT

(878-14594-00-00)

1
Out of stock
