Description

Price

1

GASKET, EXHAUST PIPE

89A-14613-00-00

$16.49

2

NUT, RING

(853-14612-00-00)

Unavailable

3

BOLT (682)

97013-08025-00

$8.49

4

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

5

GASKET, EXST PIPE

(812-14623-00-00)

Unavailable

6

SPRING, HOOK (864)

90506-20074-00

$9.49

7

EXHAUST PIPE ASSEMBLY L

(881-14610-01-00)

Unavailable

8

SPRING, MUFFLER

821-14773-00-00

$18.49

9

MUFFLER ASSEMBLY L

(881-14710-00-00)

Unavailable

10

PROTECTOR, MUFF 1

(881-14718-00-00)

Unavailable

11

STAY, MUFFLER 1

(881-14771-00-00)

Unavailable

12

STAY, MUFFLER 2

(881-14772-00-00)

Unavailable

13

PLATE, MUFFLER

(881-14794-00-00)

Unavailable

14

WASHER

(881-14759-00-00)

Unavailable

15

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

16

BOLT, HEXAGON

97013-08016-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

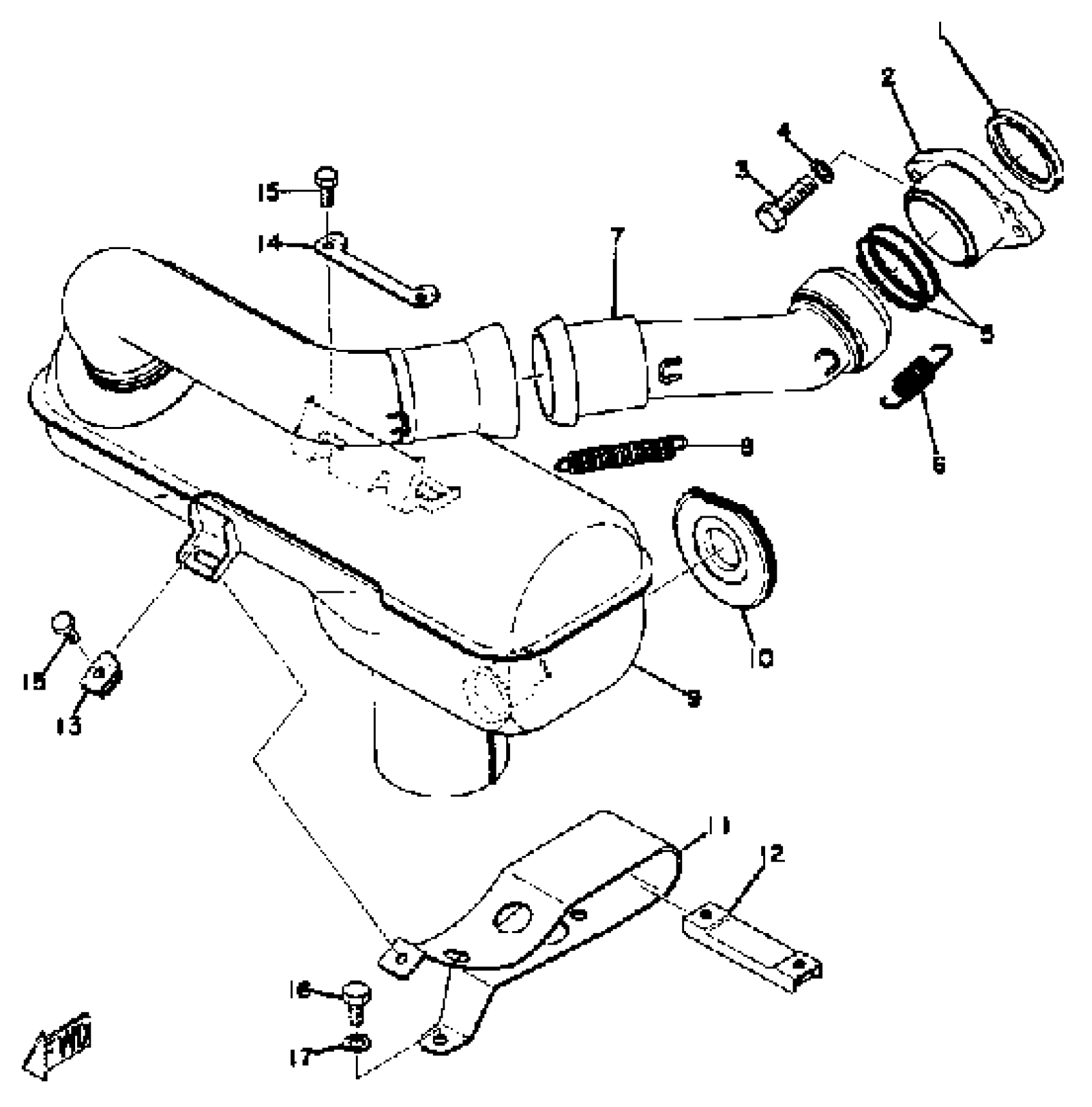

Yamaha GP246F 1974 EXHAUST Diagram

GASKET, EXHAUST PIPE

NUT, RING

BOLT (682)

YBS67-8 WASHER, SPRING

GASKET, EXST PIPE

SPRING, HOOK (864)

EXHAUST PIPE ASSEMBLY L

SPRING, MUFFLER

MUFFLER ASSEMBLY L

PROTECTOR, MUFF 1

STAY, MUFFLER 1

STAY, MUFFLER 2

PLATE, MUFFLER

WASHER

BOLT, HEXAGON DEEP RECESS

BOLT, HEXAGON

YBS67-8 WASHER, SPRING
