1974 Yamaha GP246F Crankcase-Cylinder Diagram

← All diagrams

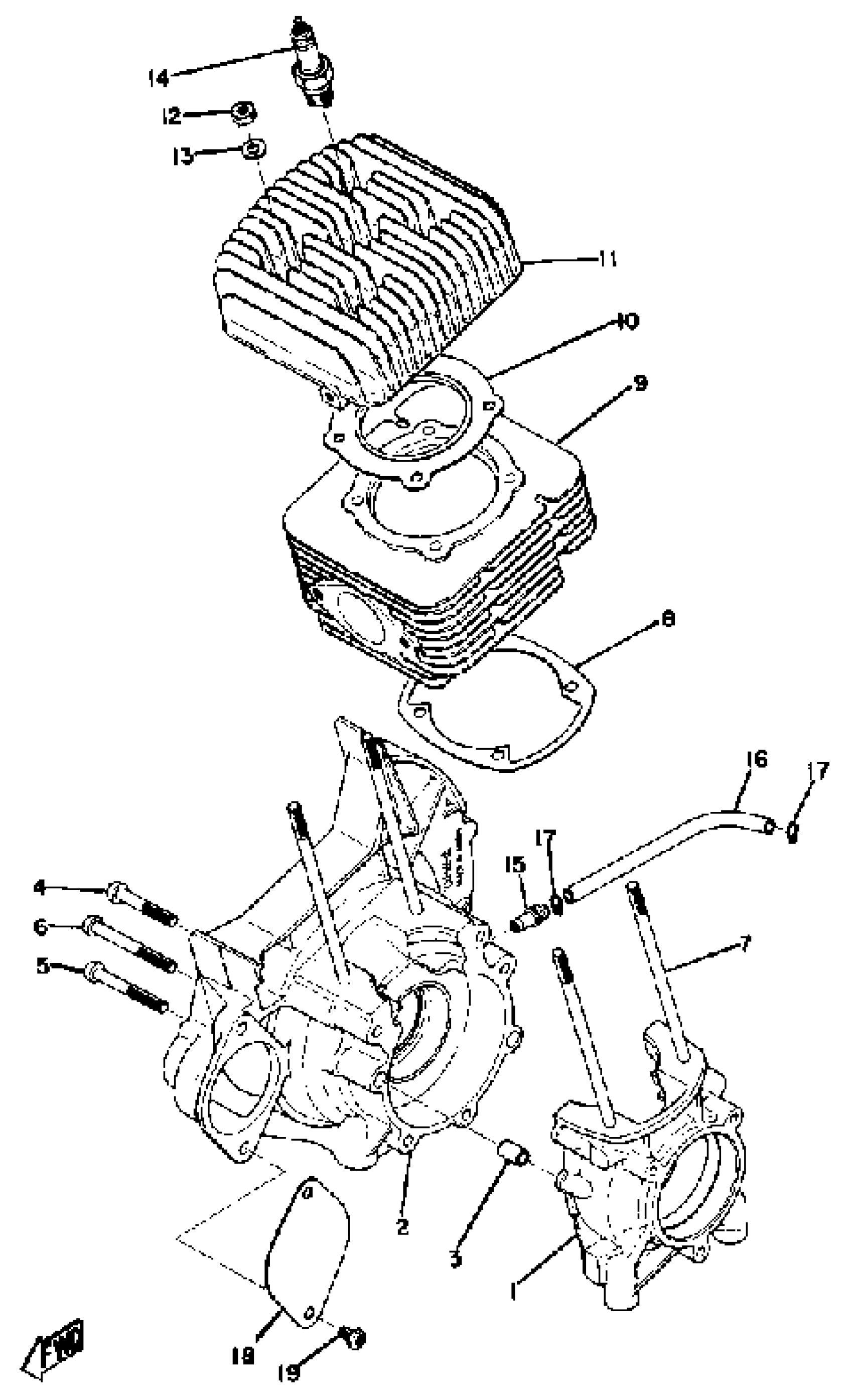

Find the part on the Crankcase-Cylinder diagram for your 1974 Yamaha GP246F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha GP246F Crankcase-Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

(881-15111-00-00)

1
Out of stock

2

CRANKCASE 2

(881-15121-00-00)

1
Out of stock

3

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

4

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

5

SCREW, PANHED (GC2)

98580-06555-00

1
Out of stock

6

SCREW PAN HEAD

98580-06565-00

—
Out of stock

7

BOLT, STUD

90116-08079-00

1
Out of stock

8

GASKET, CYLINDER

881-11351-02-00

1
Out of stock

9

CYLINDER 1

881-11311-00-00

1
Out of stock

10

GASKET, CYL HEAD 1

8F3-11181-01-00

1
Out of stock

11

HEAD, CYLINDER 1

(881-11111-00-00)

1
Out of stock

12

NUT(6L2)

95333-08600-00

1

$3.20

In stock

13

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

14

NGK B7HV 4PK

NGK-B7HV0-00-00

1
Out of stock

15

JOINT, BREATHER

J38-11116-00-00

1

$2.77

In stock

16

HOSE

(90445-10129-00)

1
Out of stock

17

CLIP

90467-090A2-00

—

$2.51

In stock

18

PLATE

(881-12633-00-00)

1
Out of stock

19

SCREW, PAN

98507-08010-00

—
Out of stock
