1974 Yamaha GP246F Crank-Piston Diagram

← All diagrams

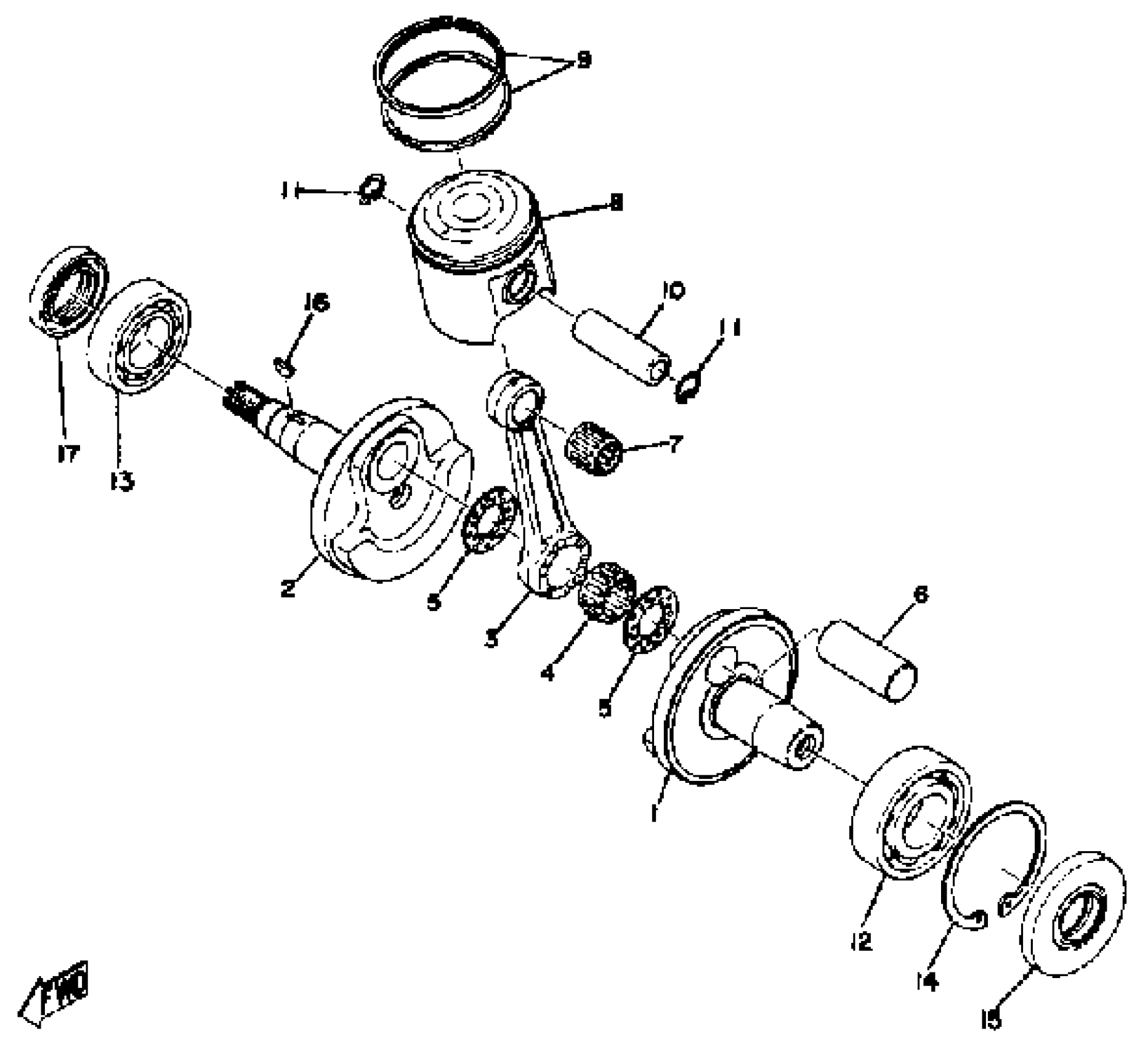

Find the part on the Crank-Piston diagram for your 1974 Yamaha GP246F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha GP246F Crank-Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

881-11400-01-00

1
Out of stock

1

CRANK 1

(881-11412-00-00)

1
Out of stock

2

CRANK 2

(881-11422-00-00)

1
Out of stock

3

. ROD, CONNECTING

881-11651-00-00

1
Out of stock

4

BEARING

93310-424E8-00

1

$19.49

In stock

5

WASHER (152-11685-00)

90209-24073-00

1

$10.08

In stock

6

. PIN, CRANK 1

857-11681-00-00

1
Out of stock

7

1

$32.87

In stock

8

PISTON STD

881-11631-00-96

1
Out of stock

8

PISTON 1 O/S 0.25

881-11635-00-00

1
Out of stock

8

PISTON 2 O/S 0650

881-11636-01-00

1
Out of stock

9

PISTON RINGSET STD

839-11610-00-00

1
Out of stock

9

PISTON RINGSET 1ST

839-11610-10-00

1
Out of stock

9

PISTON RINGSET 2ND

839-11610-20-00

1
Out of stock

10

PIN, PISTON

818-11633-00-00

1

$28.05

In stock

11

CLIP 6041163400

93450-20026-00

—

$5.10

In stock

12

BEARING(3KW)

93306-30630-00

—

$64.14

In stock

13

BEARING (5X5)

93306-20627-00

—

$66.08

In stock

14

CIRCLIP, R-TYPE

(93420-72023-00)

1
Out of stock

15

OIL SEAL, SD-TYPE

93102-30129-00

1
Out of stock

16

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

17

OIL SEAL,SD-TYPE

93102-30128-00

—

$12.58

In stock
