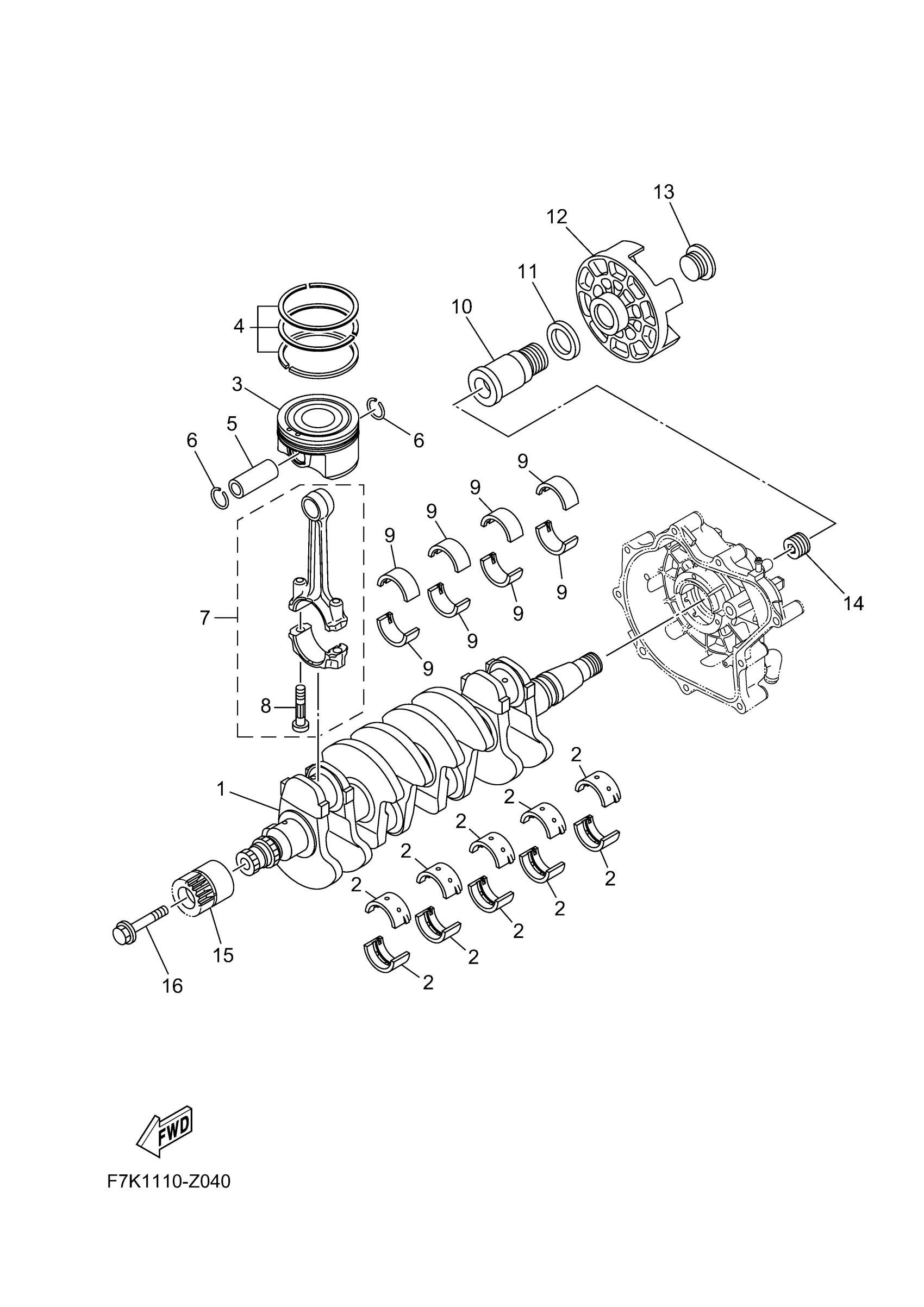

Yamaha GP1900BC (GP HO) F7L6 2026 CRANKSHAFT & PISTON Diagram

#

Description
Price

1

CRANKSHAFT

6LE-11411-00-00

$2,656.05

2

PLANE BEARING, CRA

6LE-11416-00-00

$15.89

2

PLANE BEARING, CRA

6LE-11416-10-00

$20.99

2

PLANE BEARING, CRA

6LE-11416-20-00

$16.99

2

PLANE BEARING, CRA

6LE-11416-30-00

$15.89

2

PLANE BEARING, CRA

6LE-11416-40-00

$20.99

3

PISTON (STD)

6LE-11631-00-B0

$181.80

4

PISTON RING SET (S

6LE-11603-00-00

$63.62

5

PIN, PISTON

6ET-11633-00-00

$26.30

6

CIRCLIP

93450-22174-00

$0.91

7

CONNECTING ROD ASSY

6S5-11650-10-00

$185.06

8

. BOLT, CONNECTING ROD

6S5-11654-10-00

$5.92

9

PLANE BEARING, CON

6LE-11656-00-00

$16.50

9

PLANE BEARING, CON

6LE-11656-10-00

$13.70

9

PLANE BEARING, CON

6LE-11656-20-00

$12.96

9

PLANE BEARING, CON

6LE-11656-30-00

Unavailable

10

SHAFT, TRANSFER

6S5-17572-01-00

$252.88

11

WASHER

6S5-12289-00-00

$24.13

12

FLANGE, COUPLING

6S5-45813-01-00

Unavailable

13

HOLDER 2

6S5-17525-01-00

$76.99

14

NUT, SPECIAL

6S5-11459-01-00

$37.49

15

GEAR, TRANSFER DRI

6BH-17586-11-00

$187.86

16

BOLT

6S5-17031-00-00

$34.75
