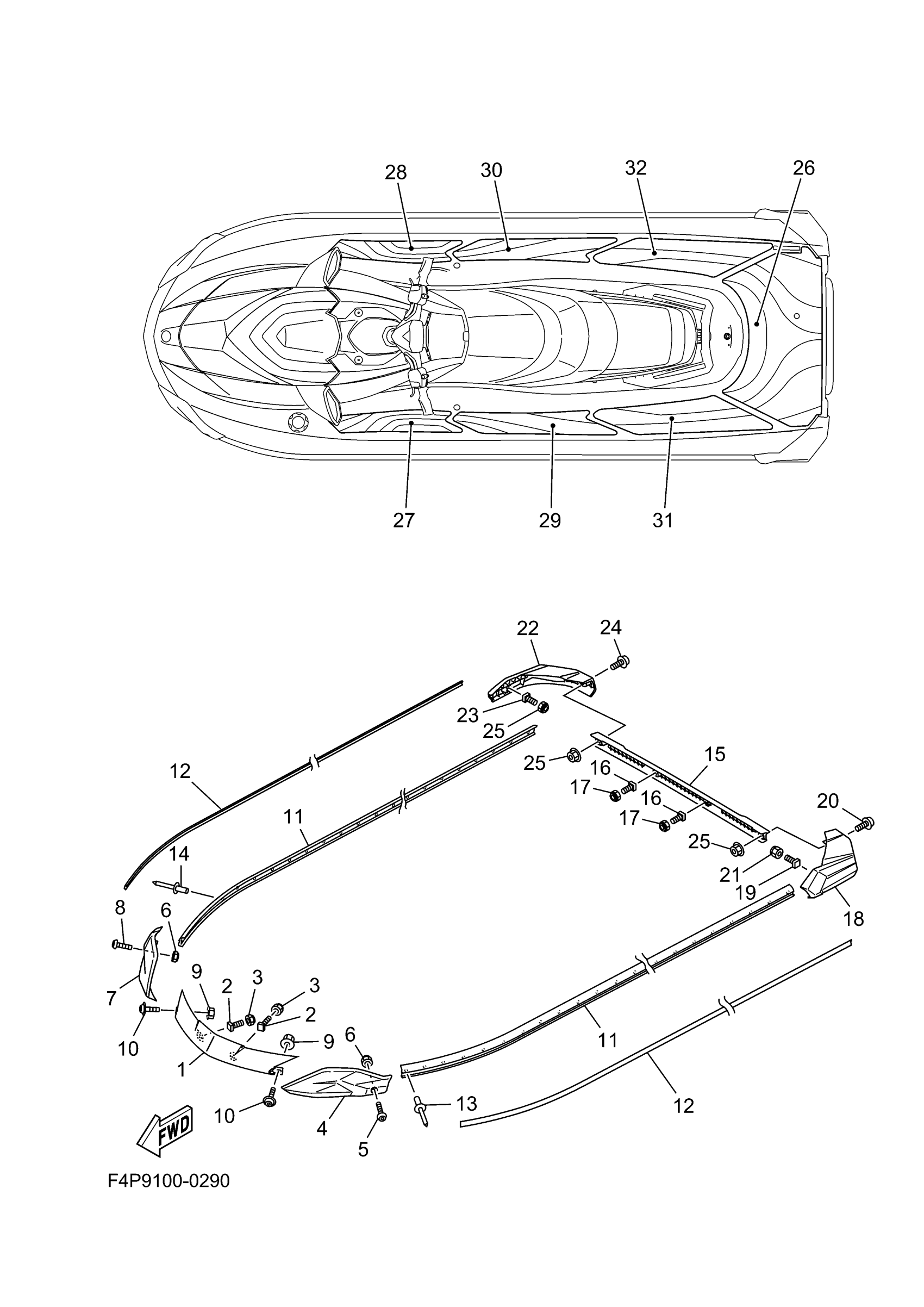

Yamaha GP1900BB (GP HO) F7L4 2025 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F4P-U2511-00-00

$21.95

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

JOINT, GUNWALE LH

F4P-U252E-00-00

$22.25

5

SCREW

F4P-U7823-00-00

$1.37

6

NUT, LOCK

F2N-U142L-00-00

$1.00

7

JOINT, GUNWALE RH

F4P-U252F-00-00

$23.67

8

SCREW

F4P-U7823-00-00

$1.37

9

NUT, LOCK

F2N-U142L-00-00

$1.00

10

SCREW

F3X-U7823-12-00

$1.25

11

GUNWALE, SIDE

F4P-U2512-00-00

$37.78

12

INNER,GUNWALE

F4P-U2519-50-00

$41.49

13

RIVET

F7K-U1454-00-00

$4.46

14

RIVET

F7K-U1454-00-00

$4.46

15

COVER, GUNWALE 1

F4P-U252C-02-00

$27.13

16

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

17

NUT, LOCK

F2N-U142L-00-00

$1.00

18

GUNWALE, STERN 1

F4P-U251D-00-00

$18.52

19

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

20

SCREW

F4P-U7823-00-00

$1.37

21

NUT, LOCK

F2N-U142L-00-00

$1.00

22

GUNWALE, STERN 2

F4P-U251E-00-00

$10.75

23

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

24

SCREW

F4P-U7823-00-00

$1.37

25

NUT, LOCK

F2N-U142L-00-00

$1.00

26

MAT, UPPER

F4M-U3581-00-00

Unavailable

27

MAT, STEP 1

F4P-U351H-01-00

$46.95

28

MAT, STEP 2

F4P-U351J-01-00

$41.63

29

MAT, STEP 3

F4P-U351K-01-00

$45.44

30

MAT, STEP 4

F4P-U351M-01-00

$45.44

31

MAT, STEP 5

F4P-U351N-01-00

$51.50

32

MAT, STEP 6

F4P-U351P-01-00

$45.44
