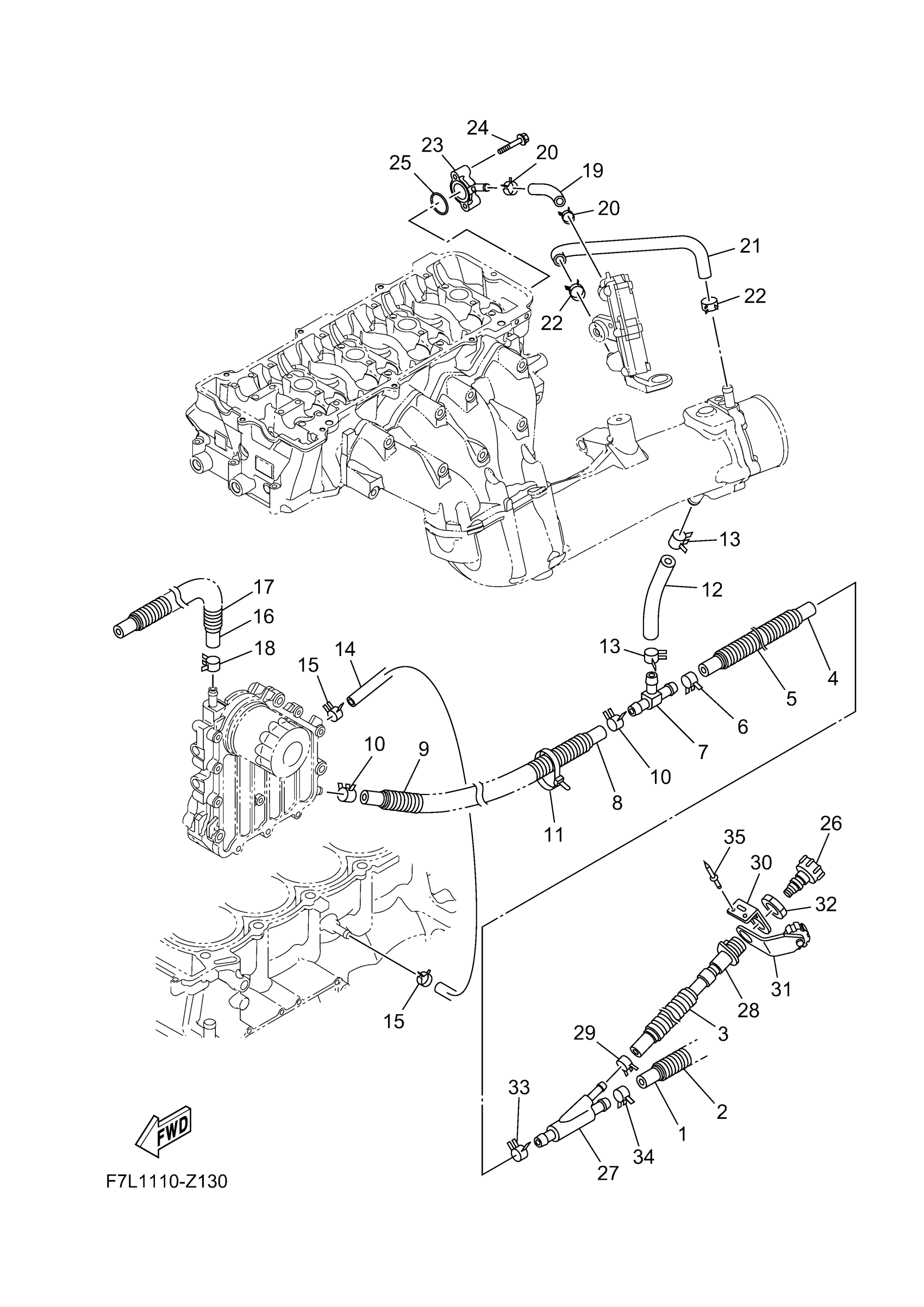

Yamaha GP1900BB (GP HO) F7L4 2025 EXHAUST 2 Diagram

#

Description
Price

1

HOSE (L250)

90445-21806-00

$12.49

2

TUBE

F2T-U773D-20-00

Unavailable

3

TUBE (L485)

90447-19801-00

$3.46

4

HOSE 2

6S5-1243E-01-00

$19.23

5

TUBE

F2T-U773D-00-00

$1.32

6

CLIP

90467-200A3-00

$6.07

7

JOINT, HOSE 3

6BH-12584-00-00

$4.55

8

HOSE (L400)

90445-18012-00

$18.99

9

TUBE (L260)

90447-19005-00

$3.53

10

CLIP

90467-160A0-00

$3.03

11

CLAMP(3XW)

90464-35132-00

$6.57

12

HOSE 6

6S5-12589-01-00

Unavailable

13

CLIP

90467-200A3-00

$6.07

14

HOSE 5

6LE-1244H-00-00

$30.87

15

CLIP

90467-141A3-00

$2.65

16

HOSE 5

6CN-12588-00-00

Unavailable

17

TUBE (L860)

90447-19021-00

$6.18

18

CLIP

90467-160A0-00

$3.03

19

HOSE (L100)

90445-16027-00

Unavailable

20

CLIP

90467-141A3-00

$2.65

21

HOSE 1

6LE-12576-00-00

Unavailable

22

CLIP

90467-160A0-00

$3.03

23

COVER 1

6LE-1246A-00-00

Unavailable

24

BOLT, FLANGE

90105-06035-00

$2.01

25

O-RING

93210-30M31-00

$8.73

26

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.85

27

JOINT, HOSE 1

60E-12581-00-00

$11.77

28

JOINT ASSY

63M-12580-10-00

$52.93

29

CLIP

90467-150A5-00

$2.56

30

STAY

60E-12443-00-00

$3.03

31

CAP,1

6EY-84385-00-00

$10.63

32

NUT

EU0-61652-00-00

$11.77

33

CLIP

90467-200A3-00

$6.07

34

CLIP

90467-200A3-00

$6.07

35

RIVET (EU0)

90267-48938-00

$4.85
