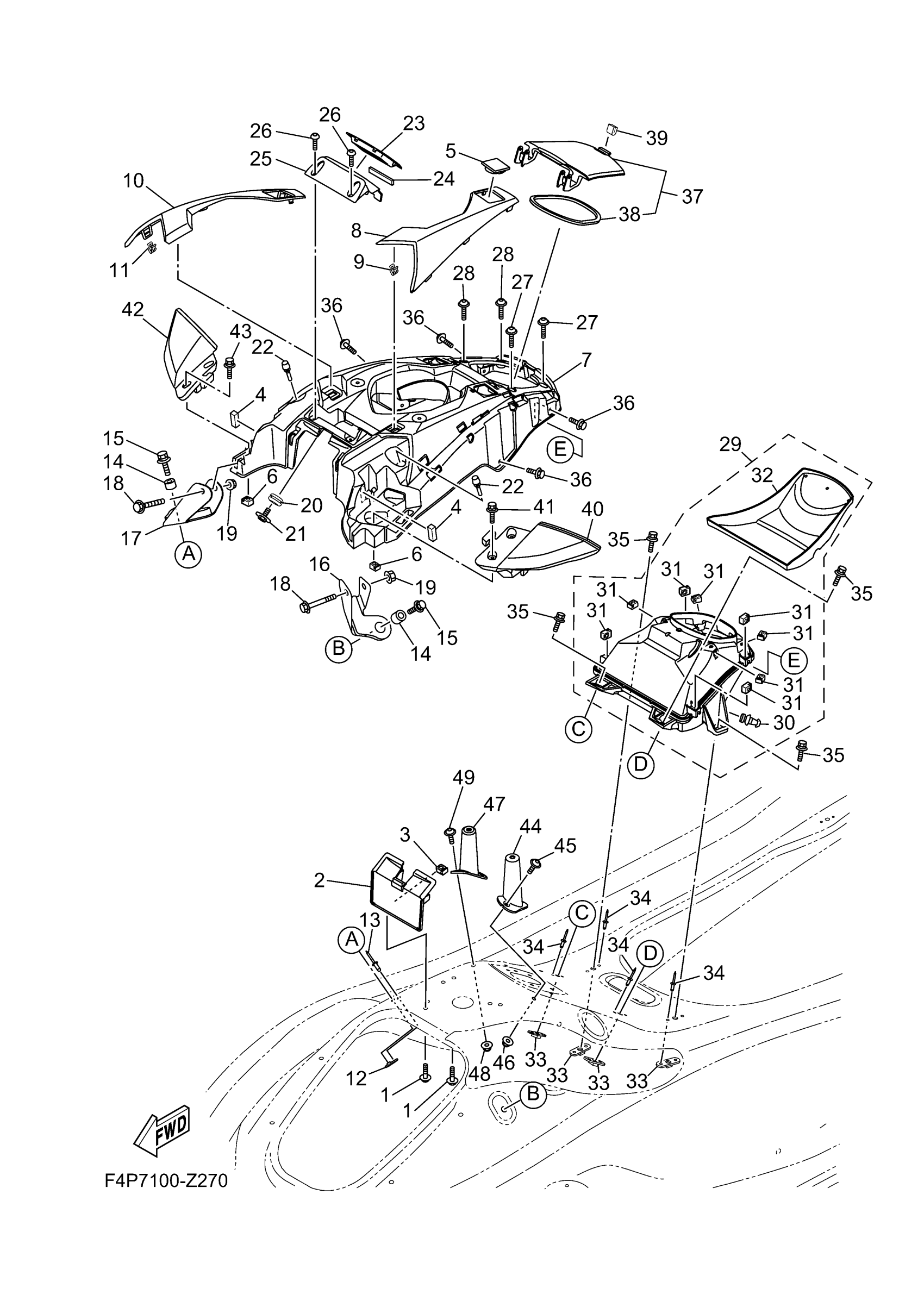

Find the part on the Engine Hatch 2 diagram for your 2025 Yamaha GP Ho (GP1900BB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Yamaha GP Ho (GP1900BB) Engine Hatch 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT, WITH WASHER

90119-06880-00

1
Out of stock

2

HOOK,LID LOCK

F4P-U517F-00-00

1
Out of stock

3

NUT

F3X-U517E-00-00

1
Out of stock

4

PACKING

F4P-U1743-00-00

1
Out of stock

5

CAP

F4P-U5568-00-00

1
Out of stock

6

NUT

F3X-U517E-00-00

1
Out of stock

7

COVER, CENTER

F4P-U5554-00-00

1
Out of stock

8

ORNAMENT LH

F4P-U517W-01-98

1
Out of stock

8

ORNAMENT LH

F4P-U517W-01-P9

1
Out of stock

9

CLIP

F3Y-U153K-00-00

1
Out of stock

10

ORNAMENT RH

F4P-U517X-01-98

1
Out of stock

10

ORNAMENT RH

F4P-U517X-01-P9

1
Out of stock

11

CLIP

F3Y-U153K-00-00

1
Out of stock

12

PLATE, FIX

F2X-U5175-00-00

1
Out of stock

13

RIVET (EU0)

90267-48938-00

1
Out of stock

14

SPACER

F4P-U5239-01-00

—
Out of stock

15

BOLT, WITH WASHER

90119-06820-00

1
Out of stock

16

BRACKET ASSY.,1

F4P-UF88B-00-00

1
Out of stock

17

BRACKET ASSY.,2

F4P-UF88C-00-00

1
Out of stock

18

BOLT, FIX

F4P-U5176-00-00

1
Out of stock

19

NUT, LOCK

F2N-U142L-00-00

1
Out of stock

20

. GROMMET

90480-19800-00

1
Out of stock

21

BOLT, WITH WASHER

90119-05803-00

1
Out of stock

22

. CUSHION, RUBBER

F1W-U3768-01-00

1
Out of stock

23

ORNAMENT, METER

F4P-U826F-01-00

—
Out of stock

24

DAMPER 2

F0X-U515E-02-00

—
Out of stock

25

COVER METER

F4P-U8262-00-00

1
Out of stock

26

SCREW

F2S-U13C1-00-00

1
Out of stock

27

SCREW

F3X-U7823-12-00

1
Out of stock

28

SCREW

F3X-U7823-12-00

1
Out of stock

29

GLOVE BOX HATCH ASSY

F4P-U1708-00-00

1
Out of stock

30

. SEAL

F3X-U2723-00-00

1
Out of stock

31

NUT

F3X-U517E-00-00

1
Out of stock

32

. INNER, CASE

F4P-U591L-00-00

1
Out of stock

33

BRACKET

F2C-U826C-00-00

1
Out of stock

34

RIVET 1

F4P-U516R-01-00

1
Out of stock

35

BOLT, WITH WASHER

90119-08828-00

1
Out of stock

36

BOLT

F4P-U1355-00-00

1
Out of stock

37

GLOVE BOX COVER ASSY

F4P-U4705-00-00

1
Out of stock

38

. PACKING CASE

F4P-U519D-00-00

1
Out of stock

39

PACKING 4

F4P-U266C-00-00

—
Out of stock

40

MIRROR ASSY. 1

F4P-U590D-01-00

1
Out of stock

40

MIRROR ASSY. 1

F4P-U590D-70-00

—
Out of stock

41

BOLT, WITH WASHER

90119-06304-00

1
Out of stock

42

MIRROR ASSY. 2

F4P-U590E-01-00

1
Out of stock

42

MIRROR ASSY. 2

F4P-U590E-70-00

—
Out of stock

43

BOLT, WITH WASHER

90119-06304-00

1
Out of stock

44

RFM.,DASH BOARD 1

F4P-U974A-00-00

1
Out of stock

45

NUT, LOCK

F2N-U142L-00-00

1
Out of stock

46

SCREW

F3X-U7823-12-00

1
Out of stock

47

RFM.,DASH BOARD 2

F4P-U974B-00-00

1
Out of stock

48

NUT, LOCK

F2N-U142L-00-00

1
Out of stock

49

SCREW

F3X-U7823-12-00

1
Out of stock
