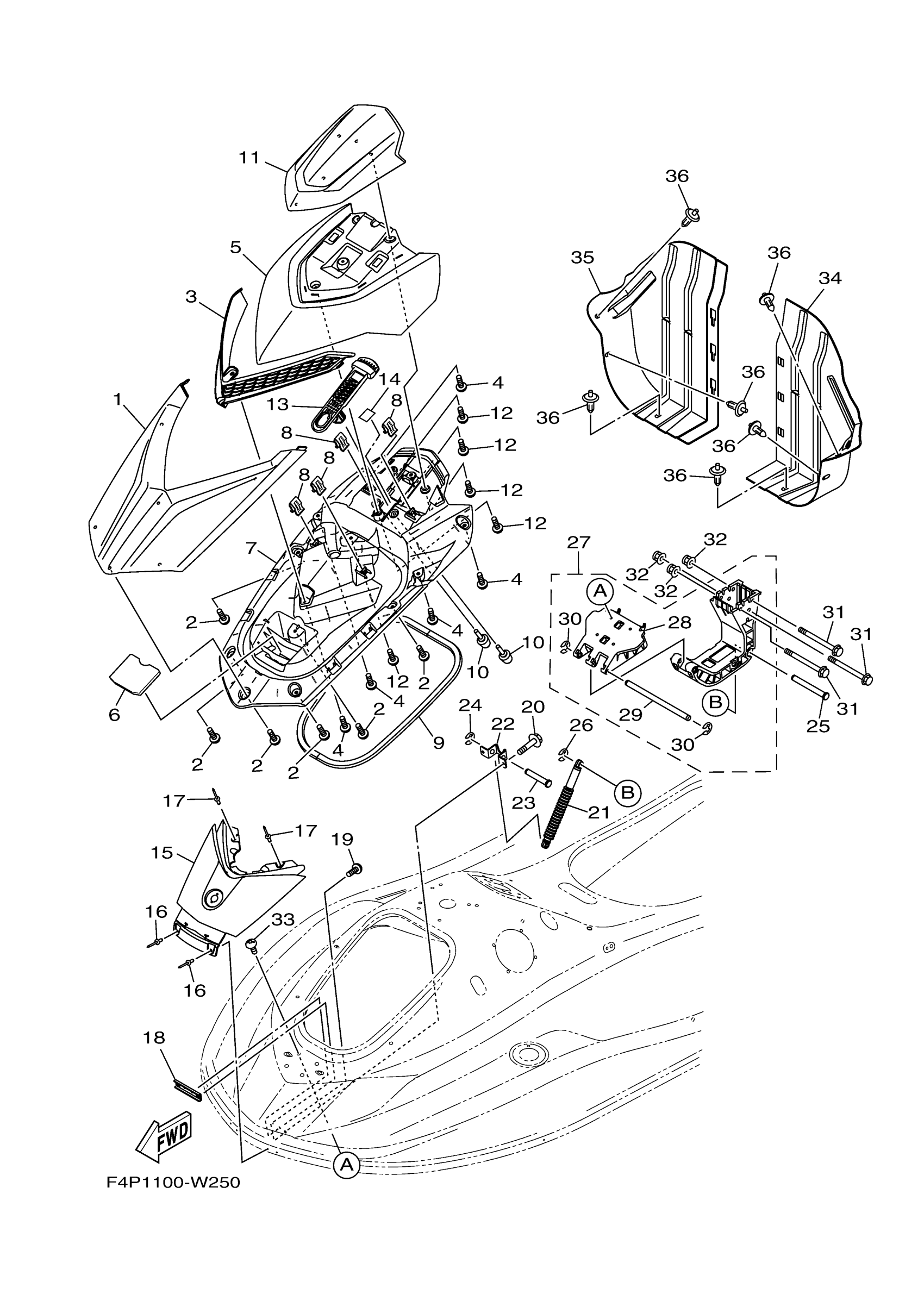

Yamaha GP1900BB (GP HO) F7L4 2025 ENGINE HATCH 1 Diagram

#

Description
Price

1

LID, ENGINE ROOM (

F4P-U517B-01-98

$152.22

1

LID, ENGINE ROOM

F4P-U517B-01-P8

$135.81

2

SCREW

F2S-U13C1-00-00

$2.52

3

ORNAMENT, CENTER

F4P-U517V-00-00

$20.09

4

SCREW

F2S-U13C1-00-00

$2.52

5

VISOR

F4P-U515N-01-98

$149.24

5

VISOR

F4P-U515N-01-P9

$94.01

6

STOPPER, PACKING

F4P-U7462-01-00

$5.00

7

INNER, ENGINE HATC

F4P-U519G-01-00

$128.34

8

CLIP

F3Y-U153K-00-00

$1.37

9

PACKING 1

F4P-U2663-01-00

$31.33

10

. CUSHION, RUBBER

F1W-U3768-01-00

$1.51

11

VISOR 2 (LGB)

F4P-U515P-01-98

$120.88

11

VISOR, 2

F4P-U515P-01-P8

$94.01

12

SCREW

F2S-U13C1-00-00

$2.52

13

LOCK, LID

F4P-U517C-00-00

$7.46

14

PACKING

F2C-U1743-00-00

$2.00

15

COVER, FRONT (LGB)

F4P-U513M-01-98

Unavailable

15

COVER, FRONT

F4P-U513M-01-P8

Unavailable

16

RIVET, BLIND

90267-489U8-00

$1.37

17

RIVET, BLIND

90267-48806-00

$2.16

18

PLATE, BASE 2

F2S-U8592-00-00

$5.75

19

RIVET (EU0)

90267-48938-00

$4.72

20

BOLT, WITH WASHER

90119-06820-00

$3.65

21

DAMPER 1

F4P-U515D-01-00

Unavailable

22

BRACKET, DAMPER 1

F4P-UFRV1-00-00

$29.09

23

CLEVIS

F4P-U7243-00-00

$86.55

24

. E-RING

F4P-U515C-00-00

$0.90

25

CLEVIS 1

F4P-UF8DM-00-00

$17.90

26

. E-RING

F4P-U515C-00-00

$0.90

27

HINGE ASSY.

F4P-U515A-00-00

$91.03

28

. PLATE, HINGE LID

F4P-U518E-00-00

$32.82

29

. ROD

F4P-U7256-00-00

$4.03

30

. E-RING

F4P-U515C-00-00

$0.90

31

BOLT, STUD 1

F4P-U4445-00-00

$4.18

32

NUT, LOCK

F3Y-U142L-00-00

$2.66

33

BOLT, HEXAGON SOCKET BUTTON

90111-06873-00

$5.23

34

LOCKER,BOW

F4P-U475B-00-00

$26.85

35

PLATE, LOKER BOW

F4P-U475F-00-00

$27.60

36

RIVET

F4P-U1454-00-00

$1.01
