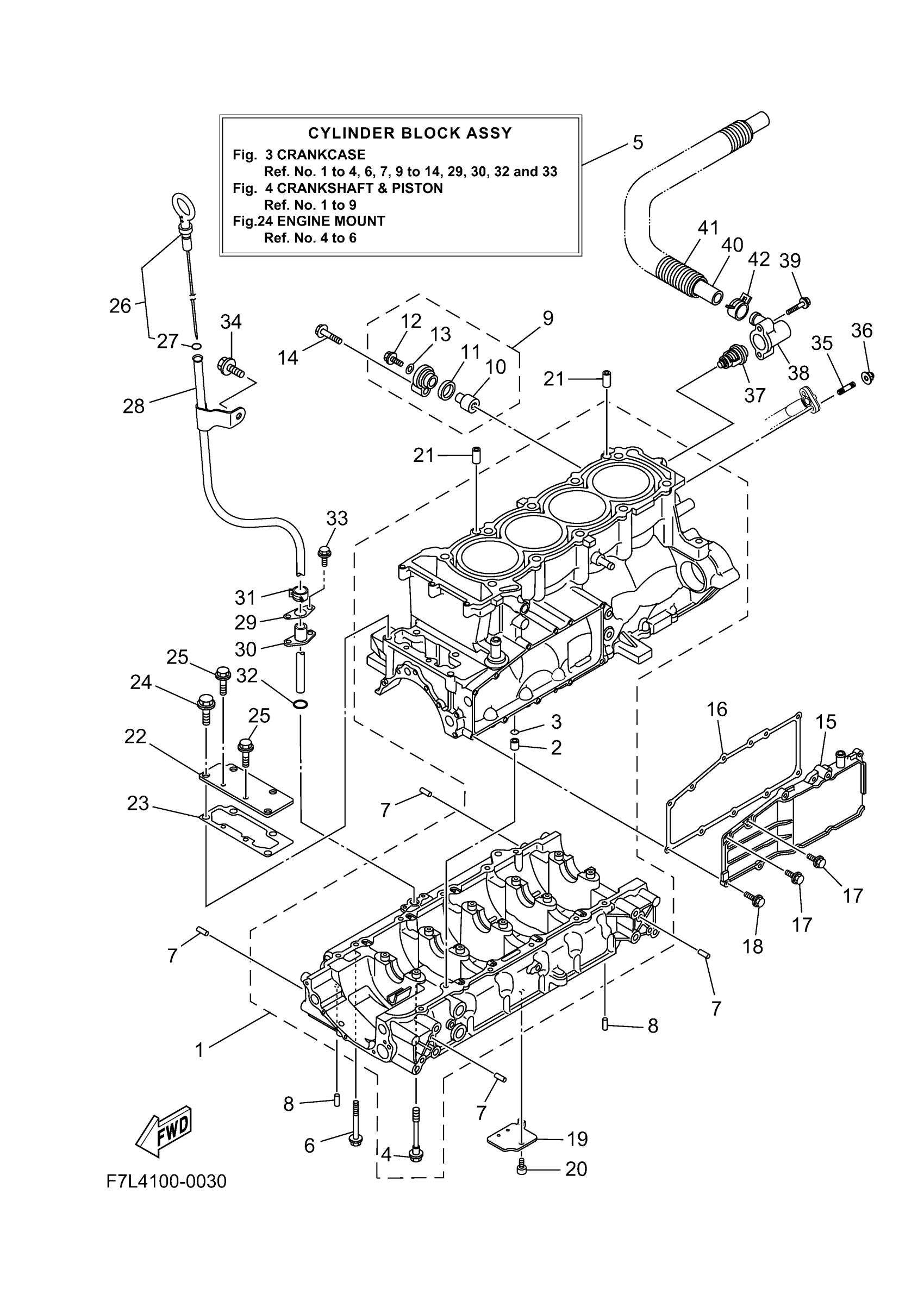

Yamaha GP1900BB (GP HO) F7L4 2025 CRANKCASE Diagram
#
4
. BOLT, FLANGE
90105-10071-00
Unavailable
8
PIN, DOWEL
93604-10M03-00
Unavailable
10
. ANODE
68V-11325-02-00
Unavailable
11
GROMMET, ANODE
67F-11328-01-00
Unavailable
13
. GASKET
90430-06M03-00
Unavailable
14
BOLT, HEXAGON W/W DEEP RECESS
97E95-08540-00
Unavailable
15
COVER
6S5-1131M-10-8P
Unavailable
16
. GASKET
6BH-13557-00-00
Unavailable
17
BOLT, FLANGE DEEP
95E34-06014-00
Unavailable
18
BOLT, FLANGE DEEP
95E34-06020-00
Unavailable
19
PLATE, BAFFLE LOWER
6S5-13337-10-00
Unavailable
20
BOLT,SOCKET
91317-06012-00
Unavailable
22
COVER, JOINT
6BH-1131C-00-00
Unavailable
23
. GASKET, COVER
6BH-1131B-00-00
Unavailable
24
BOLT, FLANGE(4HM)
95814-08020-00
Unavailable
25
BOLT, FLANGE
95814-06016-00
Unavailable
26
PLUG, OIL LEVEL
6ET-15362-00-00
Unavailable
27
O-RING (26H)
93210-06632-00
Unavailable
28
PIPE, OIL LEVEL
6LE-8572F-00-00
Unavailable
29
. PLATE
6BH-1319K-00-00
Unavailable
30
SPACER
6CS-85516-00-00
Unavailable
31
. CLIP
90467-150A1-00
Unavailable
32
. O-RING
93210-12016-00
Unavailable
33
BOLT
90109-06268-00
Unavailable
34
BOLT, WASHER BASED
90105-08021-00
Unavailable
35
BOLT, STUD
90116-06051-00
Unavailable
36
NUT, CROWN (35R)
90176-06047-00
Unavailable
37
THERMOSTAT
6D3-12411-00-00
Unavailable
38
COVER, THERMOSTAT
6BH-12413-00-00
Unavailable
39
BOLT, FLANGE
90105-06035-00
Unavailable
40
HOSE 3
6S5-12578-00-00
Unavailable
41
TUBE (L850)
90447-28008-00
Unavailable
42
CLIP
90467-240A0-00
Unavailable
