2025 Yamaha GP Ho (GP1900BB) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 2025 Yamaha GP Ho (GP1900BB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

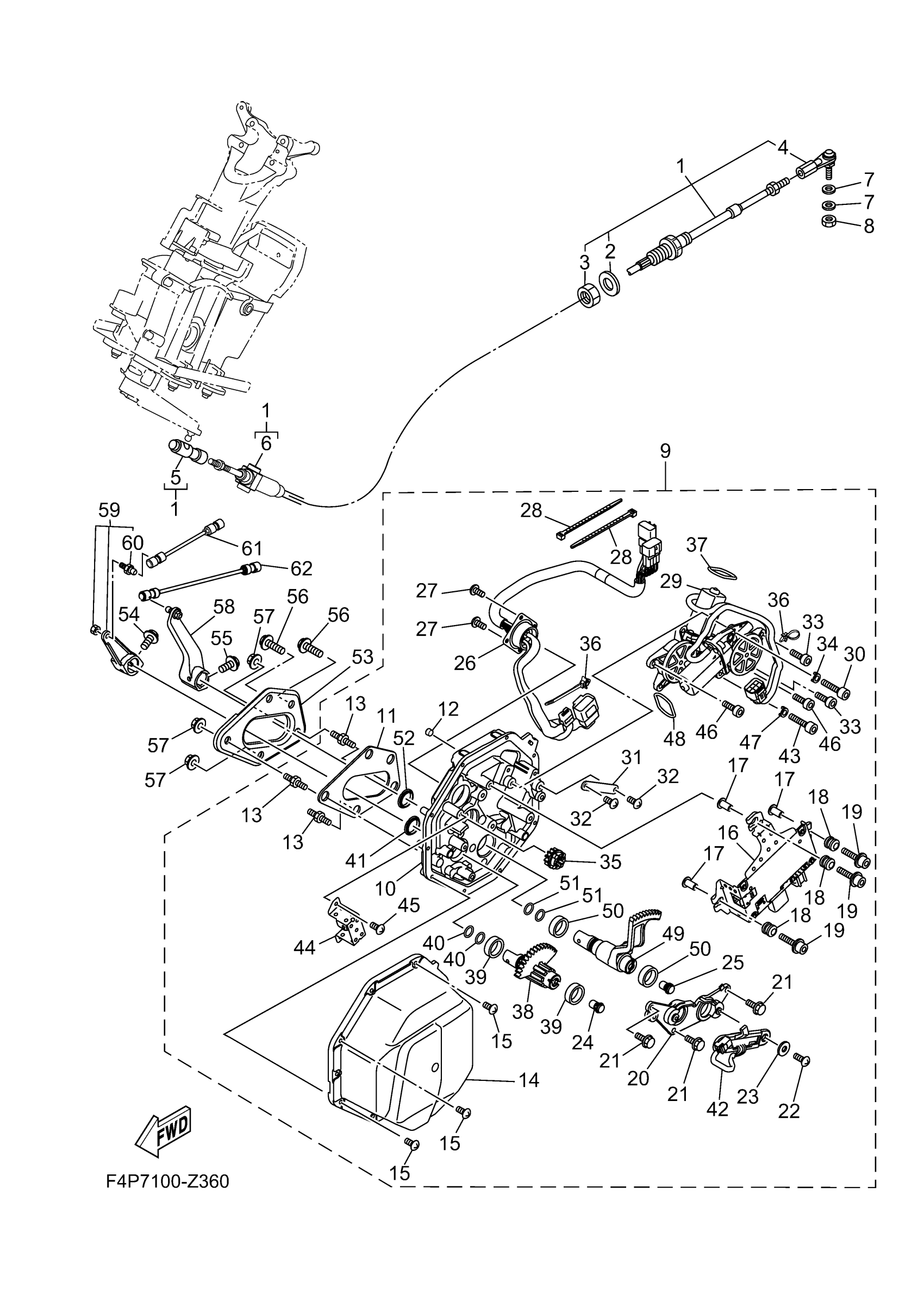

2025 Yamaha GP Ho (GP1900BB) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, STEERING

F1S-61481-12-00

1

$379.49

In stock

2

. PACKING C

F1B-61438-00-00

1

$2.57

In stock

3

NUT

F1B-6151S-01-00

1

$14.49

In stock

4

. STUD, JOINT BALL

F1B-61461-02-00

1

$85.53

In stock

5

. BALL JOINT ASSY

F2N-61460-00-00

1

$48.49

In stock

6

. NUT, LOCK

F1B-61425-00-00

1

$15.99

In stock

7

WASHER, PLATE

90201-06906-00

1

$3.23

In stock

8

NUT

9538R-06700-00

1
Out of stock

9

MOTOR ASSY

F4P-6140B-10-00

1

$666.99

In stock

10

. HOUSING

F4P-6152K-00-00

1

$216.99

In stock

11

. SEAL

F4P-63262-00-00

1

$26.92

In stock

12

. PLUG

F3J-613D0-00-00

1

$11.99

In stock

13

. BOLT, STUD

F3J-67369-00-00

1

$6.46

In stock

14

. COVER

F3Y-6143J-00-00

1

$52.99

In stock

15

. SCREW

F3Y-68198-00-00

1

$3.69

In stock

16

. CONTROL UNIT

F4P-68197-01-00

1

$880.49

In stock

17

. COLLAR

90387-06119-00

1

$4.13

In stock

18

DAMPER, IGNITION C

6A0-82317-01-00

1

$6.31

In stock

19

. BOLT

F3J-613B4-20-00

1

$4.62

In stock

20

. PLATE

F4P-61256-00-00

1

$62.99

In stock

21

. BOLT, HEXAGON

F3Y-613B3-00-00

1

$4.62

In stock

22

. SCREW

F3J-68198-20-00

1

$3.69

In stock

23

. WASHER, PLAIN

F3J-613C3-10-00

1

$3.95

In stock

24

. MAGNET, SENSOR

F3J-60428-00-00

1

$25.49

In stock

25

. MAGNET, SENSOR

F3J-60428-00-00

1

$25.49

In stock

26

. WIRE HARNESS ASSY

F4P-68270-00-00

1

$236.49

In stock

27

. SCREW

F3J-68198-00-00

1

$3.16

In stock

28

. CLAMP, WIRE

F3J-68273-00-00

1

$3.23

In stock

29

. MOTOR

F4P-68352-00-00

1

$318.49

In stock

30

. BOLT

F3J-613B4-00-00

1

$4.62

In stock

31

. PLATE

F3Y-61348-00-00

1

$4.62

In stock

32

. SCREW

F3J-68198-20-00

1

$3.69

In stock

33

. BOLT

F3J-613B4-10-00

1

$2.19

In stock

34

. SPACER

F3J-61492-00-00

1

$7.38

In stock

35

. GEAR 1

F4P-60211-00-00

1

$117.49

In stock

36

. CLAMP

F4P-68273-00-00

1

$4.15

In stock

37

. O-RING

F4P-613A5-10-00

1

$4.62

In stock

38

SHAFT, 1

F3Y-60221-10-00

1

$21.37

In stock

39

. BUSH

F3Y-61344-00-00

1

$3.95

In stock

40

O-RING

F4P-613A5-00-00

1

$3.55

In stock

41

. BUSH

F4P-61344-00-00

1

$4.74

In stock

42

. SENSOR, ANGLE

F4P-85887-00-00

1

$170.49

In stock

43

. BOLT

F3J-613B4-00-00

1

$4.62

In stock

44

. PLATE

F4P-61348-00-00

1

$25.99

In stock

45

. SCREW

F3J-68198-20-00

1

$3.69

In stock

46

. BOLT

F3J-613B4-10-00

1

$2.19

In stock

47

. SPACER

F3J-61492-00-00

1

$7.38

In stock

48

. O-RING

F4P-613A5-10-00

1

$4.62

In stock

49

. SHAFT, 2

F4P-60222-10-00

1

$135.49

In stock

50

. BUSH

F3Y-61344-00-00

1

$3.95

In stock

51

O-RING

F4P-613A5-00-00

1

$3.55

In stock

52

. BUSH

F4P-61344-00-00

1

$4.74

In stock

53

PLATE

F4P-U8285-00-00

1

$14.60

In stock

54

BOLT, WITH WASHER

90119-06894-00

1

$1.54

In stock

55

BOLT, WITH WASHER

90119-068E7-00

1

$6.00

In stock

56

BOLT, WITH WASHER

90119-08852-00

1

$4.31

In stock

57

NUT, LOCK

F3Y-U142L-00-00

1

$2.85

In stock

58

TRIM ARM ASSY

F4P-6150E-10-00

1

$79.32

In stock

59

SHIFT ARM ASSY

F3Y-6150F-00-00

1

$52.26

In stock

60

. BOLT, JOINT

6R7-42316-00-00

1

$34.49

In stock

61

ROD ASSY

F3J-6150A-00-00

1

$56.49

In stock

62

ROD ASSY 2

F3J-6150D-00-00

1

$41.17

In stock
