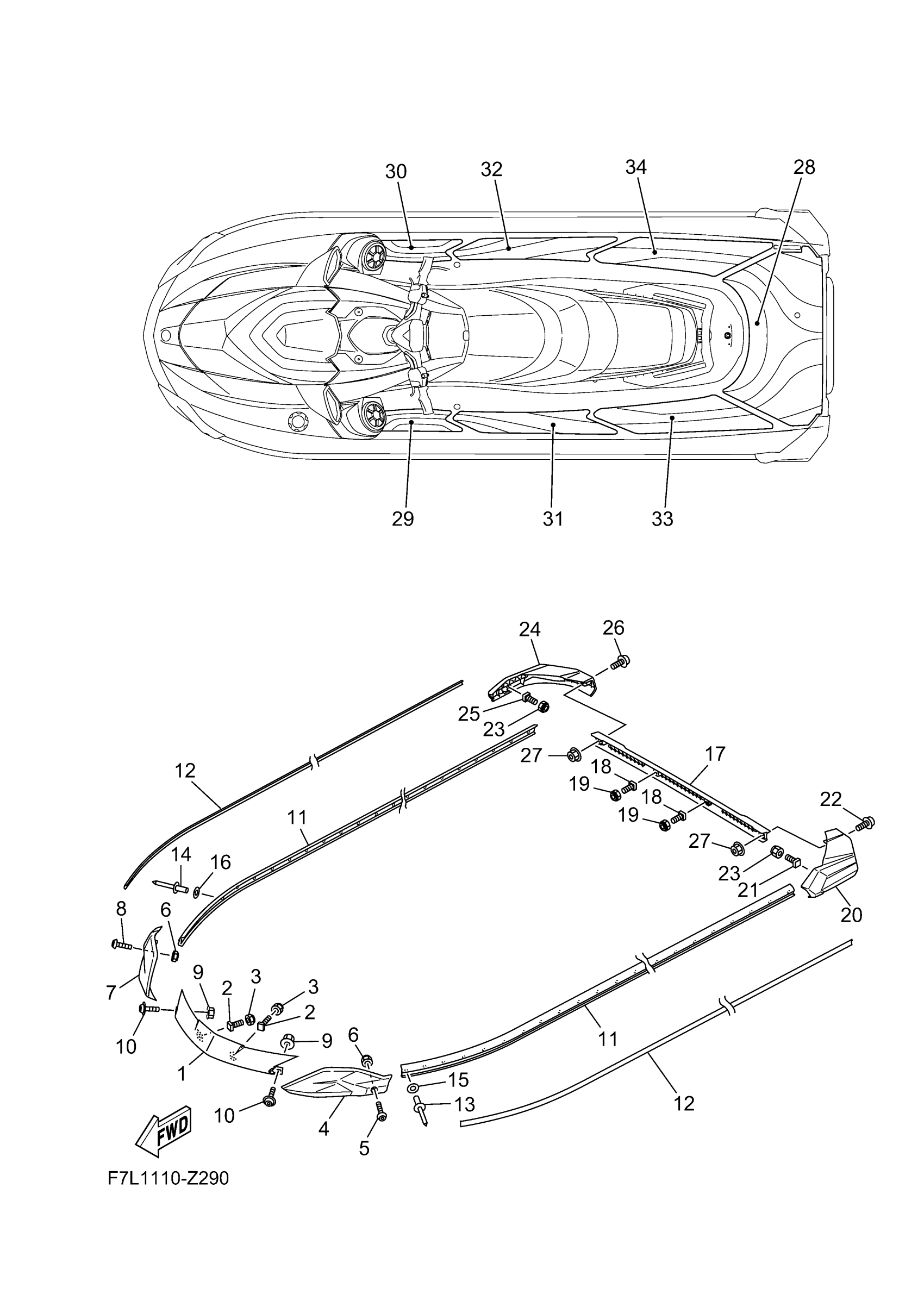

Yamaha GP1900BA (GP HO WAUDIO_ GP HO) F7L2 2024 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F4P-U2511-00-00

$21.95

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

JOINT, GUNWALE LH

F4P-U252E-00-00

$22.25

5

SCREW

F4P-U7823-00-00

$1.37

6

NUT, LOCK

F2N-U142L-00-00

$1.00

7

JOINT, GUNWALE RH

F4P-U252F-00-00

$23.67

8

SCREW

F4P-U7823-00-00

$1.37

9

NUT, LOCK

F2N-U142L-00-00

$1.00

10

SCREW

F3X-U7823-12-00

$1.25

11

GUNWALE, SIDE

F4P-U2512-00-00

$37.78

12

INNER,GUNWALE

F4P-U2519-50-00

$41.49

13

RIVET, BLIND

90267-489U8-00

$0.99

14

RIVET, BLIND

90267-489U8-00

$0.99

15

WASHER

9299R-05200-00

$3.16

16

WASHER

9299R-05200-00

$3.16

17

COVER, GUNWALE 1

F4P-U252C-02-00

Unavailable

18

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

19

NUT, LOCK

F2N-U142L-00-00

$1.00

20

GUNWALE, STERN 1

F4P-U251D-00-00

$18.52

21

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

22

SCREW

F4P-U7823-00-00

$1.37

23

NUT, LOCK

F2N-U142L-00-00

$1.00

24

GUNWALE, STERN 2

F4P-U251E-00-00

$10.75

25

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

26

SCREW

F4P-U7823-00-00

$1.37

27

NUT, LOCK

F2N-U142L-00-00

$1.00

28

MAT, UPPER

F4M-U3581-00-00

Unavailable

28

MAT, UPPER

F4M-U3581-20-00

Unavailable

29

MAT, STEP 1

F4M-U351H-00-00

$45.44

29

MAT, STEP 1

F4M-U351H-20-00

$39.38

30

MAT, STEP 2

F4M-U351J-00-00

$45.44

30

MAT, STEP 2

F4M-U351J-20-00

$39.38

31

MAT, STEP 3

F4P-U351K-01-00

$45.44

31

MAT, STEP 3

F4P-U351K-20-00

$54.53

32

MAT, STEP 4

F4P-U351M-01-00

$45.44

32

MAT, STEP 4

F4P-U351M-20-00

$54.53

33

MAT, STEP 5

F4P-U351N-01-00

$51.50

33

MAT, STEP 5

F4P-U351N-20-00

$59.08

34

MAT, STEP 6

F4P-U351P-01-00

$45.44

34

MAT, STEP 6

F4P-U351P-20-00

$59.08
