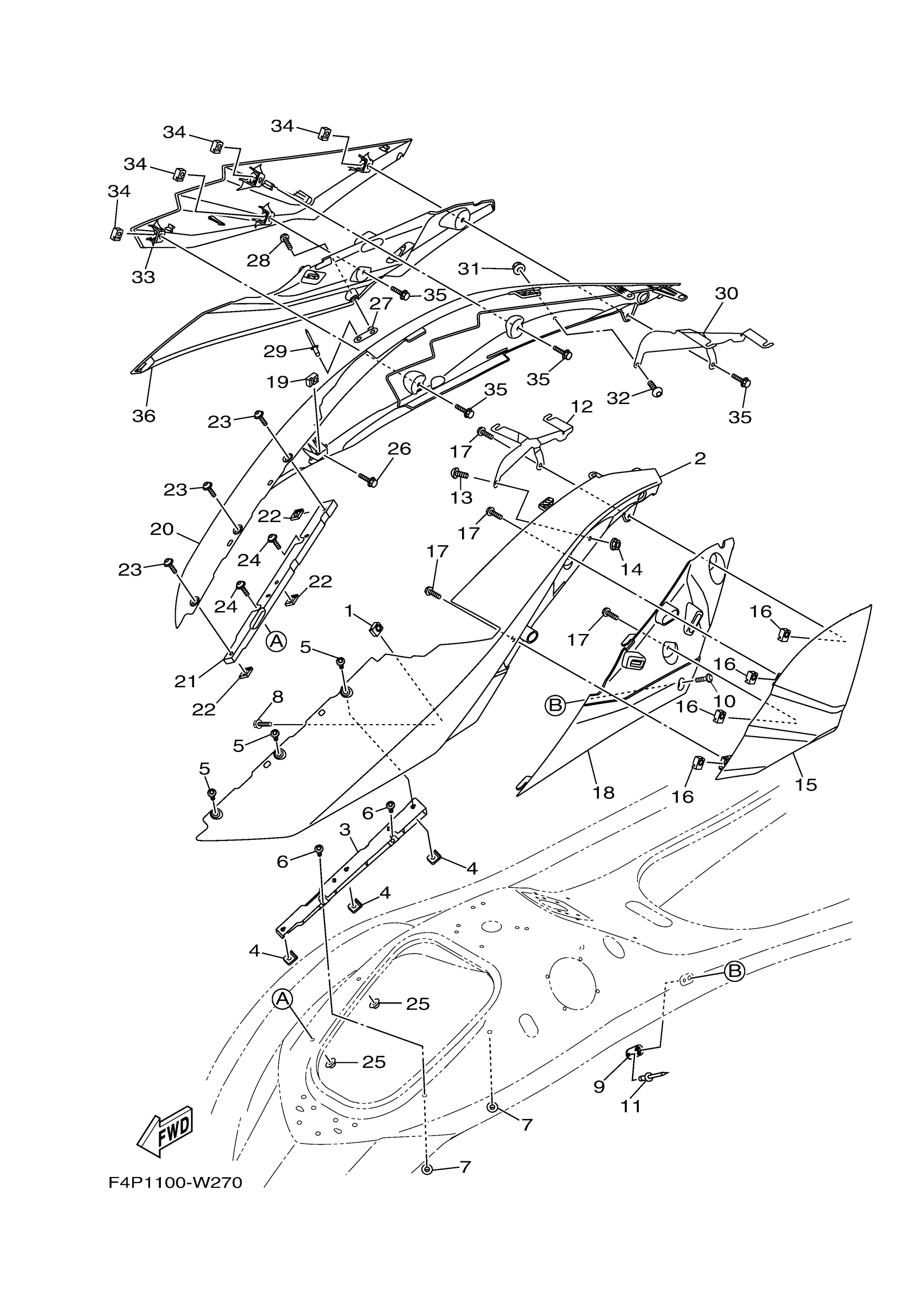

Yamaha GP1900BA (GP HO WAUDIO_ GP HO) F7L2 2024 ENGINE HATCH 3 Diagram

#

Description
Price

1

NUT

F3X-U517E-00-00

$1.23

2

COVER,SIDE 1 (SSA)

F4P-U377B-01-P4

$166.65

3

BRKT., COVER SIDE 1

F4P-U377M-01-00

$13.62

4

NUT

F3X-U517E-00-00

$1.23

5

BOLT, HEXAGON SOCKET BUTTON

90111-06873-00

$5.03

6

BOLT, WITH WASHER

90119-06892-00

$3.79

7

NUT, LOCK

F2N-U142L-00-00

$1.00

8

BOLT, WITH WASHER

90119-06880-00

$3.52

9

PLATE, FIX

F2X-U5175-00-00

$1.80

10

SCREW

F3X-U7823-02-00

$1.37

11

RIVET (EU0)

90267-48938-00

$5.00

12

HOOK,B

F4P-U756B-02-00

$29.53

13

SCREW

F2S-U7823-10-00

$0.83

14

NUT, LOCK

F2N-U142L-00-00

$1.00

15

ORNAMENT, SIDE LH

F4P-U377F-30-00

$28.02

16

NUT

F3X-U517E-00-00

$1.23

17

BOLT, WITH WASHER

90119-06892-00

$3.79

18

INNER, COVER SIDE 1

F4P-U377H-00-00

$39.38

19

NUT

F3X-U517E-00-00

$1.23

20

COVER,SIDE 2 (SSA)

F4P-U377C-01-P4

$166.65

21

BRKT, COVER SIDE 2

F4P-U377N-01-00

$13.62

22

NUT

F3X-U517E-00-00

$1.23

23

BOLT, HEXAGON SOCKET BUTTON

90111-06873-00

$5.03

24

BOLT, WITH WASHER

90119-06892-00

$3.79

25

NUT, LOCK

F2N-U142L-00-00

$1.00

26

BOLT, WITH WASHER

90119-06880-00

$3.52

27

PLATE, FIX

F2X-U5175-00-00

$1.80

28

SCREW

F3X-U7823-02-00

$1.37

29

RIVET (EU0)

90267-48938-00

$5.00

30

HOOK C

F4P-U756C-02-00

$29.53

31

SCREW

F2S-U7823-10-00

$0.83

32

NUT, LOCK

F2N-U142L-00-00

$1.00

33

ORNAMENT, SIDE RH

F4P-U377G-30-00

$28.02

34

NUT

F3X-U517E-00-00

$1.23

35

BOLT, WITH WASHER

90119-06892-00

$3.79

36

INNER, COVER SIDE 2

F4P-U377J-00-00

$39.38
