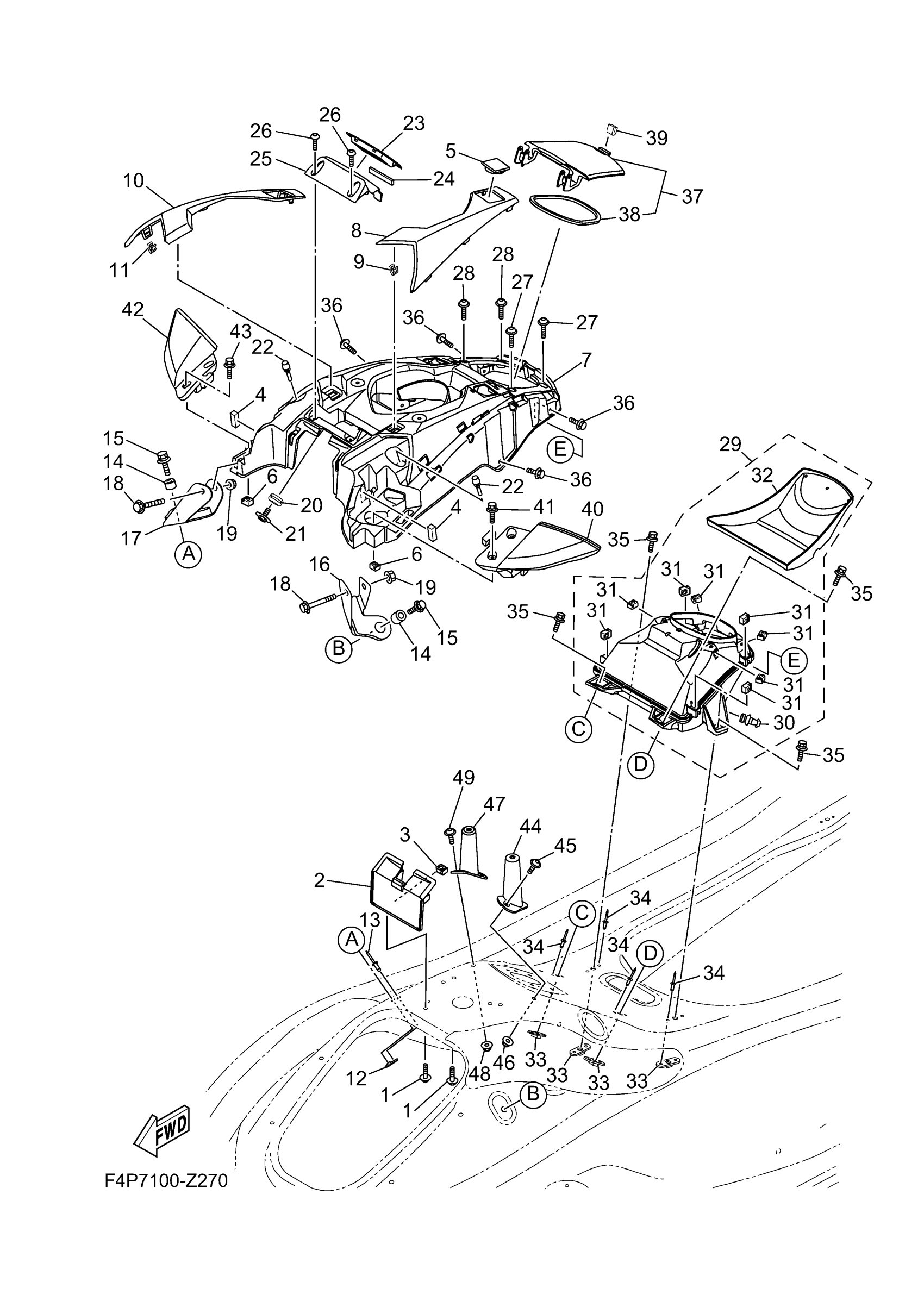

Yamaha GP1900BA (GP HO WAUDIO_ GP HO) F7L2 2024 ENGINE HATCH 2 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-06880-00

$3.52

2

HOOK,LID LOCK

F4P-U517F-00-00

$21.20

3

NUT

F3X-U517E-00-00

$1.23

4

PACKING

F4P-U1743-00-00

$1.37

6

NUT

F3X-U517E-00-00

$1.23

7

COVER, CENTER

F4P-U5554-00-00

$131.80

8

ORNAMENT LH (LBS2)

F4P-U517W-01-P6

$74.23

8

ORNAMENT LH

F4P-U517W-01-P9

$87.86

9

CLIP

F3Y-U153K-00-00

$1.29

10

ORNAMENT RH (LBS2)

F4P-U517X-01-P6

$74.23

10

ORNAMENT RH

F4P-U517X-01-P9

$69.68

11

CLIP

F3Y-U153K-00-00

$1.29

12

PLATE, FIX

F2X-U5175-00-00

$1.80

13

RIVET (EU0)

90267-48938-00

$5.00

14

SPACER

F4P-U5239-01-00

$2.35

15

BOLT, WITH WASHER

90119-06820-00

$3.52

16

BRACKET ASSY.,1

F4P-UF88B-00-00

$25.74

17

BRACKET ASSY.,2

F4P-UF88C-00-00

$25.74

18

BOLT, FIX

F4P-U5176-00-00

$0.91

19

NUT, LOCK

F2N-U142L-00-00

$1.00

20

. GROMMET

90480-19800-00

$11.48

21

BOLT, WITH WASHER

90119-05803-00

$4.01

22

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

23

ORNAMENT, METER

F4P-U826F-01-00

Unavailable

24

DAMPER 2

F0X-U515E-02-00

Unavailable

25

COVER METER

F4P-U8262-00-00

$9.83

26

SCREW

F2S-U13C1-00-00

$2.36

27

SCREW

F3X-U7823-12-00

$1.25

28

SCREW

F3X-U7823-12-00

$1.25

29

GLOVE BOX HATCH ASSY

F4P-U1708-00-00

$95.44

30

. SEAL

F3X-U2723-00-00

$2.16

31

NUT

F3X-U517E-00-00

$1.23

32

. INNER, CASE

F4P-U591L-00-00

$46.95

33

BRACKET

F2C-U826C-00-00

$3.79

34

RIVET 1

F4P-U516R-01-00

$4.87

35

BOLT, WITH WASHER

90119-08828-00

$2.30

36

BOLT

F4P-U1355-00-00

$0.86

37

GLOVE BOX COVER ASSY

F4P-U4705-00-00

$43.06

38

. PACKING CASE

F4P-U519D-00-00

$33.34

39

PACKING 4

F4P-U266C-00-00

Unavailable

40

MIRROR ASSY. 1

F4P-U590D-60-00

Unavailable

40

MIRROR ASSY. 1

F4P-U590D-70-00

Unavailable

41

BOLT, WITH WASHER

90119-06304-00

$3.52

42

MIRROR ASSY. 2

F4P-U590E-60-00

Unavailable

42

MIRROR ASSY. 2

F4P-U590E-70-00

Unavailable

43

BOLT, WITH WASHER

90119-06304-00

$3.52

44

RFM.,DASH BOARD 1

F4P-U974A-00-00

$12.11

45

NUT, LOCK

F2N-U142L-00-00

$1.00

46

SCREW

F3X-U7823-12-00

$1.25

47

RFM.,DASH BOARD 2

F4P-U974B-00-00

$12.11

48

NUT, LOCK

F2N-U142L-00-00

$1.00

49

SCREW

F3X-U7823-12-00

$1.25
