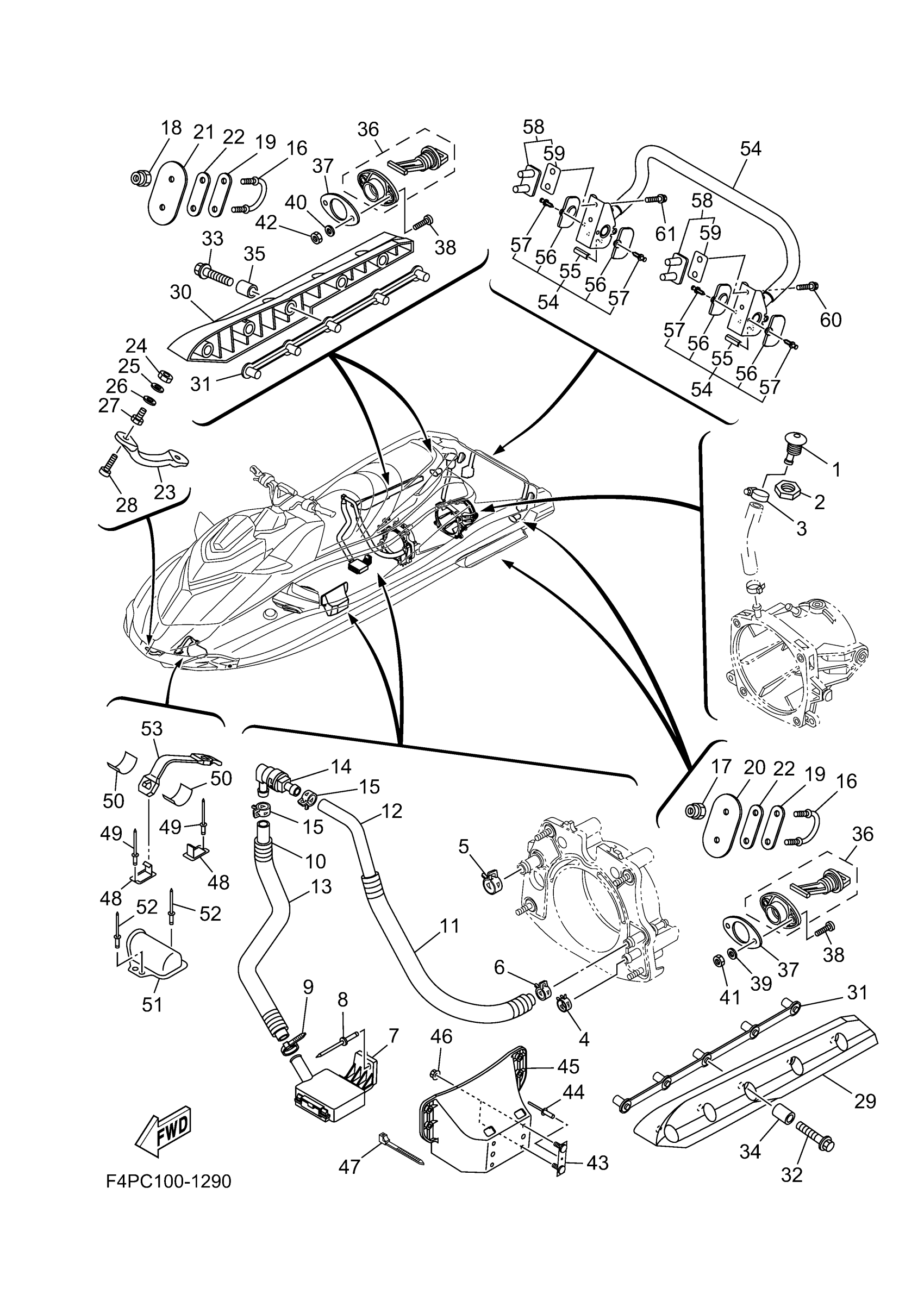

Yamaha GP1900AC (GP HO WAUDIO) F7L5 2026 HULL & DECK Diagram
#
1
SPOUT
F1W-U269B-00-00
Unavailable
2
NUT
EU0-61652-00-00
Unavailable
3
BAND, HOSE 18
90601-118UF-00
Unavailable
4
CLIP
90467-200A3-00
Unavailable
5
CLIP
90467-240A3-00
Unavailable
6
CLIP
90467-190A2-00
Unavailable
7
STRAINER, BILGE
F1B-U761D-02-00
Unavailable
8
RIVET, BLIND
90267-489U8-00
Unavailable
9
CLAMP
90465-10098-00
Unavailable
10
HOSE (L860)
90445-20804-00
Unavailable
11
TUBE,2
6EX-U773E-00-00
Unavailable
12
HOSE (L500)
90445-20800-00
Unavailable
13
TUBE
6EX-U773D-00-00
Unavailable
14
JOINT, HOSE
68N-5112T-00-00
Unavailable
15
CLIP
90467-190A2-00
Unavailable
16
STERN EYE
F2N-U1628-10-00
Unavailable
17
NUT, NYLON (6J8)
95780-08300-00
Unavailable
18
NUT, NYLON (6J8)
95780-08300-00
Unavailable
19
PLATE A
GP7-U4953-10-00
Unavailable
20
PLATE A
F7M-U4953-20-00
Unavailable
21
PLATE A
F7M-U4953-20-00
Unavailable
22
PACKING
F1B-U1653-03-00
Unavailable
23
BOW EYE 1
F1K-61624-00-00
Unavailable
24
NUT.HEX.(COARS)
99780-12600-00
Unavailable
25
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
26
WASHER
F0X-61637-00-00
Unavailable
27
NUT
F0X-61652-01-00
Unavailable
28
BOLT, HEXAGON SOCKET HEAD
90110-06280-00
Unavailable
29
STABILIZER LH
F1S-U883N-01-00
Unavailable
30
STABILIZER RH
F1S-U883P-01-00
Unavailable
31
BRACKET,STABILIZER
F1X-U883T-02-00
Unavailable
32
BOLT,WASHER BASED
90105-088F9-00
Unavailable
33
BOLT,WASHER BASED
90105-088F9-00
Unavailable
34
SPACER
F2N-U8169-10-00
Unavailable
35
SPACER
F2N-U8169-10-00
Unavailable
36
DRAIN PLUG ASSY
F1S-U2280-02-00
Unavailable
37
PACKING, DRAIN
F1S-U2285-01-00
Unavailable
38
SCREW, PAN HEAD
9788R-05025-00
Unavailable
39
WASHER
9299R-05200-00
Unavailable
40
WASHER
9299R-05200-00
Unavailable
41
NUT, FLANGE
9572R-05300-00
Unavailable
42
NUT, FLANGE
9572R-05300-00
Unavailable
43
BRACKET
F1K-U826C-03-00
Unavailable
44
RIVET (EU0)
90267-48938-00
Unavailable
45
BRACKET 2
F4P-U8572-00-00
Unavailable
46
NUT, LOCK
F3Y-U142L-00-00
Unavailable
47
CLAMP
90464-32801-00
Unavailable
48
HOOK A
F1K-U5772-04-00
Unavailable
49
RIVET (EU0)
90267-48938-00
Unavailable
50
MAT 2
F1K-U759C-00-00
Unavailable
51
BOX, FIRE EXTINGUISHER
F2X-U5983-00-00
Unavailable
52
RIVET, BLIND
90267-48802-00
Unavailable
53
BAND 1
F2P-U828K-00-00
Unavailable
54
LADDER, STEP ASSY
F2X-U278A-00-00
Unavailable
55
. SLEEVE 1
F1W-U771H-00-00
Unavailable
56
. INNER, COVER SIDE 1
F2C-U377H-00-00
Unavailable
57
. PIN
F2C-U1314-00-00
Unavailable
58
BRACKET, LADDER LH
F2S-U278F-01-00
Unavailable
59
PACKING, BRKT. 1
F2S-U278H-01-00
Unavailable
60
BOLT, WITH WASHER
90119-08844-00
Unavailable
61
BOLT, WITH WASHER
90119-08844-00
Unavailable
