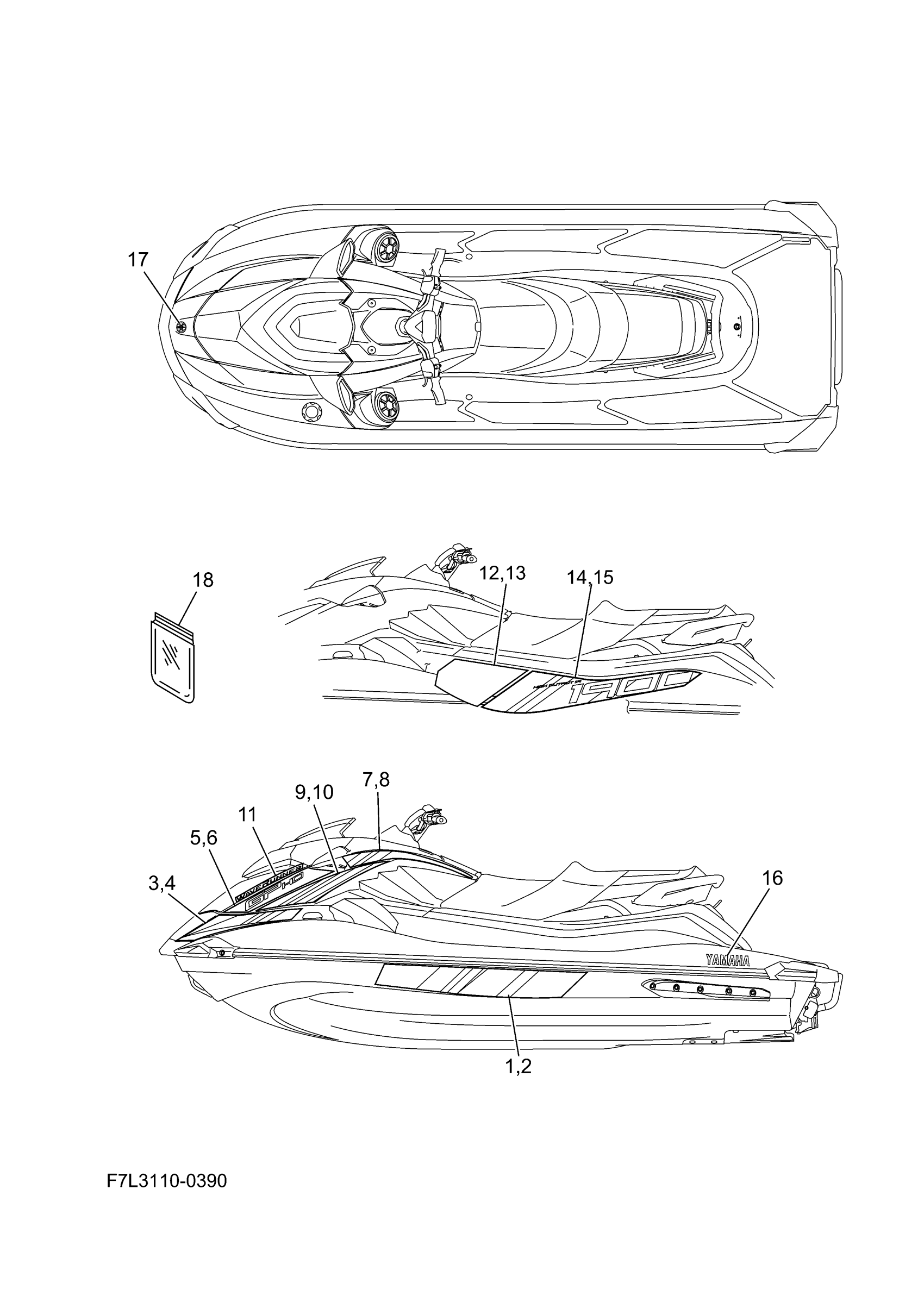

Yamaha GP1900AB (GP HO WAUDIO) F7L3 2025 GRAPHICS Diagram
#
1
GRAPHIC 1 (LH)
F7L-U417B-20-00
Unavailable
1
GRAPHIC 1 (LH)
F7L-U417B-30-00
Unavailable
2
GRAPHIC 2 (RH)
F7L-U417C-20-00
Unavailable
2
GRAPHIC 2 (RH)
F7L-U417C-30-00
Unavailable
3
GRAPHIC 3 (LH)
F7L-U417D-20-00
Unavailable
3
GRAPHIC 3 (LH)
F7L-U417D-30-00
Unavailable
4
GRAPHIC 4 (RH)
F7L-U417E-20-00
Unavailable
4
GRAPHIC 4 (RH)
F7L-U417E-30-00
Unavailable
5
GRAPHIC 5 (LH)
F7L-U417F-20-00
Unavailable
5
GRAPHIC 5 (LH)
F7L-U417F-30-00
Unavailable
6
GRAPHIC 6 (RH)
F7L-U417G-20-00
Unavailable
6
GRAPHIC 6 (RH)
F7L-U417G-30-00
Unavailable
7
GRAPHIC 7 (LH)
F7L-U417H-20-00
Unavailable
7
GRAPHIC 7 (LH)
F7L-U417H-30-00
Unavailable
8
GRAPHIC 8 (RH)
F7L-U417J-20-00
Unavailable
8
GRAPHIC 8 (RH)
F7L-U417J-30-00
Unavailable
9
GRAPHIC 9 (LH)
F7L-U417K-20-00
Unavailable
9
GRAPHIC 9 (LH)
F7L-U417K-30-00
Unavailable
10
GRAPHIC B (RH)
F7L-U417L-20-00
Unavailable
10
GRAPHIC B (RH)
F7L-U417L-30-00
Unavailable
11
GRAPHIC C
F7L-U417M-20-00
Unavailable
11
GRAPHIC C
F7L-U417M-30-00
Unavailable
12
GRAPHIC E (LH)
F7L-U417P-20-00
Unavailable
12
GRAPHIC E (LH)
F7L-U417P-30-00
Unavailable
13
GRAPHIC F (RH)
F7L-U417R-20-00
Unavailable
13
GRAPHIC F (RH)
F7L-U417R-30-00
Unavailable
14
GRAPHIC G (LH)
F7L-U417S-20-00
Unavailable
14
GRAPHIC G (LH)
F7L-U417S-30-00
Unavailable
15
GRAPHIC H (RH)
F7L-U417T-20-00
Unavailable
15
GRAPHIC H (RH)
F7L-U417T-30-00
Unavailable
16
MARK, YAMAHA 3
F5G-U4116-10-00
Unavailable
16
MARK, YAMAHA 3
F5G-U4116-20-00
Unavailable
17
EMBLEM, TUNING FORK
F3Y-U411H-02-00
Unavailable
18
BAG, VINYL
F3Y-U5901-00-00
Unavailable
