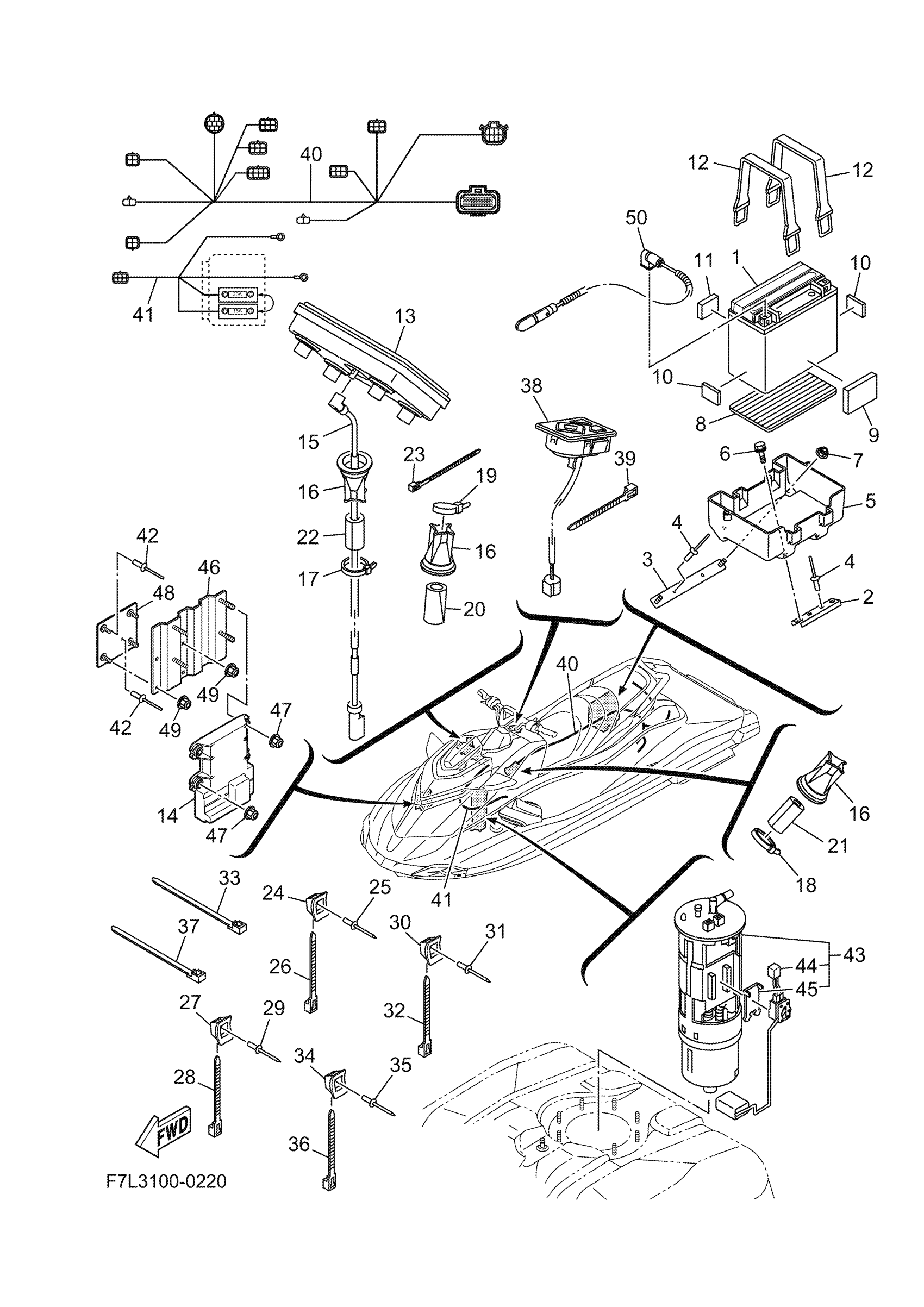

Yamaha GP1900AB (GP HO WAUDIO) F7L3 2025 ELECTRICAL 3 Diagram

#

Description
Price

1

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$163.95

2

PLATE, BASE 2

F2S-U8592-00-00

$5.83

3

PLATE, BASE 3

F2S-U8593-00-00

$5.45

4

RIVET (EU0)

90267-48938-00

$5.00

5

CASE, BATTERY

F2S-U8211-00-00

$9.62

6

BOLT, WITH WASHER

90119-06820-00

$3.52

7

NUT, LOCK

F2N-U142L-00-00

$1.00

8

PAD, BATTERY

F1S-U8221-00-00

$2.75

9

MAT 2

F1W-U759C-01-00

$2.50

10

PAD, BATTERY

EU0-U8221-31-00

$1.65

11

PACKING

F2C-U1743-00-00

$1.87

12

BAND, BATTERY 1

F4P-U821D-00-00

$12.20

13

DISPLAY METER ASSY.

F7M-U820J-00-00

$396.95

14

METER CONTROL UNIT ASSY.

F7M-U820H-00-00

Unavailable

15

CABLE,METER

F7M-U823K-00-00

$63.62

16

GROMMET

F3J-U822E-01-00

$5.59

17

CLAMP

90464-32801-00

$1.23

18

CLAMP

90464-32801-00

$1.23

19

CLAMP

90464-32801-00

$1.23

20

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

21

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

22

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

23

CLAMP(JN6)

90464-31827-00

Unavailable

24

BASE, CLAMP

F1W-U828M-00-00

$1.23

25

RIVET, BLIND

90267-48806-00

$2.00

26

CLAMP

90464-32801-00

$1.23

27

BASE, CLAMP

F1W-U828M-00-00

$1.23

28

CLAMP

90464-32801-00

$1.23

29

RIVET, BLIND

90267-48806-00

$2.00

30

BASE, CLAMP

F1W-U828M-00-00

$1.23

31

RIVET, BLIND

90267-48806-00

$2.00

32

CLAMP

90464-32801-00

$1.23

33

CLAMP

F2C-U4256-00-00

$3.26

34

BASE, CLAMP

F1W-U828M-00-00

$1.23

35

RIVET, BLIND

90267-48806-00

$2.00

36

CLAMP

F2C-U4256-00-00

$3.26

37

BAND

90601-200U2-00

$3.16

38

SWITCH ASSY.

F5G-U8090-01-00

Unavailable

39

CLAMP

90464-32801-00

$1.23

40

WIRE HARNESS,1

F7M-60891-20-00

$353.02

41

WIRE, HARNESS

F7M-68275-00-00

$160.59

42

RIVET, BLIND

90267-48806-00

$2.00

43

FUEL PUMP COMP.

6S5-13907-05-00

$1,050.38

44

FUEL SENDER ASSY

6S5-682E0-10-00

Unavailable

45

DAMPER, STOPPER

60E-82556-10-00

$18.49

46

BRACKET 1

F7M-UFG21-00-00

Unavailable

47

NUT, LOCK

F2N-U142L-00-00

$1.00

48

BRACKET 2

F7M-UFG22-00-00

Unavailable

49

NUT, LOCK

F2N-U142L-00-00

$1.00

50

WIRE, MINUS LEAD

6JP-82116-00-00

$65.14
