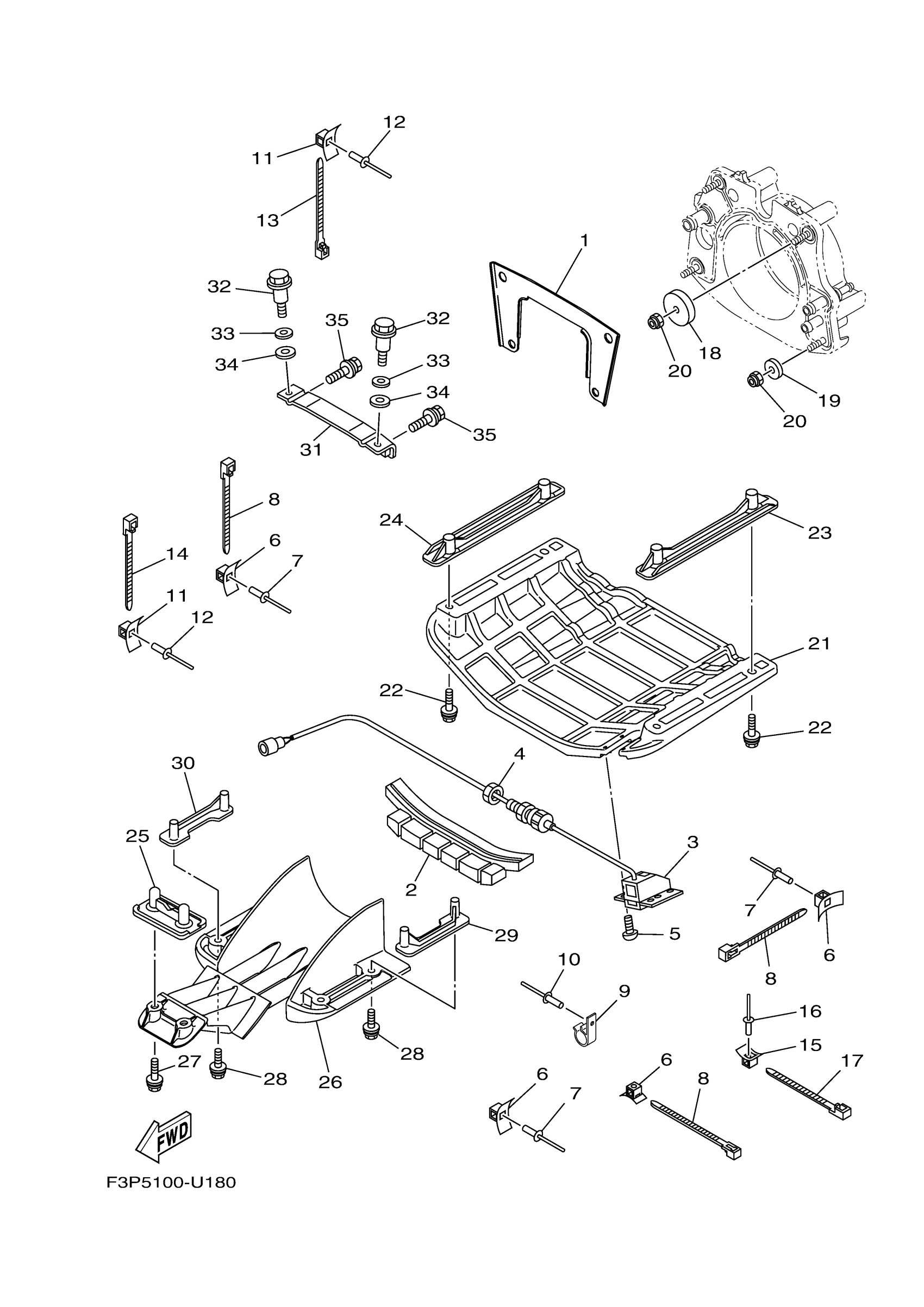

Yamaha GP1800V (GP1800R SVHO) F3P6 2020 JET UNIT 4 Diagram

#

Description
Price

1

BRACKET

6EY-R1959-00-00

$15.07

2

SPACER

F2X-U72C0-00-00

$15.79

3

SENSOR SPEED

F1S-U8K31-03-00

$147.92

4

NUT

F2C-U151S-00-00

$1.57

5

SCREW, ROUND HEAD

90150-05807-00

$0.86

6

BASE, CLAMP

F1W-U828M-00-00

$1.29

7

RIVET, BLIND

90267-489U6-00

Unavailable

8

CLAMP

90464-32801-00

$1.29

9

CLAMP

F3J-U8368-01-00

$5.75

10

RIVET, BLIND

90267-409U5-00

Unavailable

11

BASE, CLAMP

F1W-U828M-00-00

$1.29

12

RIVET, BLIND

90267-489U6-00

Unavailable

13

CLAMP

90464-32801-00

$1.29

14

BAND

90601-200U2-00

$3.29

15

BASE, CLAMP

F1W-U828M-00-00

$1.29

16

RIVET, BLIND

90267-489U6-00

Unavailable

17

BAND

90601-200U2-00

$3.29

18

WASHER

F1S-U725E-01-00

$8.61

19

WASHER, PLATE

90201-10801-00

$3.65

20

NUT, NYLON

9572R-10300-00

$3.52

21

PLATE 2

F3P-U273B-00-00

$123.87

22

BOLT, WITH WASHER

90119-08829-00

$4.09

23

BRACKET 2

F2X-U8572-00-00

$13.63

24

BRACKET 2

F2X-U8572-00-00

$13.63

25

BRACKET, 3

F2S-U8577-00-00

$15.79

26

SCREEN, INTAKE

F3P-R1333-00-00

$70.13

27

BOLT, WITH WASHER

90119-08829-00

$4.09

28

BOLT, WITH WASHER

90119-08844-00

$1.37

29

BRACKET 1

F3P-U8571-00-00

$7.89

30

BRACKET 1

F3P-U8571-00-00

$7.89

31

BRACKET

F2C-U7557-01-00

$29.84

32

BOLT

90109-08043-00

$4.03

33

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

34

GASKET

90430-12002-00

$1.72

35

BOLT, WITH WASHER

90119-08800-00

$4.31
