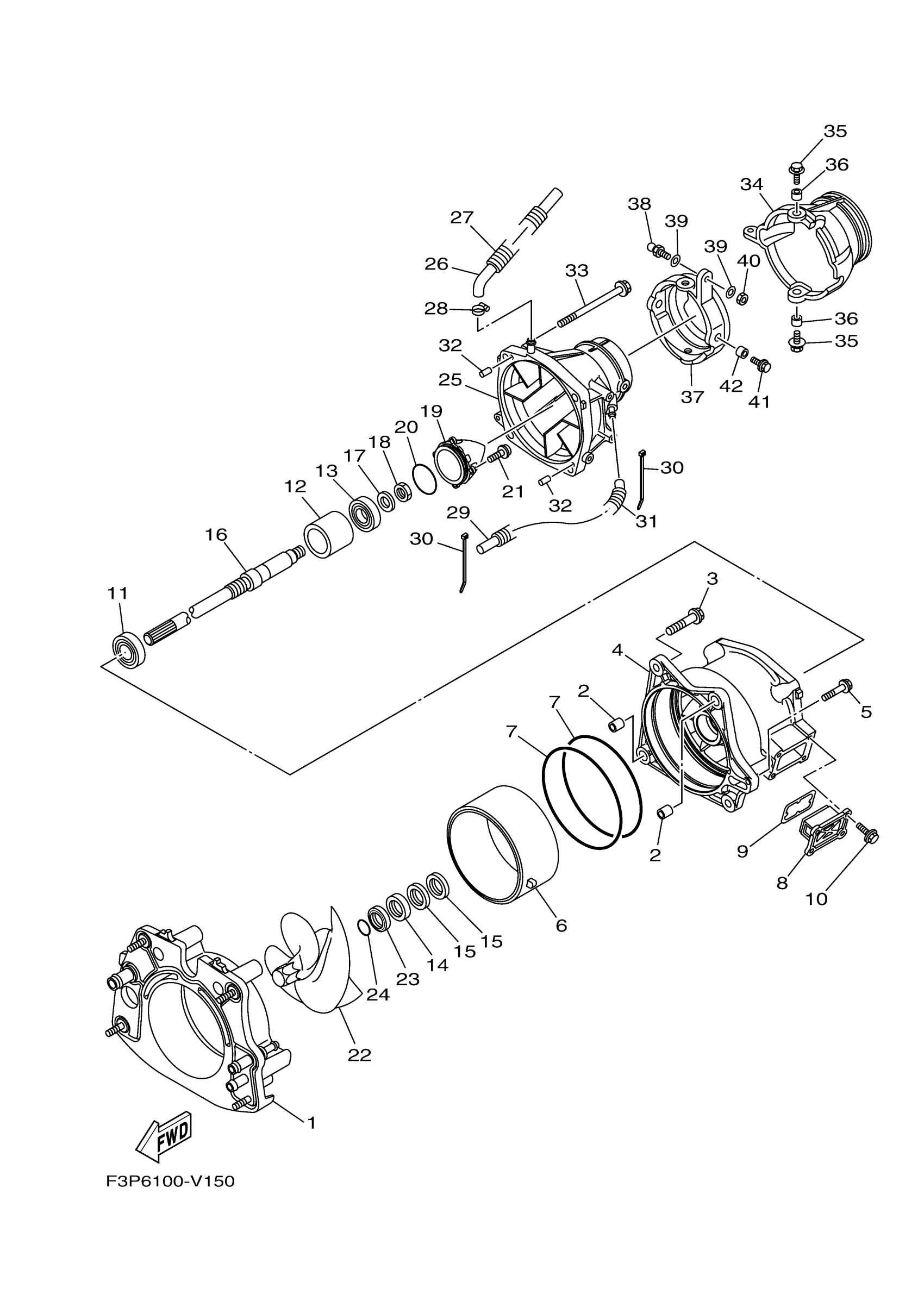

Yamaha GP1800V (GP1800R SVHO) F3P6 2020 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6ET-G5831-20-00

Unavailable

2

PIN, DOWEL(4JT)

99590-14016-00

$3.69

3

BOLT, WITH WASHER

90119-10811-00

$1.43

4

HOUSING, IMPELLER

6HL-R1312-00-00

$226.76

5

BOLT, WITH WASHER

90119-06894-00

$1.43

6

SLEEVE, IMPELLER

6GN-R1337-00-00

Unavailable

7

. O-RING

93211-70800-00

$3.65

8

FILTER

6GN-G6882-00-00

$12.20

9

. O-RING

66V-42414-00-00

$5.31

10

BOLT,WITH WASHER

90119-06890-00

$1.15

11

BEARING

93306-206Y7-00

$15.95

12

SPACER 1

6CS-G5538-00-00

$34.45

13

BEARING

93306-355Y0-00

$19.75

14

. OIL SEAL

93102-31009-00

$68.82

15

. OIL SEAL

93101-31001-00

$28.21

16

SHAFT, DRIVE

6ET-G5511-00-00

$292.40

17

WASHER

92990-20600-00

$4.17

18

NUT

95312-20700-00

Unavailable

19

CAP

6ET-R1326-00-00

$17.22

20

O-RING

93210-54010-00

$2.41

21

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.30

22

IMPELLER

6EV-R1321-00-00

$242.63

23

SPACER

6BH-R1348-00-00

$22.63

24

O-RING (30X)

93210-30611-00

Unavailable

25

NOZZLE

6ET-R1318-00-00

$80.87

26

HOSE 1

6CN-U72M2-00-00

$5.75

27

HOSE (L175)

90446-24M46-00

$1.32

28

BAND, HOSE 18

90601-118UF-00

$2.22

29

HOSE

6ET-U215E-00-00

$5.07

30

CLAMP

90465-10098-00

$2.24

31

HOSE, WITH SPRING (L205)

90447-15001-00

$3.64

32

PIN, DOWEL (614)

93606-12019-00

Unavailable

33

BOLT, WITH WASHER

90119-10811-00

$1.43

34

NOZZLE, DEFLECTOR

6S5-R1313-01-00

$25.11

35

BOLT, WITH WASHER

90119-08852-00

$4.01

36

COLLAR(6R7)

90387-08M06-00

Unavailable

37

RING,TRIM

6AN-R1190-00-00

$22.97

38

STUD, JOINT BALL

6ET-U1461-10-00

$2.07

39

WASHER,PLATE

90201-068M4-00

Unavailable

40

NUT(650)

95380-06700-00

Unavailable

41

BOLT, WITH WASHER

90119-08852-00

$4.01

42

COLLAR(6R7)

90387-08M06-00

Unavailable
