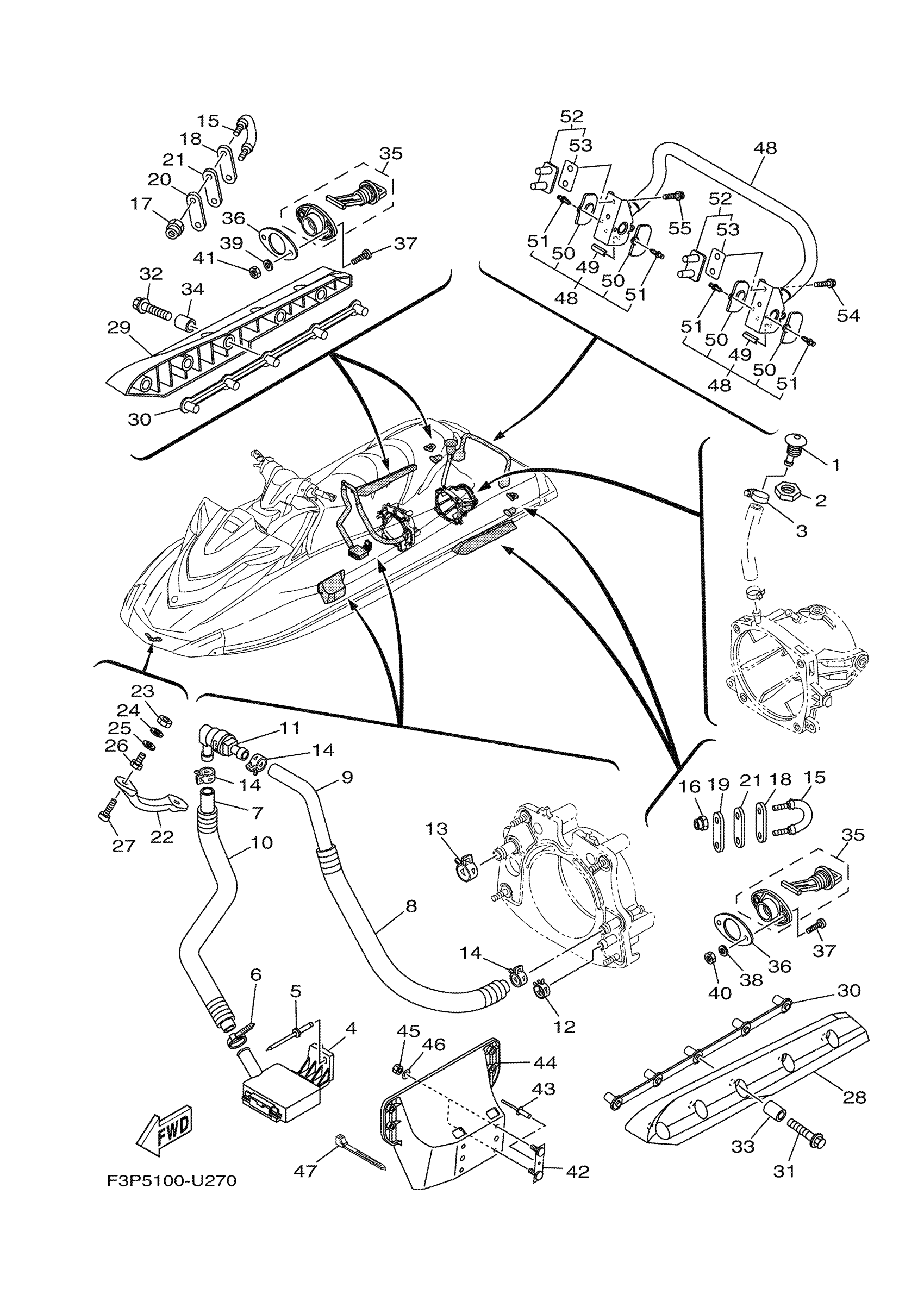

Yamaha GP1800V (GP1800R SVHO) F3P6 2020 HULL & DECK Diagram

#

Description
Price

1

SPOUT

F1W-U269B-00-00

$1.80

2

NUT

EU0-61652-00-00

$11.48

3

BAND, HOSE 18

90601-118UF-00

$2.07

4

STRAINER, BILGE

F1B-U761D-02-00

$5.15

5

RIVET, BLIND

90267-489U8-00

$0.99

6

CLAMP

90465-10098-00

$1.68

7

HOSE (L860)

90445-20804-00

$12.86

8

TUBE,2

6EX-U773E-00-00

$6.06

9

HOSE (L500)

90445-20800-00

$12.86

10

TUBE

6EX-U773D-00-00

$3.73

11

JOINT, HOSE

68N-5112T-00-00

$48.96

12

CLIP

90467-200A3-00

$5.92

13

CLIP

90467-240A3-00

$2.69

14

CLIP

90467-190A2-00

$3.18

15

STERN EYE

F2N-U1628-02-00

$4.96

16

NUT, NYLON (6J8)

95780-08300-00

$10.55

17

NUT, NYLON (6J8)

95780-08300-00

$10.55

18

PLATE A

GP7-U4953-10-00

$3.52

19

PLATE A

GP7-U4953-10-00

$3.52

20

PLATE A

GP7-U4953-10-00

$3.52

21

PACKING

F1B-U1653-03-00

Unavailable

22

BOW EYE 1

F1K-61624-00-00

$42.60

23

NUT.HEX.(COARS)

99780-12600-00

$2.80

24

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

25

WASHER

F0X-61637-00-00

$1.29

26

NUT

F0X-61652-01-00

Unavailable

27

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

28

STABILIZER LH

F1S-U883N-01-00

$33.32

29

STABILIZER RH

F1S-U883P-01-00

$33.32

30

BRACKET,STABILIZER

F1X-U883T-02-00

$43.92

31

BOLT,WASHER BASED

90105-088F9-00

$2.91

32

BOLT,WASHER BASED

90105-088F9-00

$2.91

33

SPACER

F2N-U8169-10-00

$1.15

34

SPACER

F2N-U8169-10-00

$1.15

35

DRAIN PLUG ASSY

F1S-U2280-02-00

$12.20

36

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

37

SCREW, PAN HEAD

9788R-05025-00

$2.52

38

WASHER

9299R-05200-00

$3.16

39

WASHER

9299R-05200-00

$3.16

40

NUT, FLANGE

9572R-05300-00

$1.43

41

NUT, FLANGE

9572R-05300-00

$1.43

42

BRACKET

F1K-U826C-03-00

$12.86

43

RIVET (EU0)

90267-48938-00

$5.00

44

BRACKET 2

F1W-U8572-01-00

$48.47

45

NUT, NYLON (6J8)

95780-08300-00

$10.55

46

WASHER

9299R-08200-00

Unavailable

47

CLAMP

90464-32801-00

$1.23

48

LADDER, STEP ASSY

F2X-U278A-00-00

$127.50

49

. SLEEVE 1

F1W-U771H-00-00

$22.97

50

. INNER, COVER SIDE 1

F2C-U377H-00-00

$3.29

51

. PIN

F2C-U1314-00-00

$2.44

52

BRACKET, LADDER LH

F2S-U278F-01-00

Unavailable

53

PACKING, BRKT. 1

F2S-U278H-01-00

Unavailable

54

BOLT, WITH WASHER

90119-08844-00

$1.29

55

BOLT, WITH WASHER

90119-08844-00

$1.29
