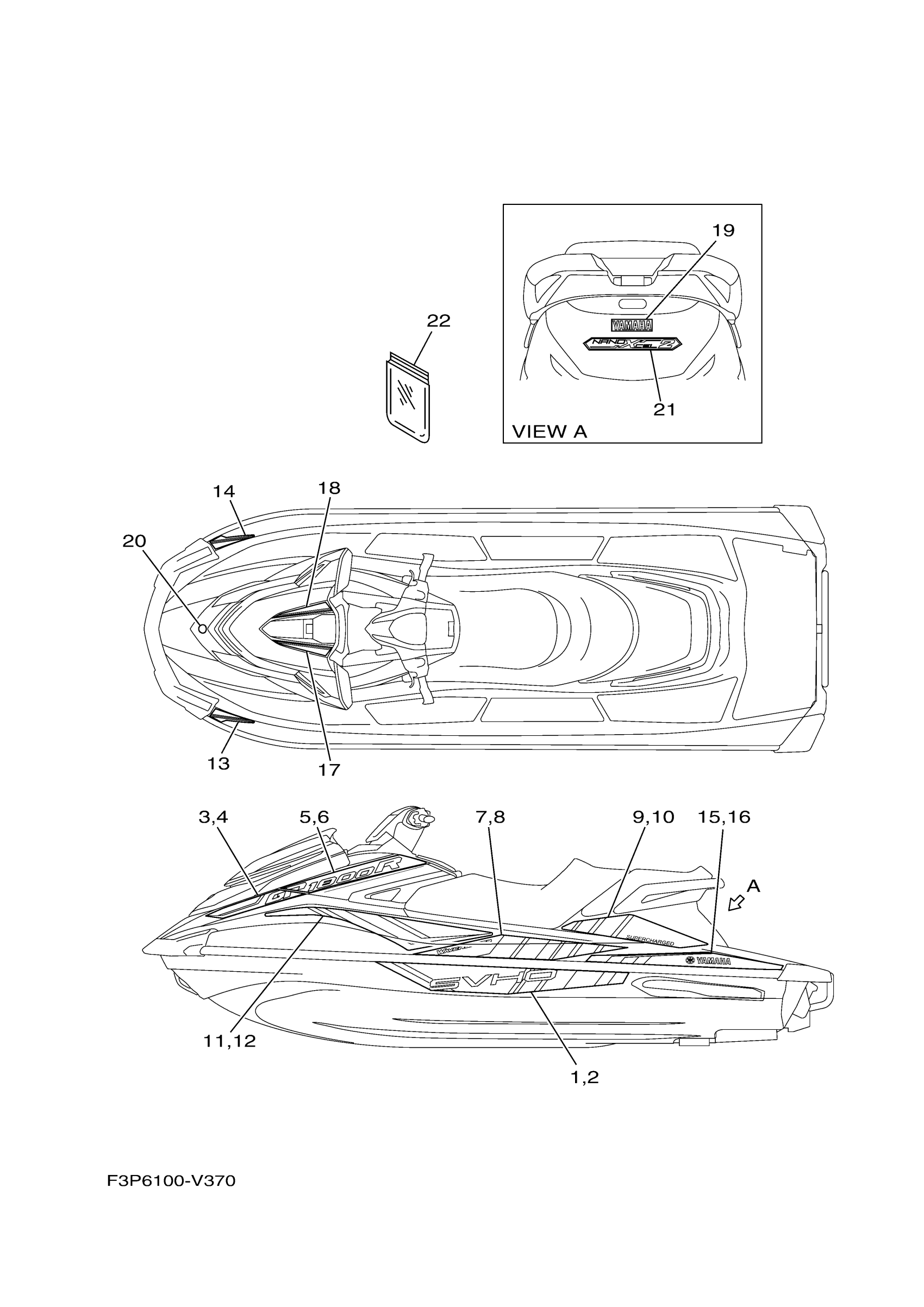

Yamaha GP1800V (GP1800R SVHO) F3P6 2020 GRAPHICS Diagram
#
1
GRAPHIC 1 (LH)
F3P-U417B-60-00
Unavailable
1
GRAPHIC 1 (LH)
F3P-U417B-70-00
Unavailable
2
GRAPHIC 2 (RH)
F3P-U417C-60-00
Unavailable
2
GRAPHIC 2 (RH)
F3P-U417C-70-00
Unavailable
3
GRAPHIC 4 (LH)
F3P-U417E-60-00
Unavailable
3
GRAPHIC 4 (LH)
F3P-U417E-70-00
Unavailable
4
GRAPHIC 5 (RH)
F3P-U417F-60-00
Unavailable
4
GRAPHIC 5 (RH)
F3P-U417F-70-00
Unavailable
5
GRAPHIC 6 (LH)
F3P-U417G-60-00
Unavailable
5
GRAPHIC 6 (LH)
F3P-U417G-70-00
Unavailable
6
GRAPHIC 7 (RH)
F3P-U417H-60-00
Unavailable
6
GRAPHIC 7 (RH)
F3P-U417H-70-00
Unavailable
7
GRAPHIC 8 (LH)
F3P-U417J-60-00
Unavailable
7
GRAPHIC 8 (LH)
F3P-U417J-70-00
Unavailable
8
GRAPHIC 9 (RH)
F3P-U417K-60-00
Unavailable
8
GRAPHIC 9 (RH)
F3P-U417K-70-00
Unavailable
9
GRAPHIC B (LH)
F3P-U417L-60-00
Unavailable
9
GRAPHIC B (LH)
F3P-U417L-70-00
Unavailable
10
GRAPHIC C (RH)
F3P-U417M-60-00
Unavailable
10
GRAPHIC C (RH)
F3P-U417M-70-00
Unavailable
11
GRAPHIC D (LH)
F3P-U417N-60-00
Unavailable
11
GRAPHIC D (LH)
F3P-U417N-70-00
Unavailable
12
GRAPHIC E (RH)
F3P-U417P-60-00
Unavailable
12
GRAPHIC E (RH)
F3P-U417P-70-00
Unavailable
13
GRAPHIC F (LH)
F3P-U417R-60-00
Unavailable
13
GRAPHIC F (LH)
F3P-U417R-70-00
Unavailable
14
GRAPHIC G (RH)
F3P-U417S-60-00
Unavailable
14
GRAPHIC G (RH)
F3P-U417S-70-00
Unavailable
15
GRAPHIC H (LH)
F3P-U417T-60-00
Unavailable
15
GRAPHIC H (LH)
F3P-U417T-70-00
Unavailable
16
GRAPHIC J (RH)
F3P-U417U-60-00
Unavailable
16
GRAPHIC J (RH)
F3P-U417U-70-00
Unavailable
17
GRAPHIC M (LH)
F3P-U417X-60-00
Unavailable
17
GRAPHIC M (LH)
F3P-U417X-70-00
Unavailable
18
GRAPHIC N (RH)
F3P-U417Y-60-00
Unavailable
18
GRAPHIC N (RH)
F3P-U417Y-70-00
Unavailable
19
MARK, YAMAHA A
F3K-U4114-50-00
Unavailable
19
MARK, YAMAHA A
F4L-U4114-10-00
Unavailable
20
EMBLEM, TUNING FORK
F3Y-U411H-02-00
Unavailable
21
EMBLEM A
F3J-U4121-00-00
Unavailable
22
BAG, VINYL
F3Y-U5901-00-00
Unavailable
