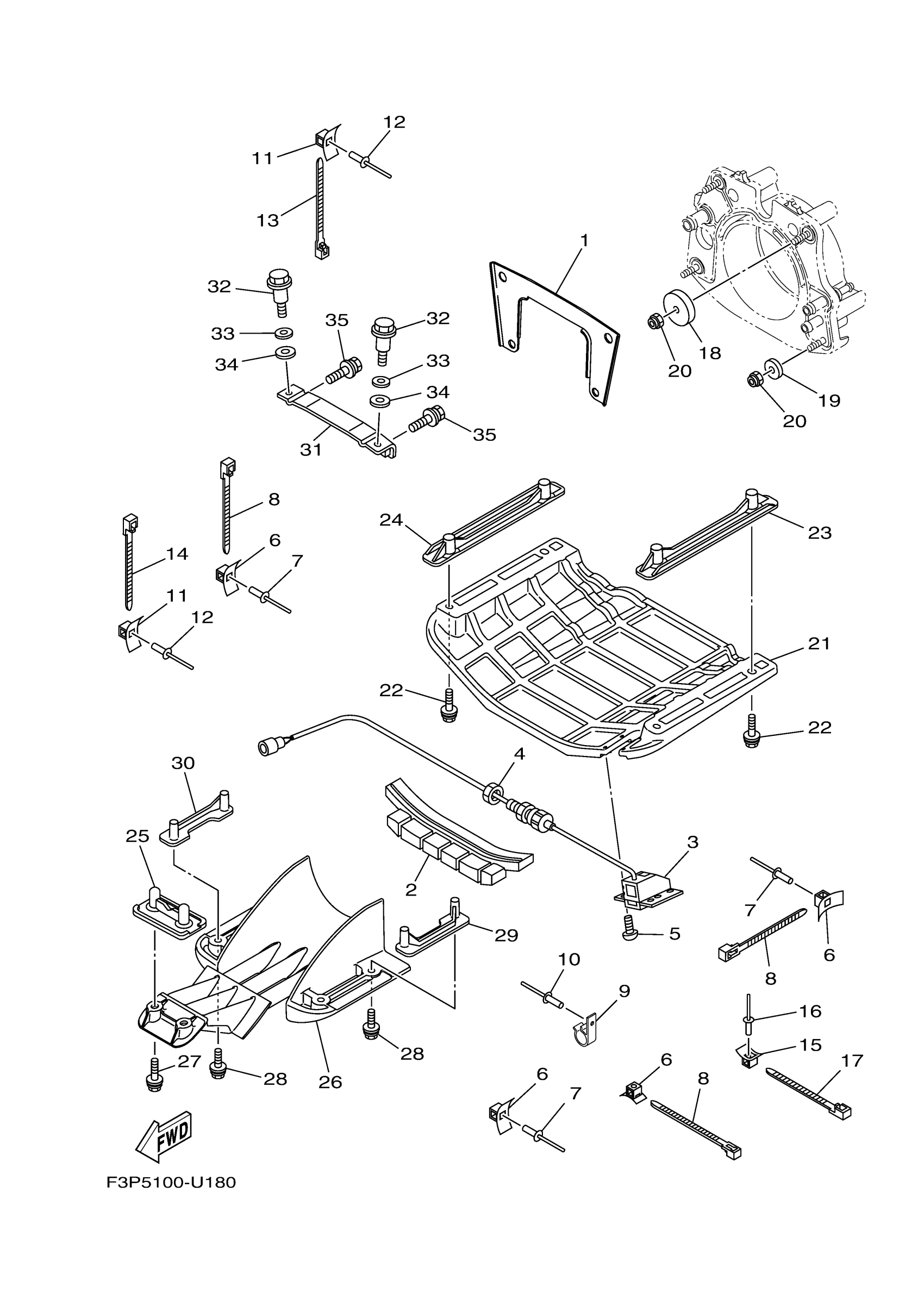

Yamaha GP1800U (GP1800R) F3P5 2019 JET UNIT 4 Diagram

#

Description
Price

1

BRACKET

6EY-R1959-00-00

Unavailable

2

SPACER

F2X-U72C0-00-00

Unavailable

3

SENSOR SPEED

F1S-U8K31-03-00

Unavailable

4

NUT

F2C-U151S-00-00

Unavailable

5

SCREW, ROUND HEAD

90150-05807-00

Unavailable

6

BASE, CLAMP

F1W-U828M-00-00

Unavailable

7

RIVET, BLIND

90267-489U6-00

Unavailable

8

CLAMP

90464-32801-00

Unavailable

9

CLAMP

F3J-U8368-01-00

Unavailable

10

RIVET, BLIND

90267-409U5-00

Unavailable

11

BASE, CLAMP

F1W-U828M-00-00

Unavailable

12

RIVET, BLIND

90267-489U6-00

Unavailable

13

CLAMP

90464-32801-00

Unavailable

14

BAND

90601-200U2-00

Unavailable

15

BASE, CLAMP

F1W-U828M-00-00

Unavailable

16

RIVET, BLIND

90267-489U6-00

Unavailable

17

BAND

90601-200U2-00

Unavailable

18

WASHER

F1S-U725E-01-00

Unavailable

19

WASHER, PLATE

90201-10801-00

Unavailable

20

NUT, NYLON

9572R-10300-00

Unavailable

21

PLATE 2

F3P-U273B-00-00

Unavailable

22

BOLT, WITH WASHER

90119-08829-00

Unavailable

23

BRACKET 2

F2X-U8572-00-00

Unavailable

24

BRACKET 2

F2X-U8572-00-00

Unavailable

25

BRACKET, 3

F2S-U8577-00-00

Unavailable

26

SCREEN, INTAKE

F3P-R1333-00-00

Unavailable

27

BOLT, WITH WASHER

90119-08829-00

Unavailable

28

BOLT, WITH WASHER

90119-08844-00

Unavailable

29

BRACKET 1

F2X-U8571-00-00

Unavailable

30

BRACKET 1

F2X-U8571-00-00

Unavailable

31

BRACKET

F2C-U7557-01-00

Unavailable

32

BOLT

90109-08043-00

Unavailable

33

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

34

GASKET

90430-12002-00

Unavailable

35

BOLT, WITH WASHER

90119-08800-00

Unavailable
