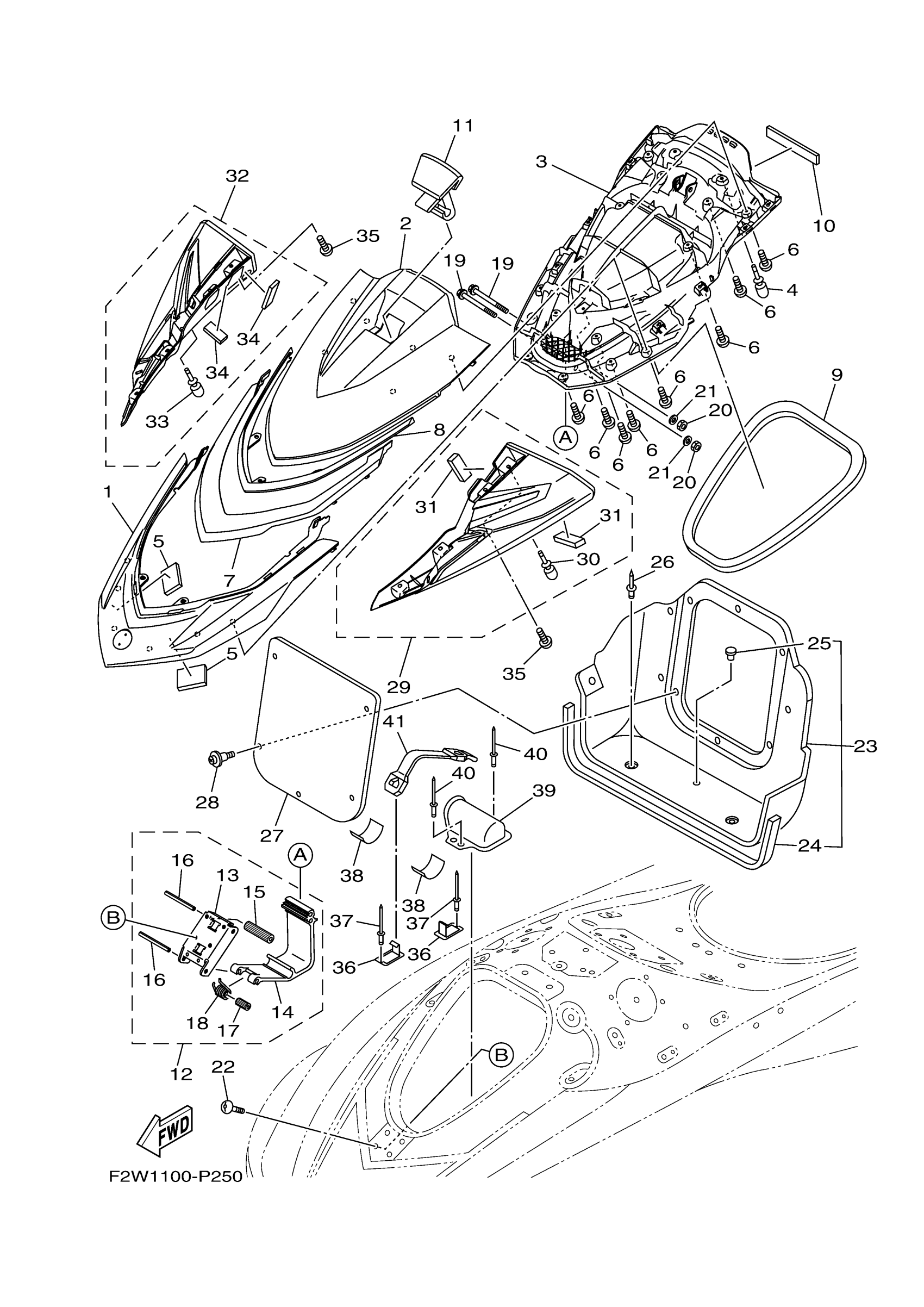

Yamaha GP1800U (GP1800R) F3P5 2019 ENGINE HATCH 2 Diagram

#

Description
Price

1

LID, ENGINE ROOM (PURW)

F2W-U517B-02-P3

$142.41

1

LID, ENGINE ROOM (BMG)

F2W-U517B-02-P8

$160.59

2

VISOR (PURW)

F2W-U515N-00-P3

$130.29

2

VISOR (BMG)

F2W-U515N-00-P8

$162.11

3

INNER, ENGINE HATCH

F2W-U519G-00-00

$107.89

4

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

5

PACKING

F2W-U1743-00-00

$1.51

6

SCREW

F2S-U13C1-00-00

$2.36

7

ORNAMENT, CENTER

F3P-U517V-00-00

$31.80

7

ORNAMENT, CENTER

F3P-U517V-80-00

$24.98

8

ORNAMENT, CENTER

F3P-U517V-10-00

$74.23

8

ORNAMENT, CENTER

F3P-U517V-90-00

$18.17

9

PACKING 1

F2N-U2663-01-00

$44.50

10

DAMPER 1

F2C-U515D-00-00

$1.87

11

LOCK, LID

F2X-U517C-01-00

$7.18

12

HINGE ASSY.

F2X-U515A-01-00

$318.87

13

. PLATE, HINGE LID

F1K-U518E-04-00

$42.41

14

. HINGE, LID

F1K-U517D-05-00

$315.14

15

. ROLLER, DETENT

F2X-U135C-00-00

$10.59

16

PIN, HINGE

F1K-U517R-01-00

$3.23

17

. SPACER 1

F1K-U471E-03-00

$13.62

18

. SPRING, TORSION

F1K-U283B-02-00

$5.67

19

BOLT, FLANGE

90105-06826-00

$3.02

20

NUT, NYLON

9572R-06300-00

$2.80

21

WASHER

9299R-06200-00

$0.43

22

SCREW

F4G-U7823-00-00

Unavailable

23

LOCKER,BOW

F2X-U475B-00-00

$157.56

24

PACKING 4

F2C-U266C-00-00

$7.35

25

. PLUG, BLIND

90605-502U1-00

$2.16

26

RIVET

90269-08801-00

$0.83

27

PLATE, LOKER BOW

F2S-U475F-00-00

$10.75

28

RIVET

90269-08801-00

$0.83

29

MIRROR ASSY. 1

F3P-U590D-11-00

$122.71

29

MIRROR ASSY. 1

F3P-U590D-A0-00

$109.08

30

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

31

. PACKING 3

F1K-U266B-00-00

$1.15

32

MIRROR ASSY. 2

F3P-U590E-11-00

$122.71

32

MIRROR ASSY. 2

F3P-U590E-A0-00

$130.29

33

. CUSHION, RUBBER

F1W-U3768-01-00

$1.43

34

. PACKING 3

F1K-U266B-00-00

$1.15

35

SCREW

F2X-U13C1-00-00

$1.63

36

HOOK A

F1K-U5772-04-00

$6.29

37

RIVET (EU0)

90267-48938-00

$5.00

38

MAT 2

F1K-U759C-00-00

$1.72

39

BOX, FIRE EXTINGUISHER

F2X-U5983-00-00

$4.39

40

RIVET, BLIND

90267-48802-00

$1.98

41

BAND 1

F2P-U828K-00-00

$5.87
