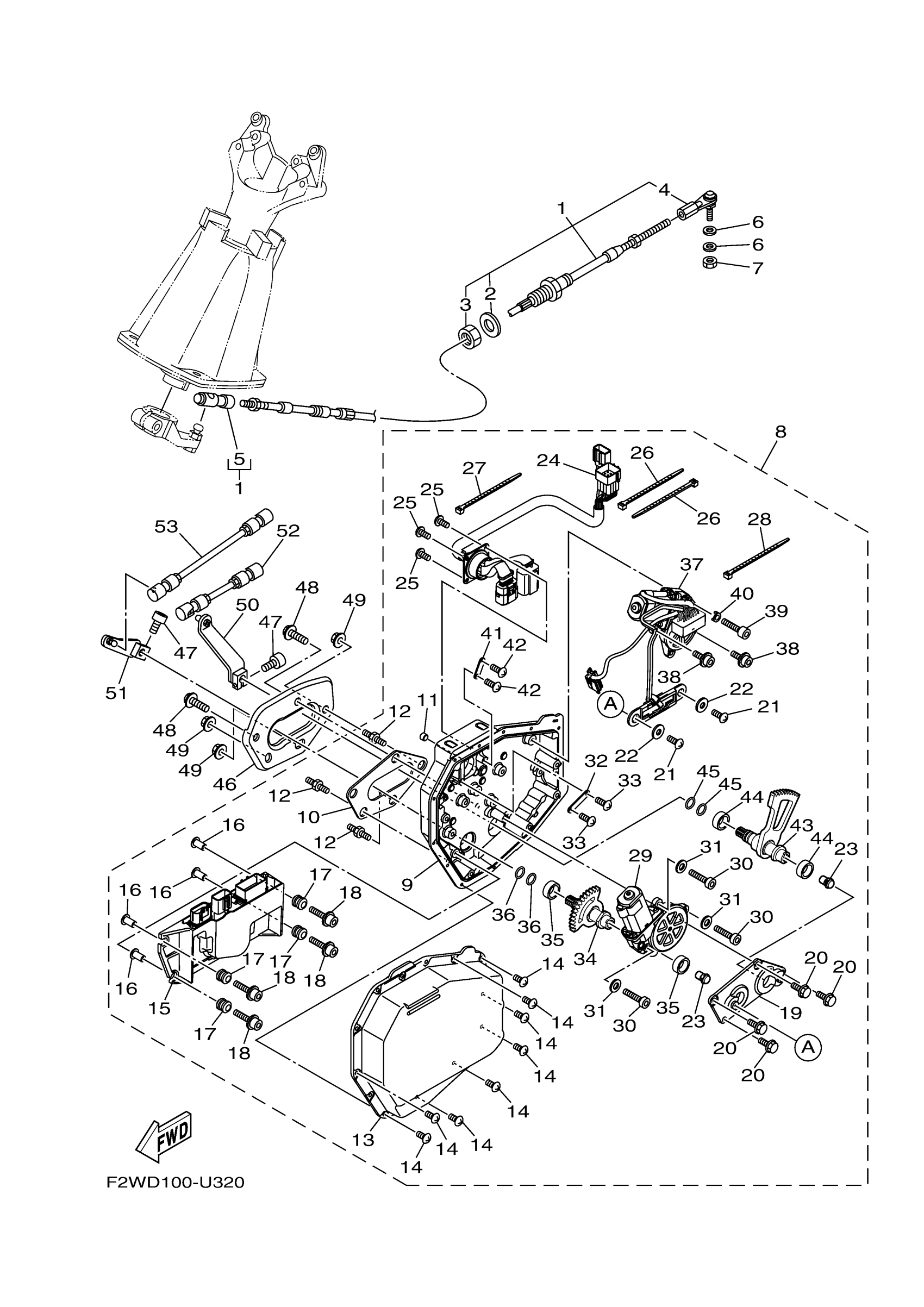

Yamaha GP1800U (GP1800R) F3P5 2019 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

F3P-61481-02-00

Unavailable

2

. PACKING C

F1B-61438-00-00

$2.72

3

NUT

F1B-6151S-01-00

$14.31

4

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

5

. BALL JOINT ASSY

F2N-61460-00-00

$48.47

6

WASHER, PLATE

90201-06906-00

$2.80

7

NUT

9538R-06700-00

$1.01

8

MOTOR ASSY.

F2W-6140B-04-00

Unavailable

9

. HOUSING

F3J-6152K-00-00

$177.26

10

. SEAL

F3J-63262-00-00

$18.49

11

. PLUG

F3J-613D0-00-00

$11.99

12

. BOLT, STUD

F3J-67369-00-00

$6.36

13

. COVER

F3J-6143J-00-00

$50.99

14

. SCREW

F3J-68198-00-00

$2.95

15

. CONTROL UNIT

F2W-68197-00-00

$565.14

16

. COLLAR

90387-06119-00

$4.37

17

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

18

. BOLT

F3J-613B4-20-00

$4.55

19

. PLATE

F3J-61256-00-00

$29.99

20

. BOLT, HEXAGON

F3J-613B3-00-00

$3.64

21

. SCREW

F3J-68198-20-00

$3.64

22

. WASHER, PLAIN

F3J-613C3-10-00

$3.70

23

. MAGNET, SENSOR

F3J-60428-00-00

$25.49

24

. WIRE HARNESS ASSY

F2W-68270-00-00

$345.44

25

. SCREW

F3J-68198-00-00

$2.95

26

. CLAMP, WIRE

F3J-68273-00-00

$3.18

27

. CLAMP, WIRE

F3J-68273-00-00

$3.18

28

. CLAMP, WIRE

F3J-68273-00-00

$3.18

29

. MOTOR

F3J-68352-01-00

$275.74

30

. BOLT

F3J-613B4-00-00

$4.55

31

. WASHER, PLAIN

F3J-613C3-00-00

$3.64

32

. PLATE

F3J-61348-00-00

$4.55

33

. SCREW

F3J-68198-20-00

$3.64

34

. SHAFT, 1

F3J-60221-00-00

$175.74

35

. BUSH

F3J-61344-00-00

$3.33

36

. O-RING

F3J-613A5-00-00

$2.95

37

. MOTOR

F3J-68352-11-00

$369.68

38

. BOLT

F3J-613B4-10-00

$2.19

39

. BOLT

F3J-613B4-00-00

$4.55

40

. SPACER

F3J-61492-00-00

$7.27

41

. PLATE

F3J-61348-10-00

$4.55

42

. SCREW

F3J-68198-20-00

$3.64

43

. SHAFT, 2

F3J-60222-00-00

$168.17

44

. BUSH

F3J-61344-00-00

$3.33

45

. O-RING

F3J-613A5-00-00

$2.95

46

PLATE

F3Y-U8285-00-00

$15.14

47

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

48

BOLT, WITH WASHER

90119-08852-00

$3.79

49

NUT, LOCK

F3Y-U142L-00-00

$2.52

50

TRIM ARM ASSY

F3J-6150E-00-00

$78.77

51

SHIFT ARM ASSY

F3J-6150F-00-00

$68.17

52

ROD ASSY

F3J-6150A-00-00

$56.05

53

ROD ASSY 2

F3J-6150D-00-00

$38.52
