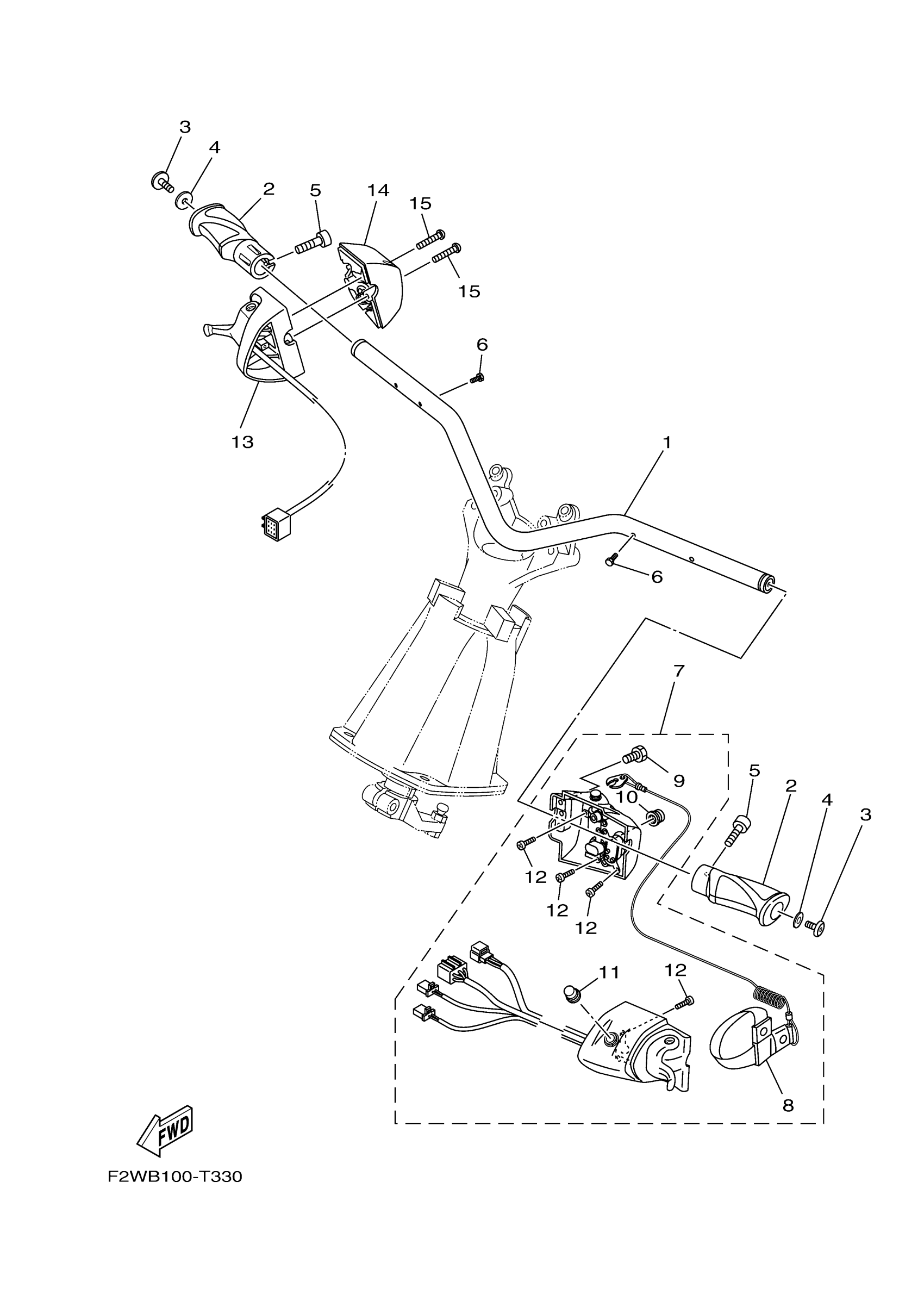

Yamaha GP1800T (GP1800) F3P3 2018 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F2X-U1552-10-00

$58.88

2

GRIP,HANDLE

F2S-U155D-03-00

$21.08

3

BOLT, HEXAGON SOCKET HEAD

90110-06383-00

$3.70

4

WASHER, PLATE

90201-068G0-00

$0.93

5

BOLT

F2S-U1516-00-00

$2.80

6

BOLT

91380-04030-00

$0.91

7

SWITCH BOX ASSY

F3J-68310-03-00

Unavailable

8

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

9

BOLT, THROTTLE

6CS-6725F-00-00

$4.44

10

. STOP BUTTON COMP

FK7-68312-02-00

$12.82

11

. START BUTTON COMP

FK7-68313-02-00

$11.31

12

. SCREW, TAPPING

97780-30610-00

$1.26

13

THROTTLE LEVER COMP

6CS-14305-13-00

$690.89

14

CASE

6EX-82154-00-00

$27.26

15

BOLT, THROTTLE

6CS-6725F-00-00

$4.44
