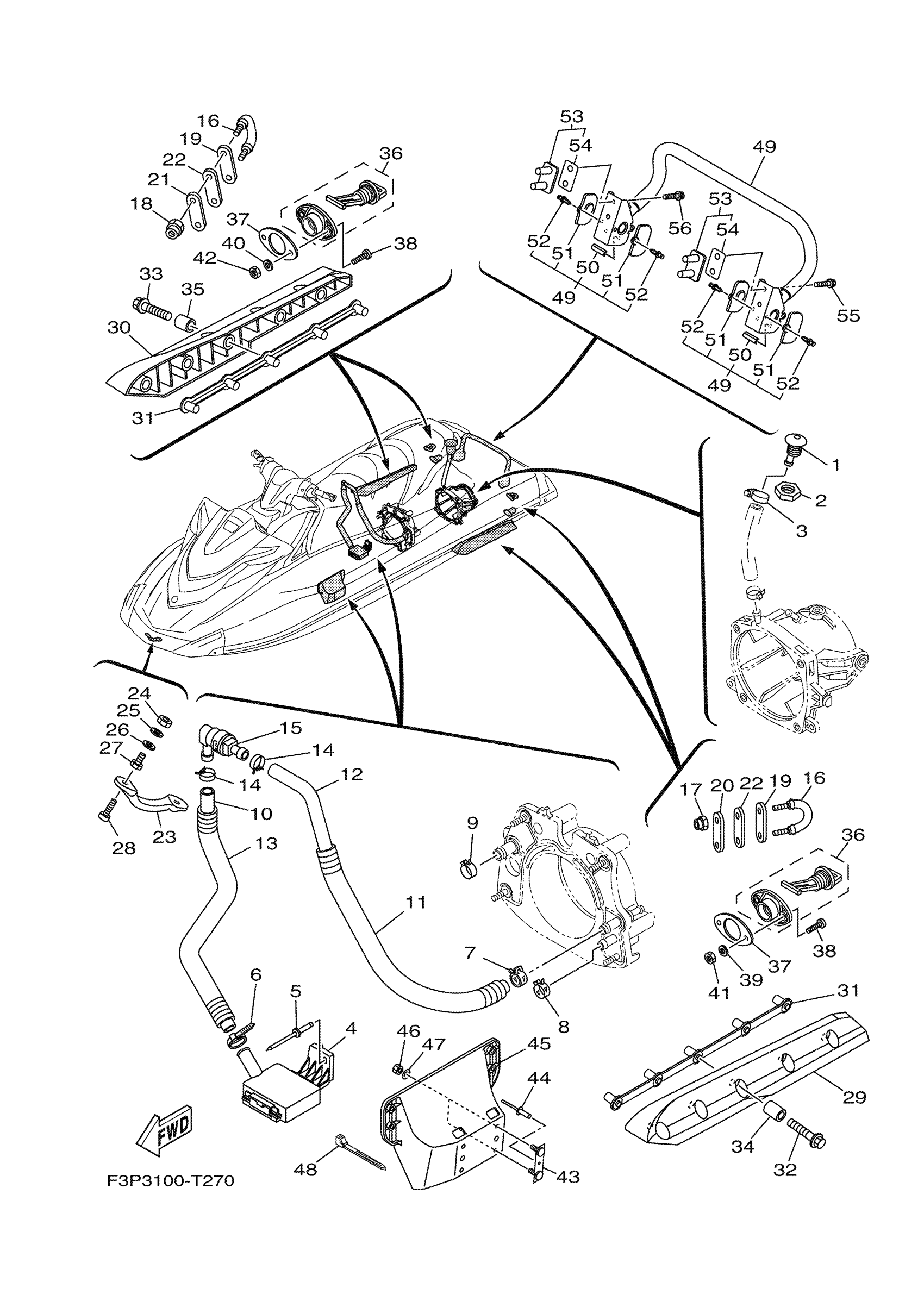

Yamaha GP1800T (GP1800) F3P3 2018 HULL & DECK Diagram

#

Description
Price

1

SPOUT

F1W-U269B-00-00

Unavailable

2

NUT

EU0-61652-00-00

Unavailable

3

BAND, HOSE 18

90601-118UF-00

Unavailable

4

STRAINER, BILGE

F1B-U761D-02-00

Unavailable

5

RIVET, BLIND

90267-489U8-00

Unavailable

6

CLAMP

90465-10098-00

Unavailable

7

CLIP

90467-21800-00

Unavailable

8

CLIP

90467-200A0-00

Unavailable

9

CLIP

90467-26800-00

Unavailable

10

HOSE (L860)

90445-20804-00

Unavailable

11

TUBE,2

6EX-U773E-00-00

Unavailable

12

HOSE (L500)

90445-20800-00

Unavailable

13

TUBE

6EX-U773D-00-00

Unavailable

14

CLIP

90467-18804-00

Unavailable

15

JOINT, HOSE

68N-5112T-00-00

Unavailable

16

STERN EYE

F2N-U1628-02-00

Unavailable

17

NUT, NYLON (6J8)

95780-08300-00

Unavailable

18

NUT, NYLON (6J8)

95780-08300-00

Unavailable

19

PLATE A

GP7-U4953-10-00

Unavailable

20

PLATE A

GP7-U4953-10-00

Unavailable

21

PLATE A

GP7-U4953-10-00

Unavailable

22

PACKING

F1B-U1653-03-00

Unavailable

23

BOW EYE 1

F1K-61624-00-00

Unavailable

24

NUT.HEX.(COARS)

99780-12600-00

Unavailable

25

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

26

WASHER

F0X-61637-00-00

Unavailable

27

NUT

F0X-61652-01-00

Unavailable

28

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

Unavailable

29

STABILIZER LH

F1S-U883N-01-00

Unavailable

30

STABILIZER RH

F1S-U883P-01-00

Unavailable

31

BRACKET,STABILIZER

F1X-U883T-02-00

Unavailable

32

BOLT,WASHER BASED

90105-088F9-00

Unavailable

33

BOLT,WASHER BASED

90105-088F9-00

Unavailable

34

SPACER

F2N-U8169-10-00

Unavailable

35

SPACER

F2N-U8169-10-00

Unavailable

36

DRAIN PLUG ASSY

F1S-U2280-02-00

Unavailable

37

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

38

SCREW, PAN HEAD

9788R-05025-00

Unavailable

39

WASHER

9299R-05200-00

Unavailable

40

WASHER

9299R-05200-00

Unavailable

41

NUT, FLANGE

9572R-05300-00

Unavailable

42

NUT, FLANGE

9572R-05300-00

Unavailable

43

BRACKET

F1K-U826C-03-00

Unavailable

44

RIVET (EU0)

90267-48938-00

Unavailable

45

BRACKET 2

F1W-U8572-01-00

Unavailable

46

NUT, NYLON (6J8)

95780-08300-00

Unavailable

47

WASHER

9299R-08200-00

Unavailable

48

CLAMP

90464-32801-00

Unavailable

49

LADDER, STEP ASSY

F2X-U278A-00-00

Unavailable

50

. SLEEVE 1

F1W-U771H-00-00

Unavailable

51

. INNER, COVER SIDE 1

F2C-U377H-00-00

Unavailable

52

. PIN

F2C-U1314-00-00

Unavailable

53

BRACKET, LADDER LH

F2S-U278F-01-00

Unavailable

54

PACKING, BRKT. 1

F2S-U278H-01-00

Unavailable

55

BOLT, WITH WASHER

90119-08844-00

Unavailable

56

BOLT, WITH WASHER

90119-08844-00

Unavailable
