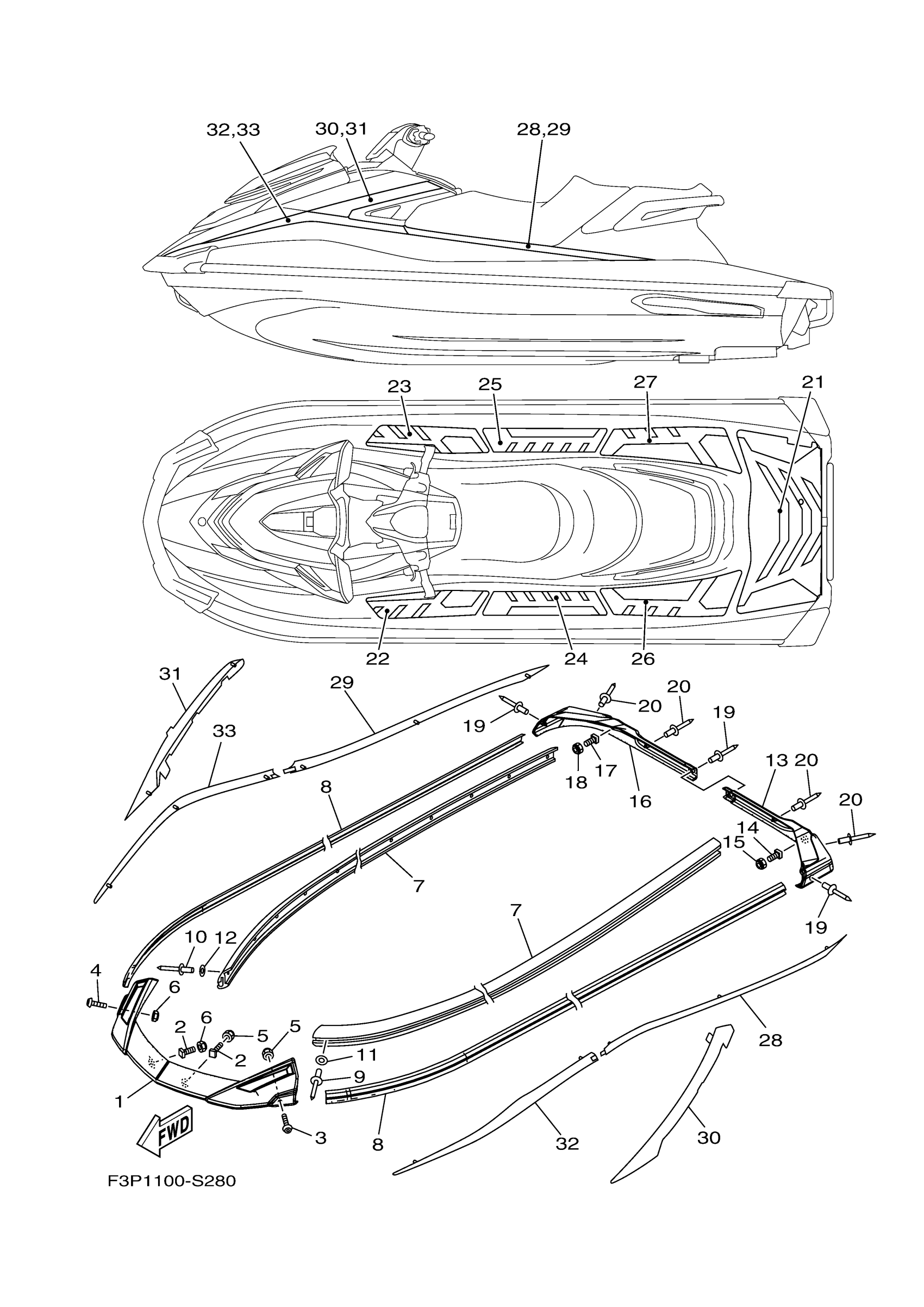

Yamaha GP1800T (GP1800) F3P3 2018 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW (PURW)

F2X-U2511-20-00

$38.05

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD

90110-06191-00

$3.21

4

BOLT, HEXAGON SOCKET HEAD

90110-06191-00

$3.21

5

NUT, LOCK

F2N-U142L-00-00

$1.00

6

NUT, LOCK

F2N-U142L-00-00

$1.00

7

GUNWALE, SIDE (PURW)

F2X-U2512-20-00

$54.25

8

INNER,GUNWALE (YB)

F2X-U2519-10-00

$15.66

8

INNER,GUNWALE (DPBSE)

F2X-U2519-A0-00

$23.12

9

RIVET, BLIND

90267-489U8-00

$1.37

10

RIVET, BLIND

90267-489U8-00

$1.37

11

WASHER

9299R-05200-00

$4.60

12

WASHER

9299R-05200-00

$4.60

13

GUNWALE, STERN 1 (PURW)

F2X-U251D-20-00

$23.87

14

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

15

NUT, LOCK

F2N-U142L-00-00

$1.00

16

GUNWALE, STERN 2 (PURW)

F2X-U251E-20-00

$23.87

17

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

18

NUT, LOCK

F2N-U142L-00-00

$1.00

19

RIVET, BLIND

90267-48825-00

$2.16

20

RIVET, BLIND

90267-48825-00

$2.16

21

MAT, UPPER

F3P-U3581-00-00

$83.57

22

MAT, STEP 1

F3P-U351H-00-00

$38.79

23

MAT, STEP 2

F3P-U351J-00-00

$38.79

24

MAT, STEP 3

F3P-U351K-00-00

$49.24

25

MAT, STEP 4

F3P-U351M-00-00

$49.24

26

MAT, STEP 5

F3P-U351N-00-00

$50.73

27

MAT, STEP 6

F3P-U351P-00-00

$50.73

28

ORNAMENT, STERN LH (YB)

F2X-U89A8-00-00

$71.75

28

ORNAMENT, STERN LH (PURW)

F2X-U89A8-50-00

$29.09

29

ORNAMENT, STERN RH (YB)

F2X-U89A9-00-00

$27.60

29

ORNAMENT, STERN RH (PURW)

F2X-U89A9-50-00

$29.09

30

ORNAMENT, MIDDLE LH (YB)

F2X-U89AA-00-00

$12.67

30

ORNAMENT, MIDDLE LH (PURW)

F2X-U89AA-50-00

$119.39

31

ORNAMENT, MIDDLE RH (YB)

F2X-U89AB-00-00

$12.40

31

ORNAMENT, MIDDLE RH (PURW)

F2X-U89AB-50-00

$119.39

32

ORNAMENT, BOW LH (YB)

F2X-U89AC-00-00

$25.36

32

ORNAMENT, BOW LH (PURW)

F2X-U89AC-50-00

$61.18

33

ORNAMENT, BOW RH (YB)

F2X-U89AD-00-00

$44.98

33

ORNAMENT, BOW RH (PURW)

F2X-U89AD-50-00

$62.01
