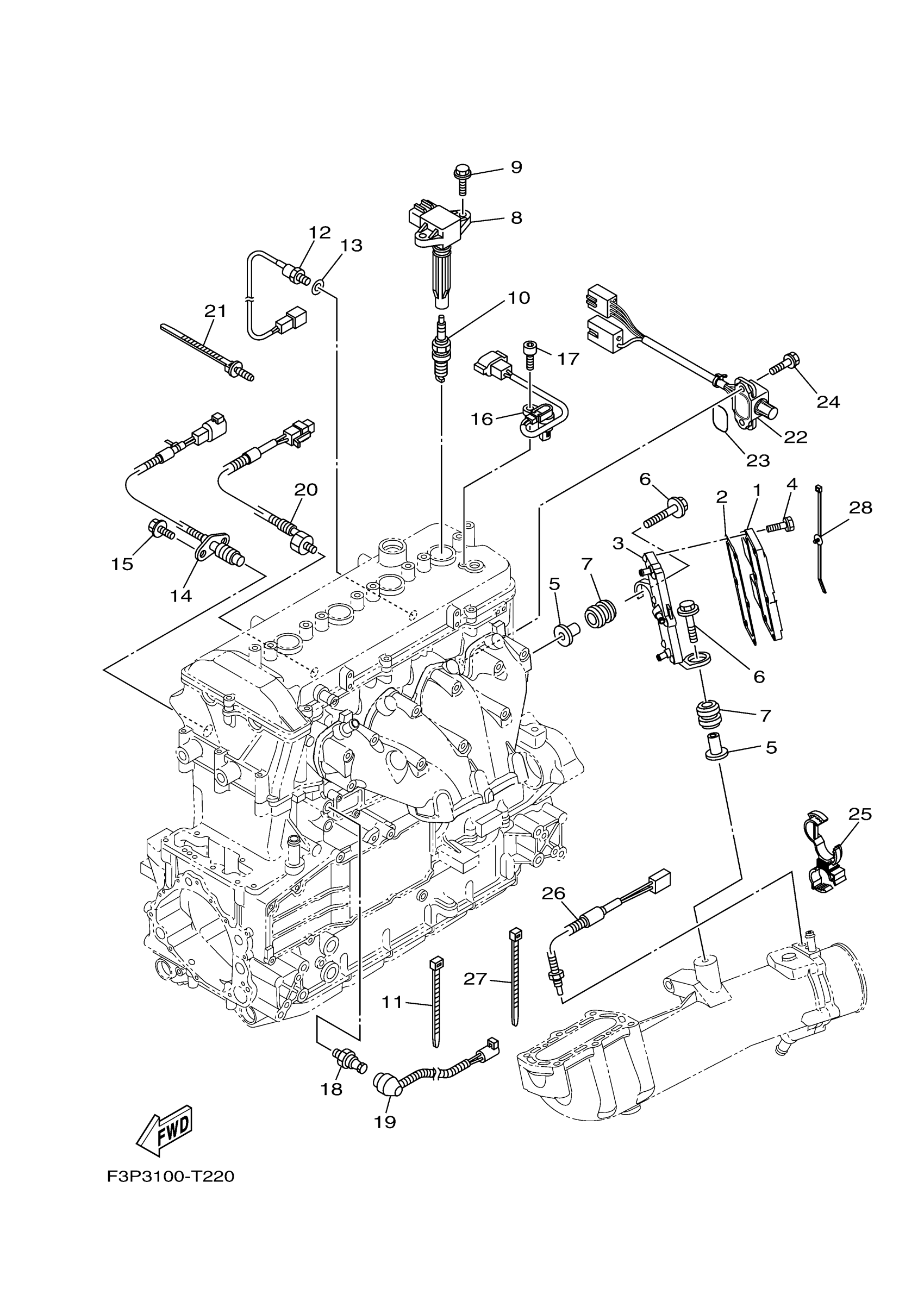

Yamaha GP1800T (GP1800) F3P3 2018 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

6EK-81960-10-00

Unavailable

2

PLATE, RECTIFIER FITTING

6ET-81975-01-00

Unavailable

3

COVER, RECTIFIER

6ET-81972-00-00

Unavailable

4

BOLT, WITH WASHER

90119-06MA4-00

Unavailable

5

COLLAR

90387-08M37-00

Unavailable

6

BOLT, WITH WASHER

90119-08187-00

Unavailable

7

GROMMET

90480-22M15-00

Unavailable

8

IGNITION COIL ASSY

6S5-82310-10-00

$403.99

9

BOLT,FLANGE (EW2)

90105-06903-00

$9.49

10

PLUG, SPARK (NGK LFR7A)

LFR-7A000-00-00

Unavailable

11

CLAMP

90465-13M18-00

Unavailable

12

THERMOSENSOR ASSY

61A-85790-01-00

Unavailable

13

WASHER, PLATE

92990-10600-00

Unavailable

14

THERMO SWITCH ASSY

6CR-82560-00-00

Unavailable

15

BOLT, HEXAGON W/W DEEP RECESS

97E95-06516-00

Unavailable

16

SENSOR, CAM POSITION

60E-85896-02-00

Unavailable

17

BOLT,SOCKET

91380-06016-00

Unavailable

18

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

Unavailable

19

LEAD WIRE ASSY

6S5-81315-01-00

Unavailable

20

SENSOR, KNOCK

6AN-85780-01-00

Unavailable

21

CLAMP

90464-20005-00

Unavailable

22

EARTH PLATE COMP.

6CS-8273J-11-00

Unavailable

23

O-RING (341)

93210-32172-00

Unavailable

24

BOLT, WITH WASHER

90119-06MA3-00

Unavailable

25

CLAMP

90464-20008-00

Unavailable

26

THERMOSENSOR ASSY

6AA-85790-00-00

Unavailable

27

CLAMP

90464-20005-00

Unavailable

28

CLAMP

90464-31002-00

Unavailable
