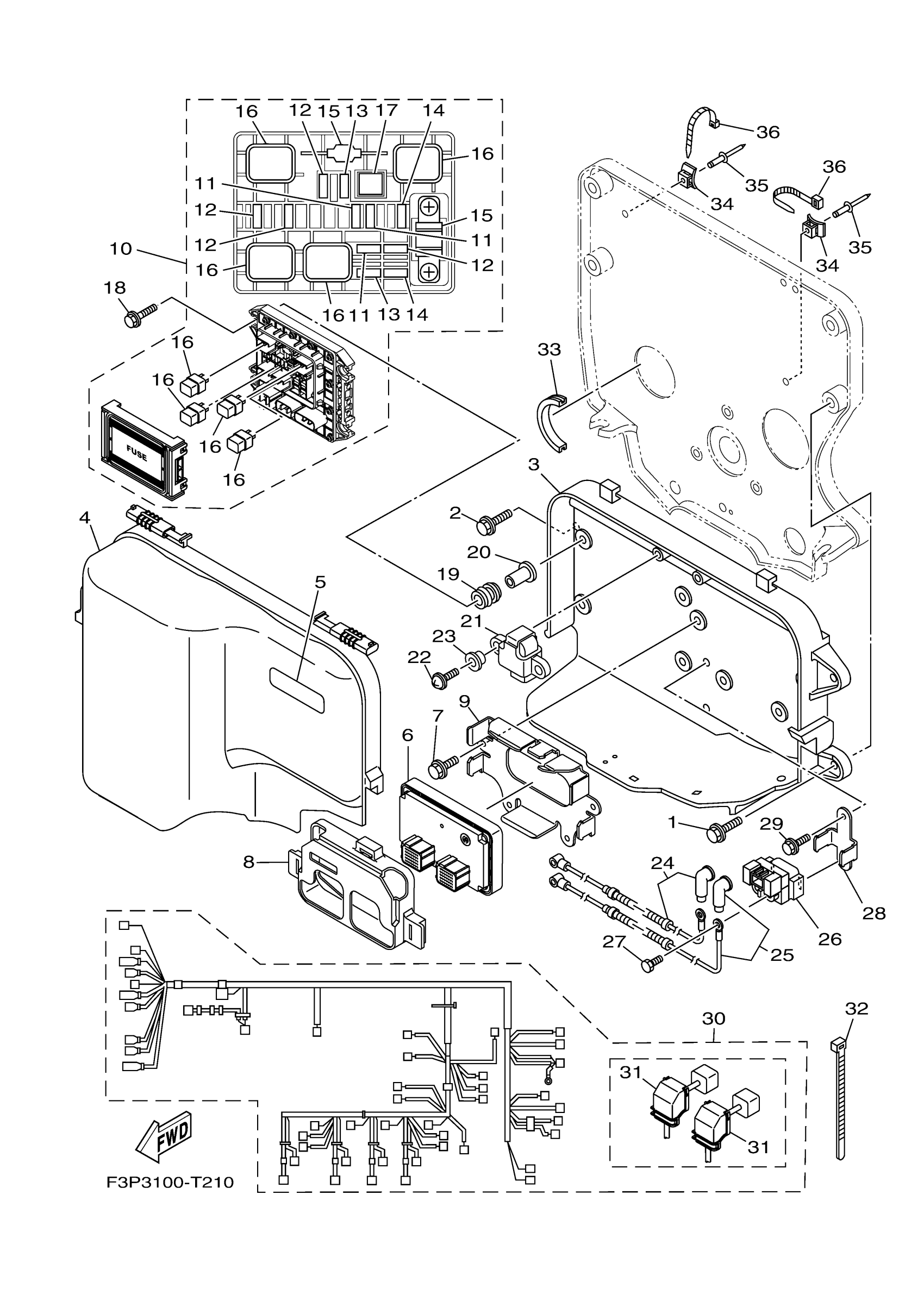

Yamaha GP1800T (GP1800) F3P3 2018 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-089UT-00

$3.16

2

BOLT, WITH WASHER

90119-089UT-00

$3.16

3

PLATE

6CS-81845-11-00

$87.86

4

COVER

6S5-81942-21-00

$87.47

5

LABEL, CAUTION 7

60E-83627-00-00

$4.55

6

ENGINE CONTROL UNIT ASSY

6DH-8591A-20-00

$2,028.77

7

BOLT, FLANGE

95814-06012-00

$2.13

8

GROMMET, ECU

6EY-8591S-00-00

$18.52

9

BRACKET

6ET-81948-00-00

$27.26

10

FUSE BOX ASSY

6EX-82170-02-00

$195.31

11

. FUSE (3A)

67F-82151-30-00

$4.69

12

. FUSE (10A)

67F-82151-40-00

$6.07

13

FUSE

5JJ-82151-20-00

$5.98

14

FUSE

5JJ-82151-60-00

$5.98

15

. FUSE (50A)

6EX-82151-00-00

$3.64

16

. RELAY ASSY

6EX-8195A-00-00

$15.55

17

. PULLER, FUSE

6EX-2812A-00-00

$1.36

18

BOLT, WITH WASHER

90119-06311-00

$1.58

19

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

20

. COLLAR

90387-06119-00

$4.37

21

SENSOR, LEAN ANGLE

6ET-82576-00-00

$50.01

22

SCREW, TAPPING

97780-60025-00

$5.45

23

COLLAR

90387-06M05-00

$6.45

24

WIRE, PLUS LEAD

6JP-82115-00-00

$47.99

25

WIRE, LEAD

6CS-82117-00-00

$63.65

26

STARTER RELAY ASSY (2768102-A)

1B7-81940-00-00

Unavailable

27

BOLT, HEXAGON W/W DEEP RECESS

97E95-06612-00

$1.36

28

STAY, RELAY

6CS-81953-00-00

$5.45

29

BOLT, FLANGE

95814-06012-00

$2.13

30

WIRE HARNESS ASSY 1

6DH-8259L-10-00

$1,342.41

31

. COVER, CONNECTOR

6EM-82599-00-00

$6.36

32

CLAMP

90465-14M66-00

Unavailable

33

TRIM, 1

F1S-U828H-01-00

$6.52

34

BASE, CLAMP

F1W-U828M-00-00

$1.23

35

RIVET, BLIND

90267-48802-00

$1.98

36

CLAMP

90464-32801-00

$1.23
