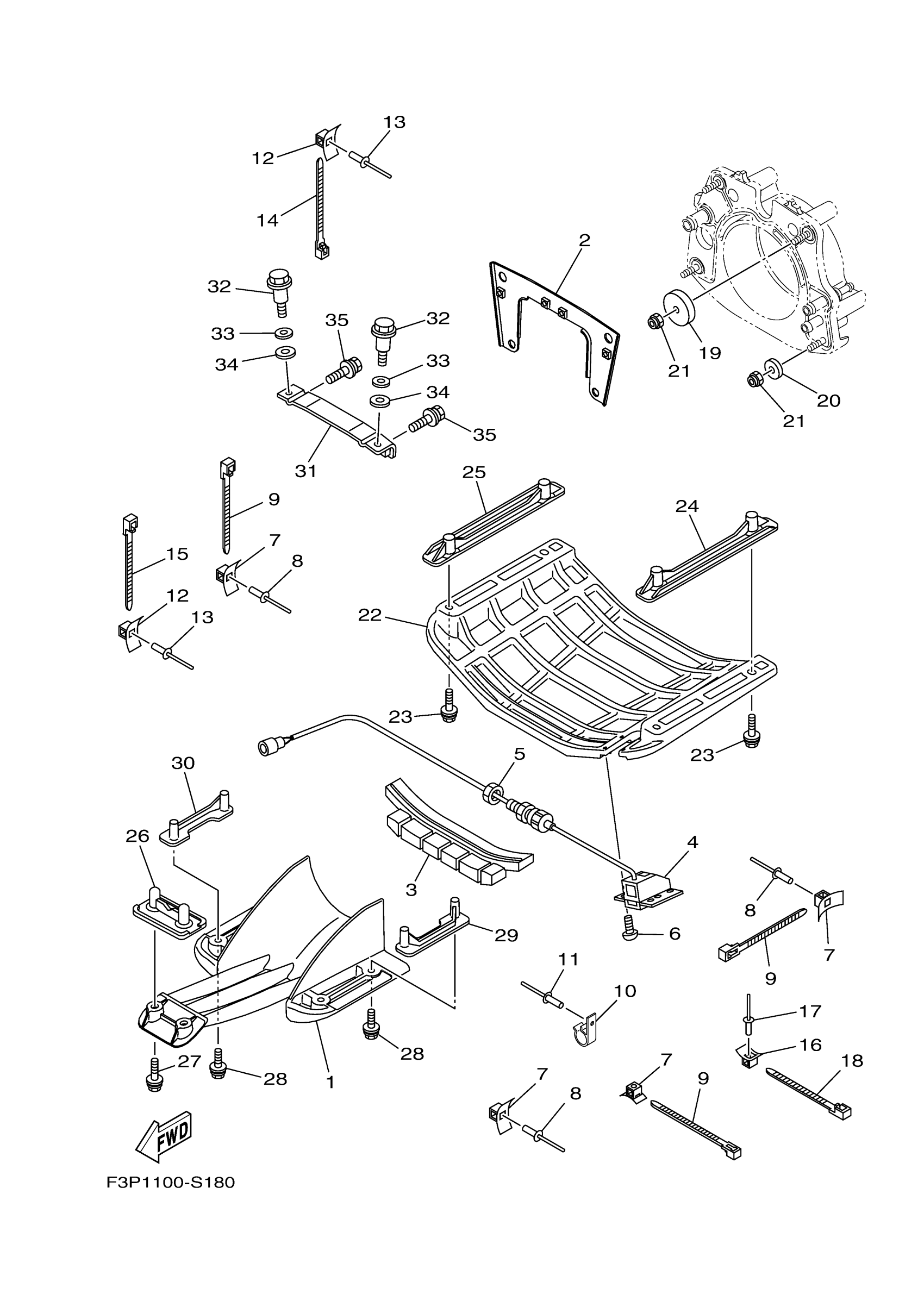

Yamaha GP1800S (GP1800) F3P1 2017 JET UNIT 4 Diagram

#

Description
Price

1

SCREEN, INTAKE

6EX-R1333-00-00

$76.10

2

BRACKET 1

6EX-R1341-00-00

$14.91

3

SPACER

F2X-U72C0-00-00

$15.79

4

SENSOR SPEED

F1S-U8K31-03-00

$147.92

5

NUT

F2C-U151S-00-00

$1.57

6

SCREW, ROUND HEAD

90150-05807-00

$0.86

7

BASE, CLAMP

F1W-U828M-00-00

$1.29

8

RIVET, BLIND

90267-489U6-00

Unavailable

9

CLAMP

90464-32801-00

$1.29

10

CLAMP

F3J-U8368-01-00

$5.75

11

RIVET, BLIND

90267-409U5-00

Unavailable

12

BASE, CLAMP

F1W-U828M-00-00

$1.29

13

RIVET, BLIND

90267-489U6-00

Unavailable

14

CLAMP

90464-32801-00

$1.29

15

BAND

90601-200U2-00

$3.29

16

BASE, CLAMP

F1W-U828M-00-00

$1.29

17

RIVET, BLIND

90267-489U6-00

Unavailable

18

BAND

90601-200U2-00

$3.29

19

WASHER

F1S-U725E-01-00

$8.61

20

WASHER, PLATE

90201-10801-00

$3.65

21

NUT, NYLON

9572R-10300-00

$3.52

22

PLATE 2

F2W-U273B-00-00

Unavailable

23

BOLT, WITH WASHER

90119-08829-00

$4.09

24

BRACKET 2

F2X-U8572-00-00

$13.63

25

BRACKET 2

F2X-U8572-00-00

$13.63

26

BRACKET, 3

F2S-U8577-00-00

$15.79

27

BOLT, WITH WASHER

90119-08829-00

$4.09

28

BOLT, WITH WASHER

90119-08829-00

$4.09

29

BRACKET 1

F2X-U8571-00-00

$13.63

30

BRACKET 1

F2X-U8571-00-00

$13.63

31

BRACKET

F2C-U7557-01-00

$29.84

32

BOLT

90109-08043-00

$4.03

33

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

34

GASKET

90430-12002-00

$1.72

35

BOLT, WITH WASHER

90119-08800-00

$4.31
