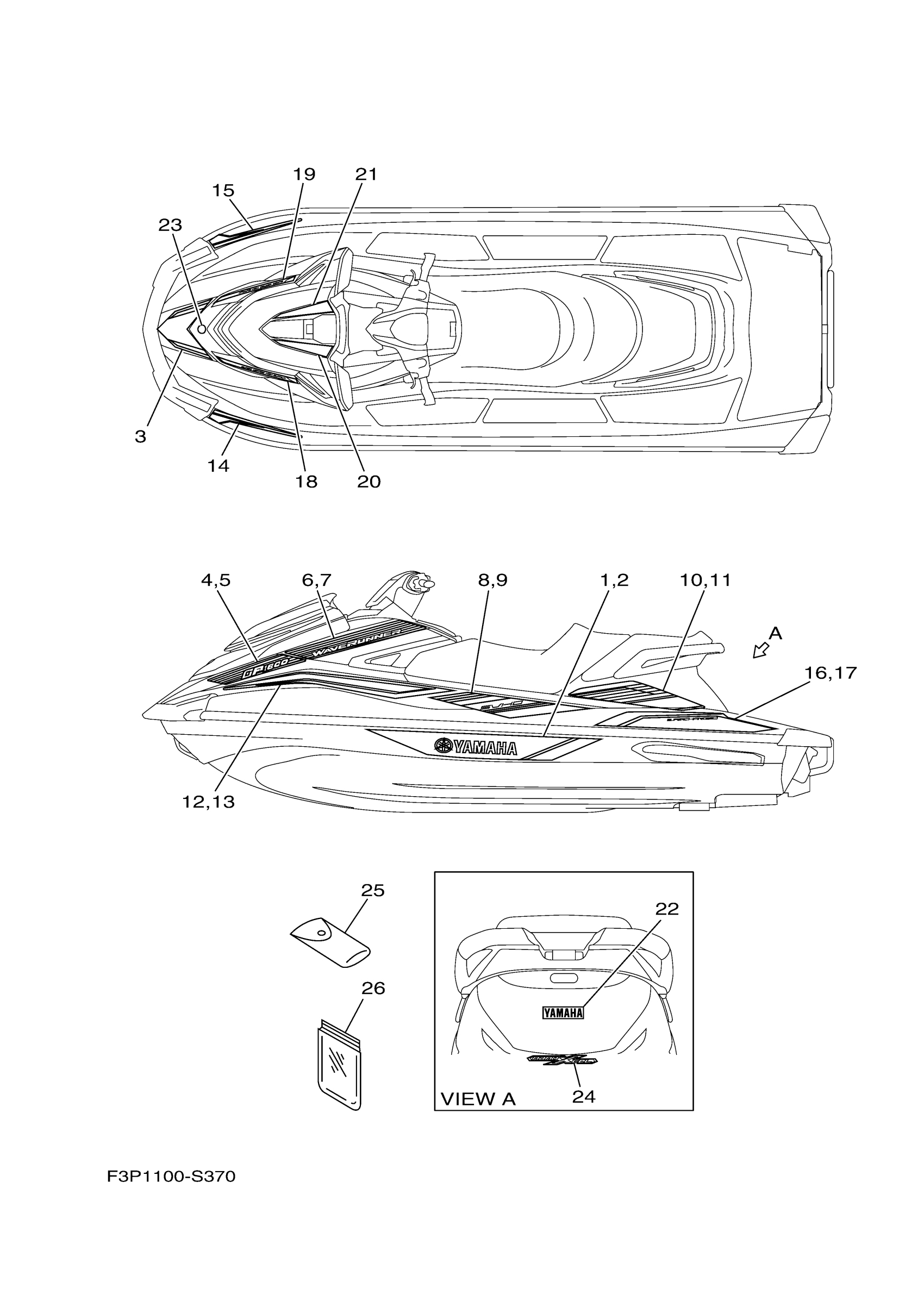

Yamaha GP1800S (GP1800) F3P1 2017 GRAPHICS Diagram
#
1
GRAPHIC 1 (LH)
F3P-U417B-00-00
Unavailable
1
GRAPHIC 1 (LH)
F3P-U417B-10-00
Unavailable
2
GRAPHIC 2 (RH)
F3P-U417C-00-00
Unavailable
2
GRAPHIC 2 (RH)
F3P-U417C-10-00
Unavailable
3
GRAPHIC 3
F3P-U417D-01-00
Unavailable
3
GRAPHIC 3
F3P-U417D-11-00
Unavailable
4
GRAPHIC 4 (LH)
F3P-U417E-00-00
Unavailable
4
GRAPHIC 4 (LH)
F3P-U417E-10-00
Unavailable
5
GRAPHIC 5 (RH)
F3P-U417F-00-00
Unavailable
5
GRAPHIC 5 (RH)
F3P-U417F-10-00
Unavailable
6
GRAPHIC 6 (LH)
F3P-U417G-00-00
Unavailable
6
GRAPHIC 6 (LH)
F3P-U417G-10-00
Unavailable
7
GRAPHIC 7 (RH)
F3P-U417H-00-00
Unavailable
7
GRAPHIC 7 (RH)
F3P-U417H-10-00
Unavailable
8
GRAPHIC 8 (LH)
F3P-U417J-00-00
Unavailable
8
GRAPHIC 8 (LH)
F3P-U417J-10-00
Unavailable
9
GRAPHIC 9 (RH)
F3P-U417K-00-00
Unavailable
9
GRAPHIC 9 (RH)
F3P-U417K-10-00
Unavailable
10
GRAPHIC B (LH)
F3P-U417L-00-00
Unavailable
10
GRAPHIC B (LH)
F3P-U417L-10-00
Unavailable
11
GRAPHIC C (RH)
F3P-U417M-00-00
Unavailable
11
GRAPHIC C (RH)
F3P-U417M-10-00
Unavailable
12
GRAPHIC D (LH)
F3P-U417N-00-00
Unavailable
12
GRAPHIC D (LH)
F3P-U417N-10-00
Unavailable
13
GRAPHIC E (RH)
F3P-U417P-00-00
Unavailable
13
GRAPHIC E (RH)
F3P-U417P-10-00
Unavailable
14
GRAPHIC F (LH)
F3P-U417R-00-00
Unavailable
14
GRAPHIC F (LH)
F3P-U417R-10-00
Unavailable
15
GRAPHIC G (RH)
F3P-U417S-00-00
Unavailable
15
GRAPHIC G (RH)
F3P-U417S-10-00
Unavailable
16
GRAPHIC H (LH)
F3P-U417T-00-00
Unavailable
16
GRAPHIC H (LH)
F3P-U417T-10-00
Unavailable
17
GRAPHIC J (RH)
F3P-U417U-00-00
Unavailable
17
GRAPHIC J (RH)
F3P-U417U-10-00
Unavailable
18
GRAPHIC K (LH)
F3P-U417V-00-00
Unavailable
18
GRAPHIC K (LH)
F3P-U417V-10-00
Unavailable
19
GRAPHIC L (RH)
F3P-U417W-00-00
Unavailable
19
GRAPHIC L (RH)
F3P-U417W-10-00
Unavailable
20
GRAPHIC M (LH)
F3P-U417X-00-00
Unavailable
20
GRAPHIC M (LH)
F3P-U417X-10-00
Unavailable
21
GRAPHIC N (RH)
F3P-U417Y-00-00
Unavailable
21
GRAPHIC N (RH)
F3P-U417Y-10-00
Unavailable
22
MARK, YAMAHA A
F3K-U4114-50-00
Unavailable
22
MARK, YAMAHA A
F3L-U4114-10-00
Unavailable
23
EMBLEM, TUNING FORK
F2S-6411H-00-00
Unavailable
24
EMBLEM A
F3J-U4121-00-00
Unavailable
25
TOOL SET
F1B-65986-13-00
Unavailable
26
BAG, VINYL
EU0-65901-03-00
Unavailable
