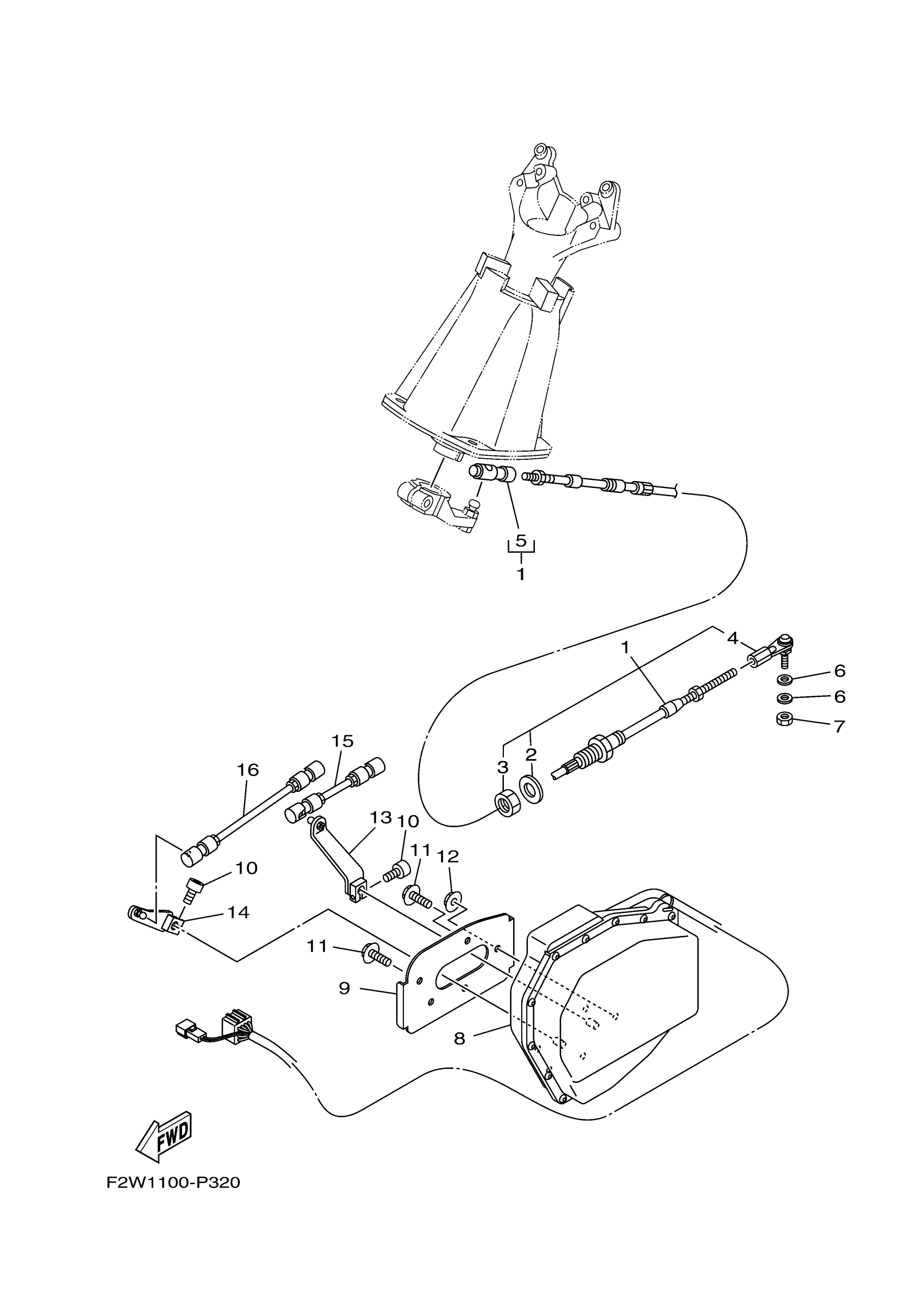

Yamaha GP1800S (GP1800) F3P1 2017 CONTROL CABLE Diagram

Description

Price

CABLE, STEERING

F3P-61481-02-00

Unavailable

. PACKING C

F1B-61438-00-00

$2.72

NUT

F1B-6151S-01-00

$14.31

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

. BALL JOINT ASSY

F2N-61460-00-00

$48.47

WASHER, PLATE

90201-06906-00

$2.80

NUT

9538R-06700-00

$1.01

MOTOR ASSY.

F2W-6140B-04-00

Unavailable

PLATE

F3Y-U8285-00-00

$15.14

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

BOLT, WITH WASHER

90119-08852-00

$3.79

NUT, NYLON (6J8)

95780-08300-00

$10.55

TRIM ARM ASSY

F3J-6150E-00-00

$78.77

SHIFT ARM ASSY

F3J-6150F-00-00

$68.17

ROD ASSY

F3J-6150A-00-00

$56.05

ROD ASSY 2

F3J-6150D-00-00

$38.52
