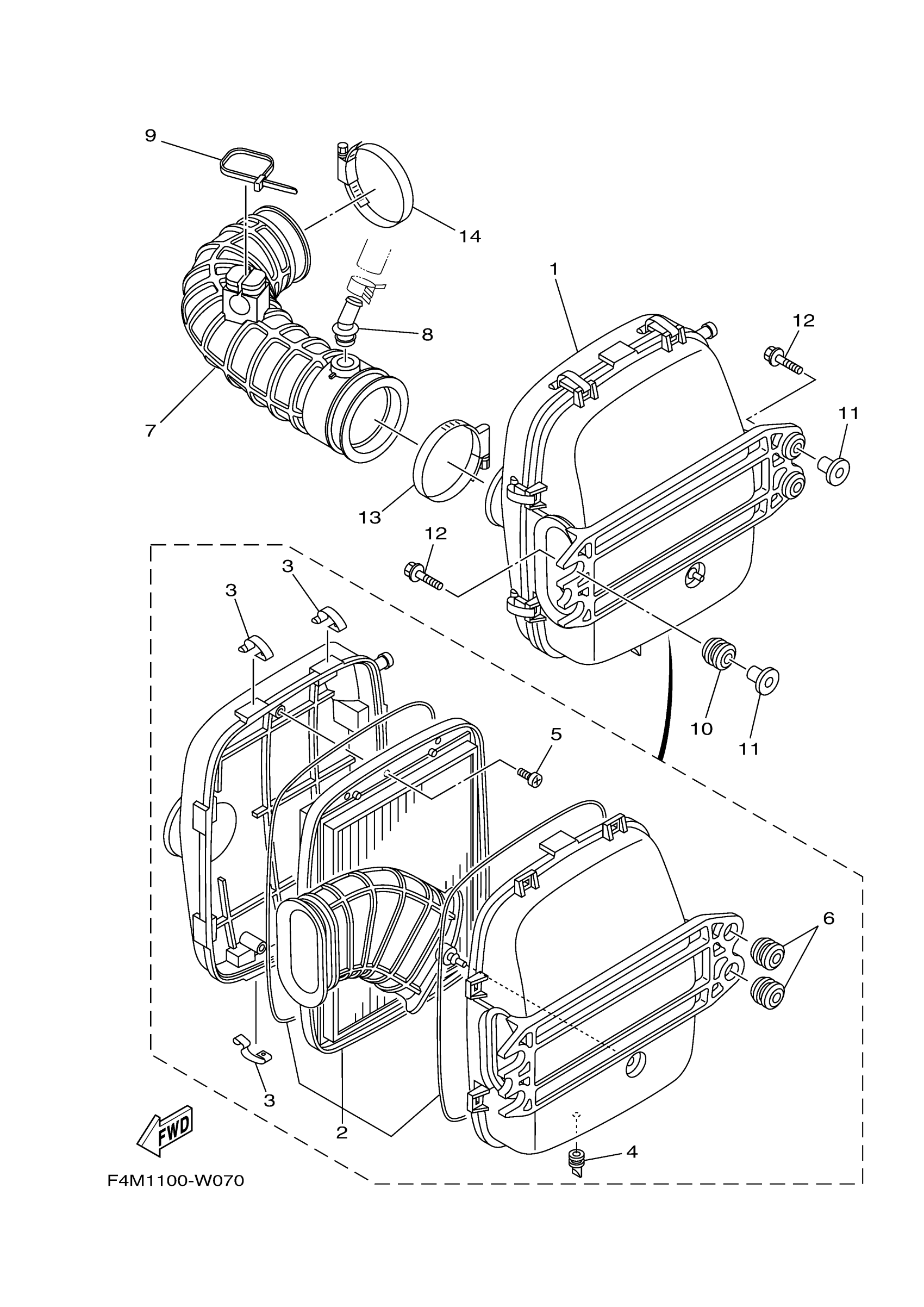

Yamaha GP1800DY (GP1800R HO_HO WITH AUDIO) F4M6 2023 INTAKE 2 Diagram

#

Description
Price

1

AIR CLEANER ASSY.

6S5-E4410-02-00

$174.23

2

ELEMENT, AIR CLEAN

6S5-E4451-01-00

$166.59

3

. HOOK

6S5-E4436-00-00

$3.79

4

. RUBBER, SEAL 2

6S5-G2717-00-00

$2.58

5

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

$2.05

6

. GROMMET

90480-22801-00

$2.73

7

PIPE

6BH-E4419-00-00

$48.47

8

CONNECTION

6BH-R1142-10-00

$2.50

9

CLAMP(JN6)

90464-40825-00

$1.63

10

GROMMET

90480-22M15-00

$10.18

11

COLLAR

90387-08M37-00

$9.81

12

BOLT, WITH WASHER

90119-08187-00

$3.17

13

HOSE CLAMP ASSY

90450-90002-00

$16.99

14

HOSE CLAMP ASSY

90450-90002-00

$16.99
