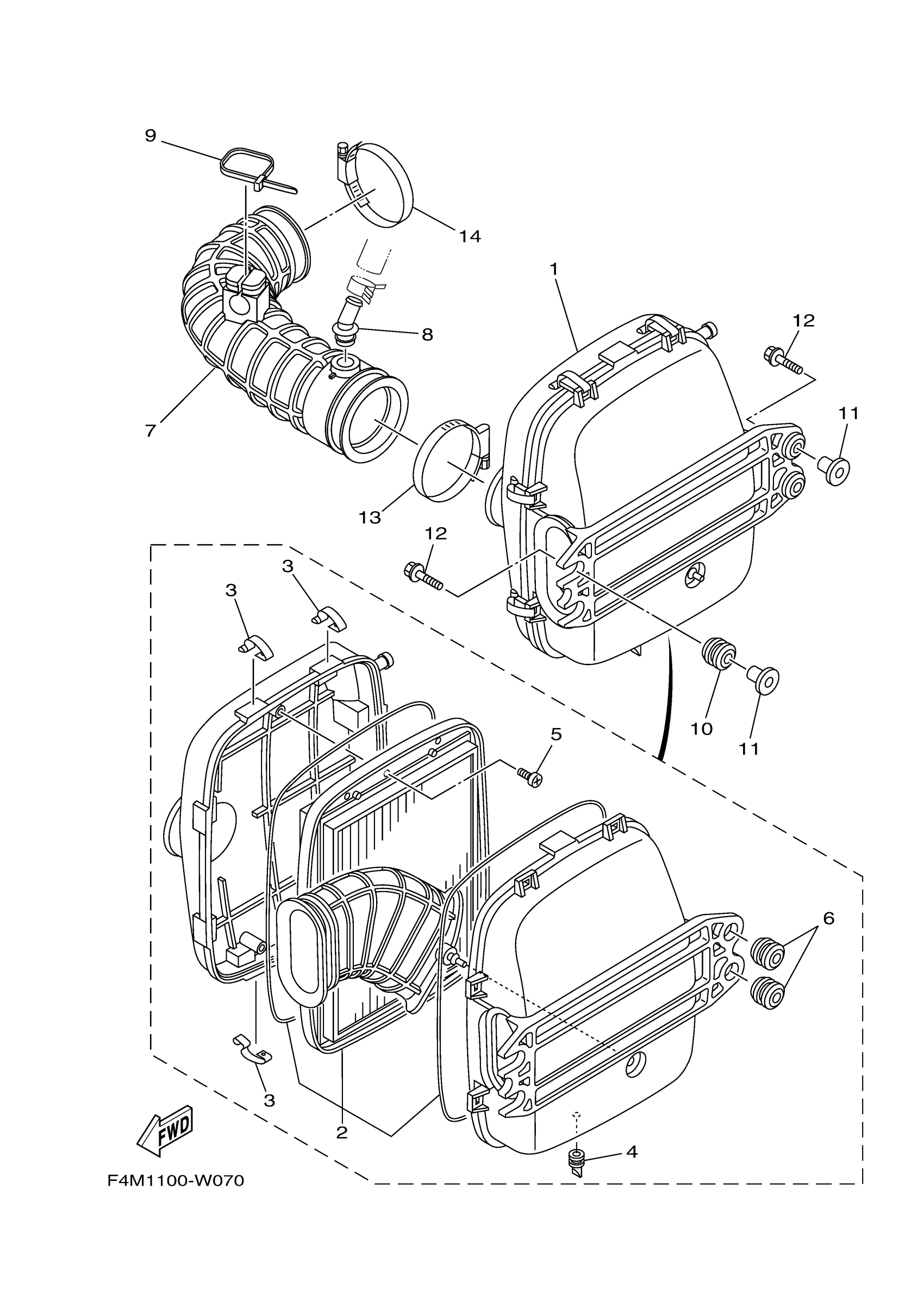

Yamaha GP1800DX (GP1800R HO_HO WITH AUDIO) F4M4 2022 INTAKE 2 Diagram

#

Description
Price

1

AIR CLEANER ASSY.

6S5-E4410-02-00

$171.63

2

ELEMENT, AIR CLEAN

6S5-E4451-01-00

$173.77

3

. HOOK

6S5-E4436-00-00

$4.01

4

. RUBBER, SEAL 2

6S5-G2717-00-00

$2.54

5

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

$2.05

6

. GROMMET

90480-22801-00

$2.69

7

PIPE

6BH-E4419-00-00

$47.75

8

CONNECTION

6BH-R1142-10-00

$2.46

9

CLAMP(JN6)

90464-40825-00

$1.63

10

GROMMET

90480-22M15-00

$11.01

11

COLLAR

90387-08M37-00

$10.28

12

BOLT, WITH WASHER

90119-08187-00

$3.02

13

HOSE CLAMP ASSY

90450-90002-00

$16.99

14

HOSE CLAMP ASSY

90450-90002-00

$16.99
